10-0705-20
EAN: 5904405920114

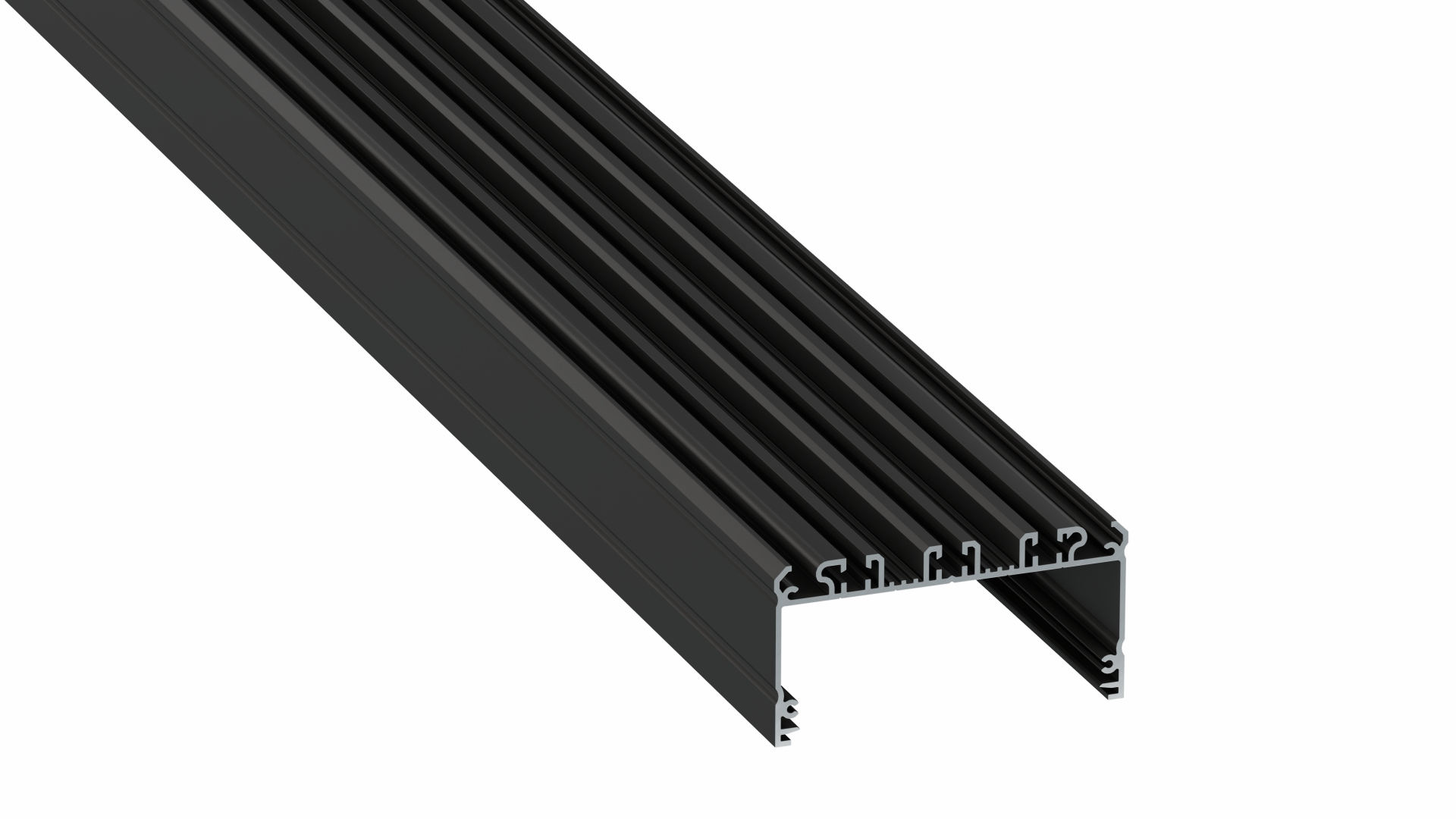

Lumines profile type LARGO lacquered black, 2,02 m
Your price:
Please contact your local distributor
| Stock status: |
app.layout.ui.on_request
|
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 2m |
| Color | Black (lacquered) |
| System | LARGO |
Lumines profile type LARGO surface.
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

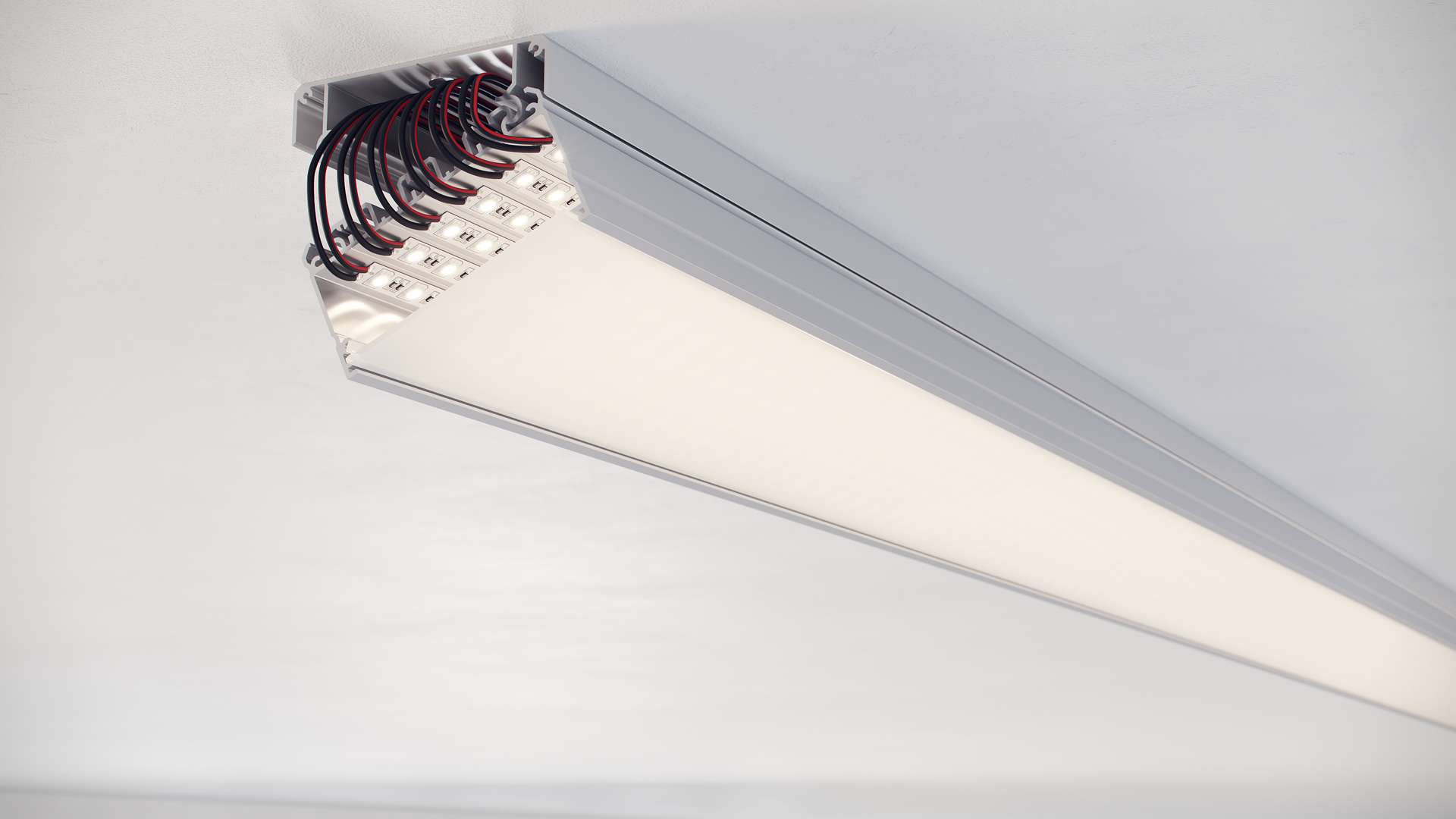

Aluminum profile LARGO Lumines is a surface profile, architectural - to build complex lighting systems, with the added possibility of using LED strips up to six. Designed for use in commercial and public buildings.
Color versions:
- profile silver anodized
- profile painted white (RAL9016)
- lacquered black (RAL9005 mat)
Mounting:
- LARGO mounting profiles M1 / M2 / M3 / M4
- slings (as hanging lights)
Accessories for aluminum profile LARGO Lumines
Diffuser (covers:
- Cover SUPERWIDE PMMA - milk, frozen, transparent, frost mleczny,
- Cover SUPERWIDE PLEXI - milky
(mounted on the top of the assembly)
PLUGS :
- aluminum, with or without the hole in three different colors (white, silver, black)
MOUNTING PROFILES :
- mounting profile LargoM1,
- mounting profile LargoM2,
- mounting profile LargoM3,
- mounting profile LargoM4
OPTIONAL ACCESSORIES :
- straight connector,
- the angle connector 90 °
- wishbone angled,
- the angle connector 120 °
- gland,
- conducting sling
Profile is available in standard lengths: 1000 mm, 2020 mm, 3000 mm.
Installation instructions for profile LARGO with a SUPER WIDE cover using mounting screws
End result of an assembly of profile LARGO with a SUPER WIDE cover using mounting screws
Assembly of profile LARGO system with SUPER WIDE cover using mounting profile LARGO M1
End result of assembly of profile LARGO system with SUPER WIDE cover using mounting profile LARGO M1
Assembly of LARGO profile with SUPER WIDE cover using mounting profile LARGO M2 for hiding the power supply inside
End result of assembly of LARGO profile with SUPER WIDE cover using mounting profile LARGO M2 for hiding the power supply inside
Assembly of LARGO profile system using profile connectors and mounting profile LARGO M1
Assembly scheme for elements of the lighting system using profile LARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end cap LARGO + M1 with hole, (3a), end cap LARGO + M1 without hole, (4) cable gland, (5a) right LARGO connector, (5b) left LARGO connector, (5c) connector LARGO M1, (6) LARGO M1 mounting profile
End result of assembly of profile LARGO with SUPER WIDE cover and mounting profile LARGO M3 with mounting springs
Assembly of LARGO profile with SUPER WIDE cover using mounting profile LARGO M4, inter--profile connector LARGO and assembly profile ROSET
Assemble scheme for elements of the lighting system in ceiling using profile LARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end cap LARGO with hole, (3a), end cap LARGO without hole, (4) inter-profile connector LARGO, (5) mounting profile LARGO M3, (6) end cap LARGO M3 with basic finish, (6a) end cap LARGO M3 with full finish, (7) mounting springs
Assemble scheme for elements of the lighting system in ceiling using profile LARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end cap LARGO with hole, (3a), end cap LARGO without hole, (4) inter- profile connector LARGO, (5) assembly profile ROSET, (6) mounting profile LARGO M4, (7) end cap LARGO M4 with basic finish, (7a) end cap LARGO M4 with full finish
