10-0435-20
EAN: 5904405926963

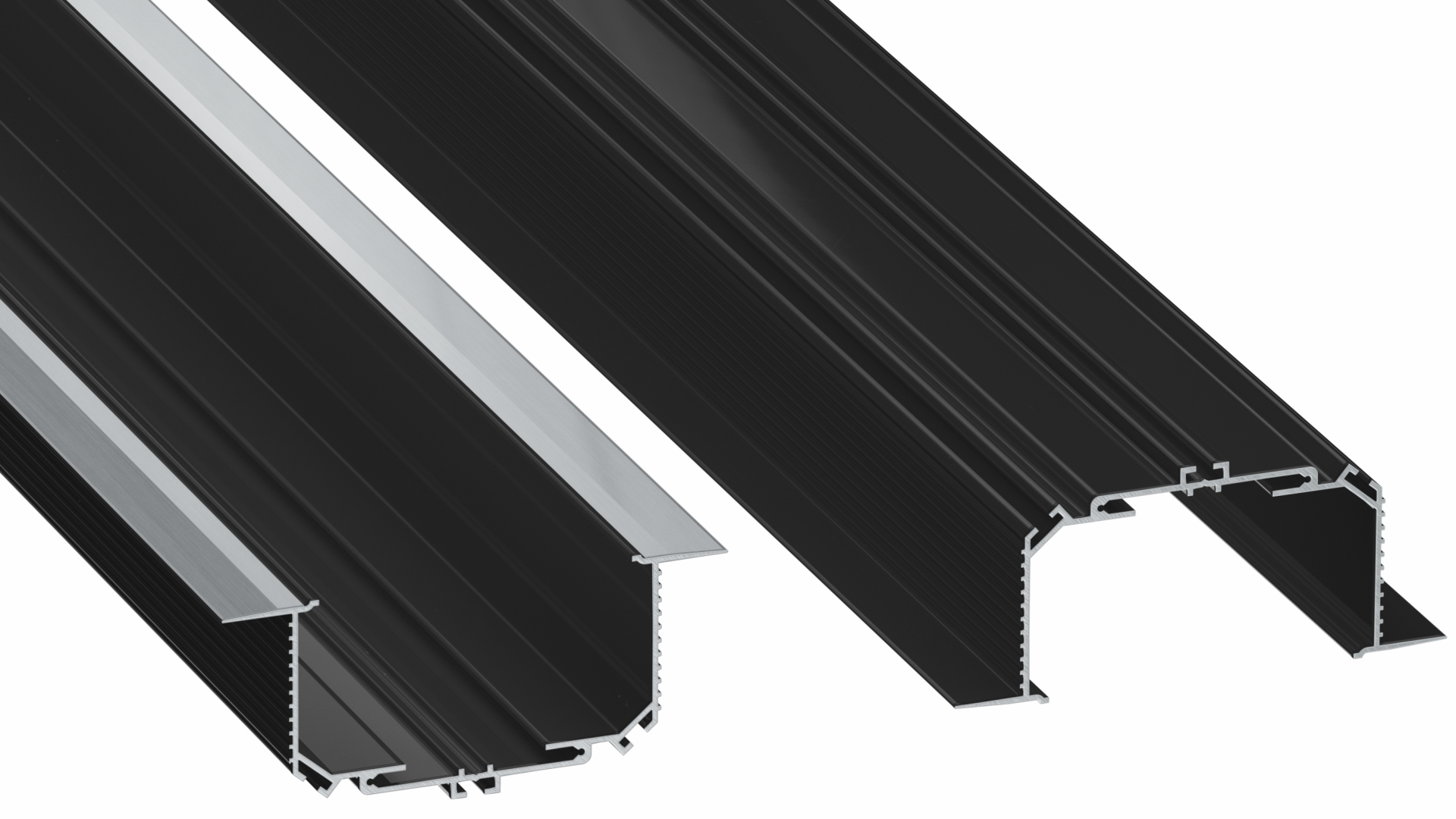

Lumines profile type LARGO M3 lacquered black, 2,02 m
Your price:
Please contact your local distributor
| Stock status: |
app.layout.ui.on_request
|
| Color | Black (lacquered) |
| System | LARGO, Largo M3 |
Lumines profile type LARGO M3 mounting.

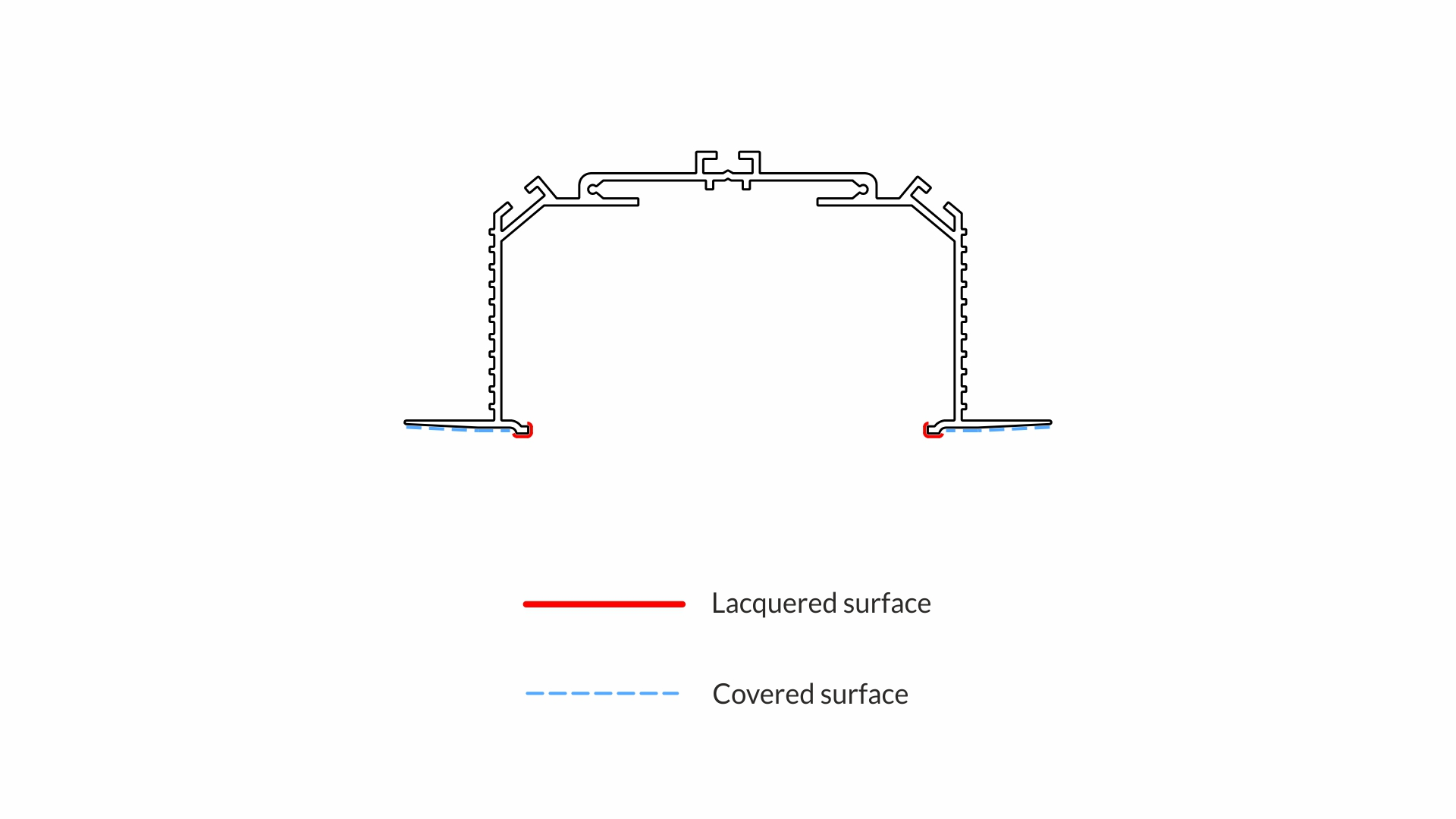

* The profile has no varnish in places intended for plastering. This ensures better adhesion to the mounted surface.
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
System
Product sold only as a complete set
Product description
Mounting profile Lumines LARGO M3 is one of the four mounting profiles Profile LARGO topcoat.
Profile features LARGO M3:
- using the LARGO inter-profile connector, the LARGO profile can be freely adjusted in the vertical plane,
- using the LARGO inter-profile connector, the LARGO profile can be directed at an angle.
different colors:
- profile silver anodized
- profile lacquered white (RAL9016)
- profile lacquered black (RAL9005 mat)
Method installation:
- by means of the spring assembly
Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.
| Mounting profile | LUMINES profile |
| Largo M3 | Largo, inLargo |

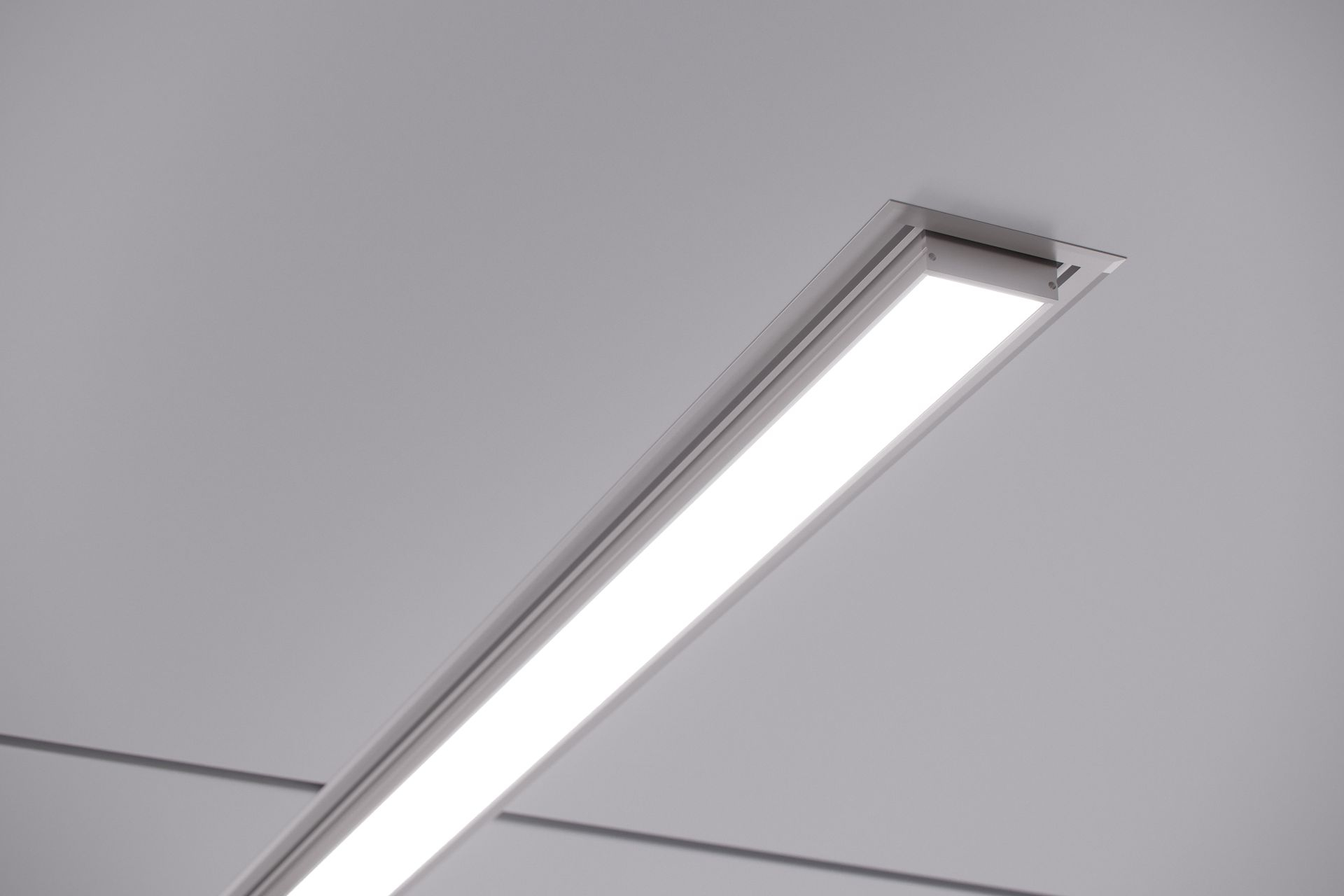

End result of assembly of profile LARGO with SUPER WIDE cover and mounting profile LARGO M3 with mounting springs
End result of assembly of profile inLARGO with SUPER WIDE cover, inter-profile connector LARGO, mounting profile LARGO M3 with mounting springs with partially plastered profile
Assemble scheme for elements of the lighting system in ceiling using profile LARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end cap LARGO with hole, (3a), end cap LARGO without hole, (4) inter-profile connector LARGO, (5) mounting profile LARGO M3, (6) end cap LARGO M3 with basic finish, (6a) end cap LARGO M3 with full finish, (7) mounting springs
Assemble scheme for elements of the lighting system in ceiling using profile inLARGO (1), SUPER WIDE cover, (2) LED strips, (3) end caps inLARGO with holes, (4) inter-profile connector LARGO, (5) mounting profile LARGO M3, (6) end cap LARGO M3 with basic finish, (6a) end cap LARGO M3 with full finish, (7) mounting springs
