10-0043-10 EAN: 5901854776422

Lumines profile type D anodized inox, 1 m

Your price: Please contact your local distributor
Stock status: a lot
Purpose Furniture
Type of assembly surface
Profile length 1m
Color Inox (anodized)
System D

LUMINES D surface mounted profile





Color
Inox (anodized)
Black (anodized)
White (lacquered)
Silver (anodized)
Raw
Available variants:

Purpose

Type of assembly

Profile length

System

Product description

Aluminum profile Lumines D to use surface - designed for mounting LED strips in hard to reach places. Due to its size, provides the basis for the maximum amount of light and the minimum size profile. Well suited for use as an illumination of decorative furniture makers and finishes interior

color varieties:
- Raw
- anodized silver
- anodized black
- anodized stainless steel,
- painted white (RAL9016)

Assembly:
- double-sided tape
- mounting brackets

Accessories:
- diffuser BASIC PMMA - transparent, frozen, milky, frosted, milky frosted, lens 15, lens 30, black
- diffuser BASIC PC - milk, frozen, transparent
  (mounted from push-up)
- diffuser HIGH PMMA - frozen frosted milky frosted

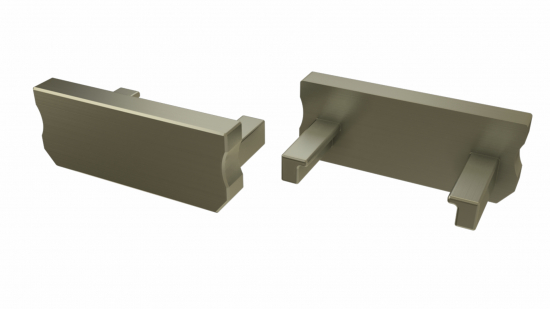

- dedicated aluminum caps for profiles with a BASIC cover in 3 color varieties (with a hole, without a hole)
- dedicated aluminum caps for profiles with a HIGH cover in 3 color varieties (with a hole, without a hole)
- dedicated ABS plastic caps for profiles with a BASIC cover in 5 color varieties (with a hole, without a hole)
- dedicated ABS plastic caps for profiles with a HIGH cover in 5 colors (with a hole, without a hole)
- mounting brackets for profiles with a BASIC lampshade and a HIGH lampshade in 3 colors - transparent, white, black
- hinge.

Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.

Installation instructions for profile D with a BASIC cover using (1) a double-sided tape, (2) a D MINI mounting clip and (3) a metal D mounting clip

The end result of installation of profile D with a BASIC cover using (1) a double-sided tape, (2) a D MINI mounting clip and (3) a metal D mounting clip



Installation instructions for profile D with a HIGH cover using (1) a double-sided tape, (2) a D HIGH mounting clip

The end result of installation of profile D with a HIGH cover using (1) a double-sided tape, (2) a D HIGH mounting clip



Connecting profiles D with a HIGH cover at 90°

Assembly of profile D with a BASIC cover with D MINI mounting clips



Schemat złożenia elementów systemu oświetleniowego z wykorzystaniem profilu D oraz (1) klosza BASIC, (2) taśmy LED, (3) zaślepki z otworem, (3a) zaślepki bez otworu, (4) wkrętu montażowego, (5) uchwytem montażowego D MINI

Assembly scheme for elements of the lighting system using (1) a BASIC cover, (2) a LED strip, (3) an end cap with hole, (3a) an end cap without hole, (4) a mounting screw, (5) with a D MINI mounting clip
