40-0001-11
EAN: 5904405969083

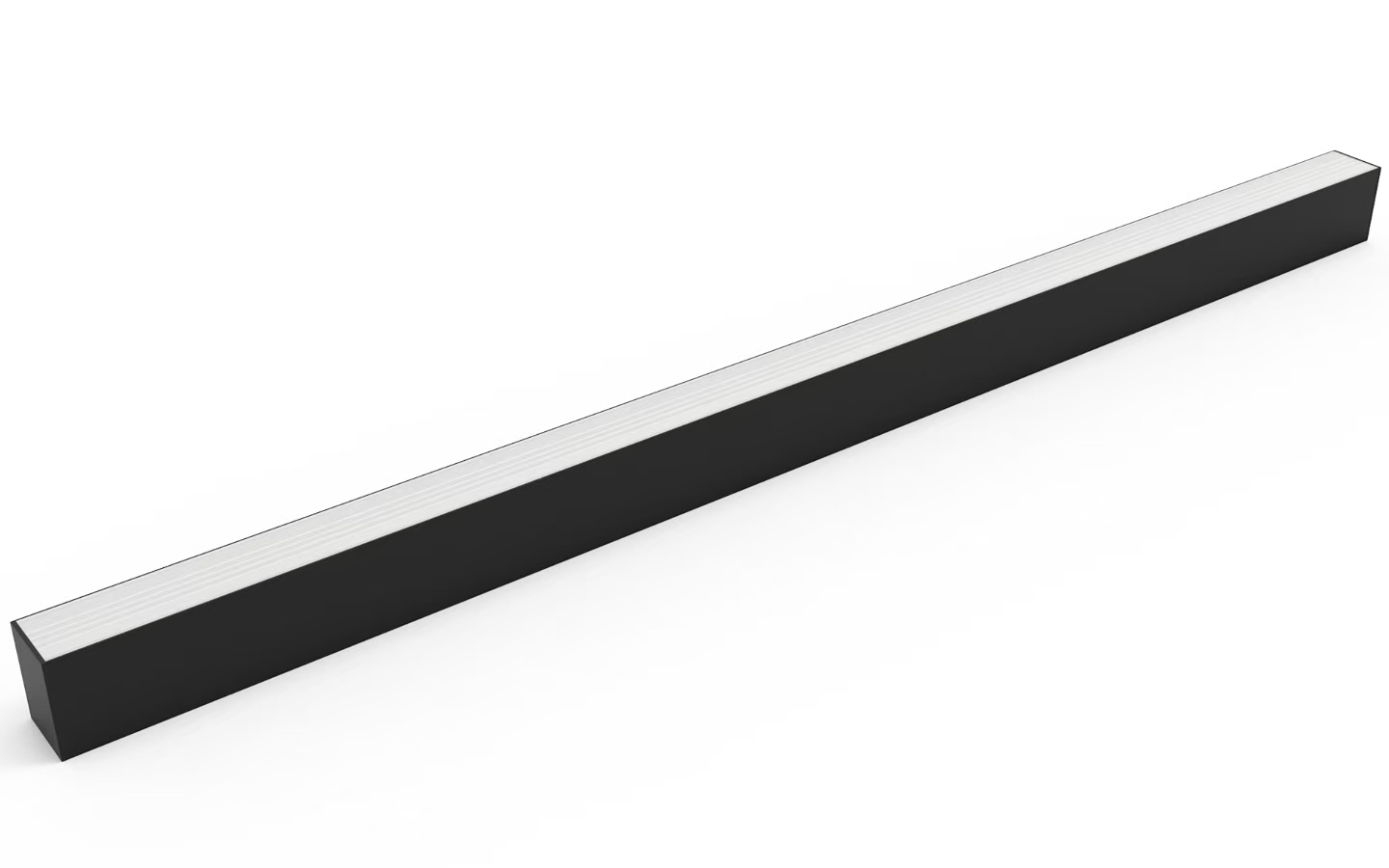

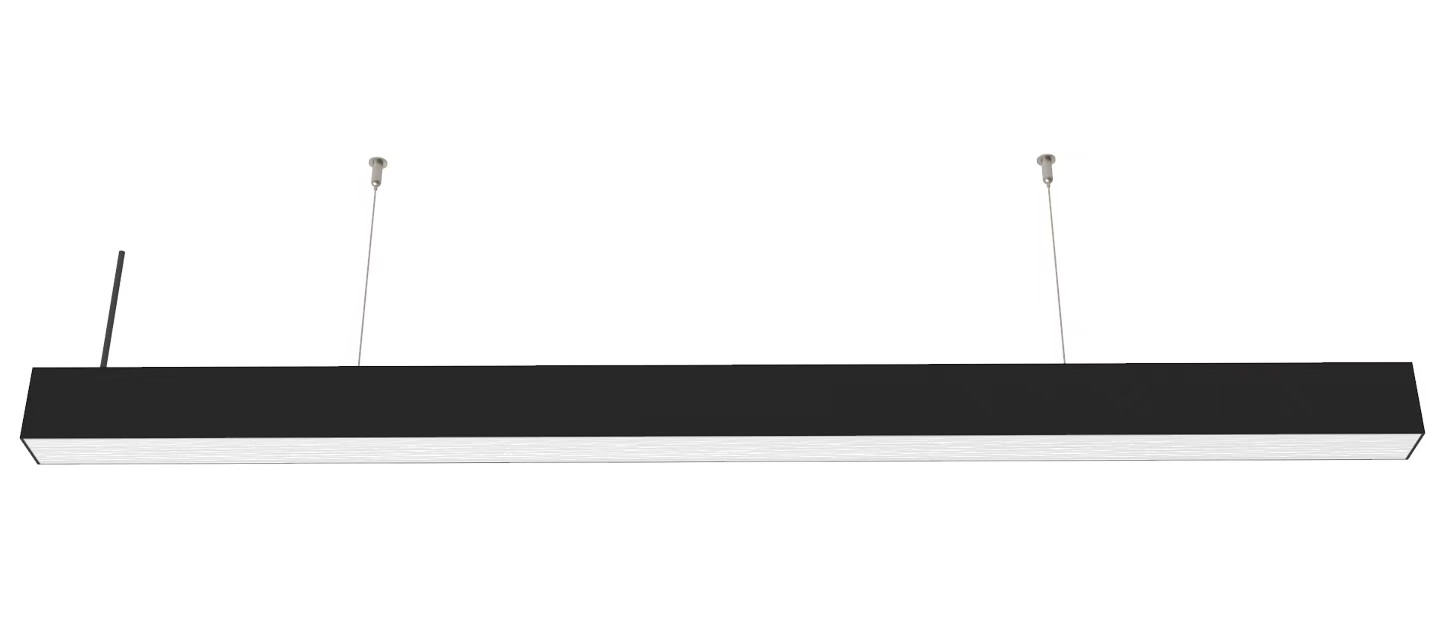

Linear LED light ALDA 120 cm 32 W 4000 K PC MPRM+
Your price:
Please contact your local distributor
| Stock status: | none |
| Input voltage | 220 - 240 V AC, 50/60 Hz |
| Power | 24 / 28 / 32 / 40 W |
| Total luminous flux (øuse 360°) | 2900 / 3500 / 4000 / 4700 lm |
| Lluminous efficacy | 125 lm/W |
| Colour temperature | 4000 K |
| CRI Ra | ≥ 80 |
| Beam angle | 110° |
| Dimensions | 1208 × 50 × 70 mm |
| Warranty | 5 years |
Available variants:
Input voltage
Power
Total luminous flux (øuse 360°)
Lluminous efficacy
Colour temperature
CRI Ra
Beam angle
Dimensions
Warranty
Producer: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
The ALDA linear LED luminaire has been designed to blend harmoniously into modern interiors where a clean line of light and minimalist design are a priority.
The fixture comes with a 5-year warranty, confirming its reliability and durability, which result from the use of high-quality components, including a power supply from the renowned brand Lifud.
ALDA has a built-in DIP-SWITCH that allows for the adjustment of luminous flux and power. This enables the optimal adjustment of lighting parameters to the needs of the illuminated space. Thanks to this, the luminaire can be used in various locations, ensuring design consistency.
A high luminous efficacy of up to 125 lm/W allows for efficient illumination of spaces with high brightness requirements while maintaining low energy consumption, which translates into lower operating costs.

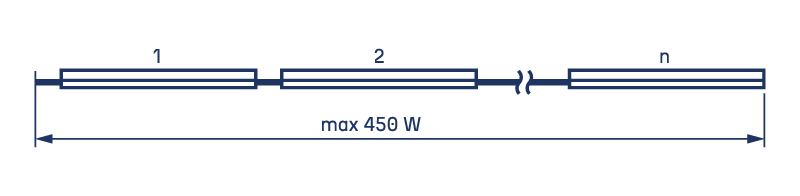

ALDA can be used as a single fixture, a suspended lamp, or in a modular linear system, where connecting segments allows for a total lighting power of up to 450 W. Depending on the set power, this enables the creation of a continuous line of light over 21 m long.

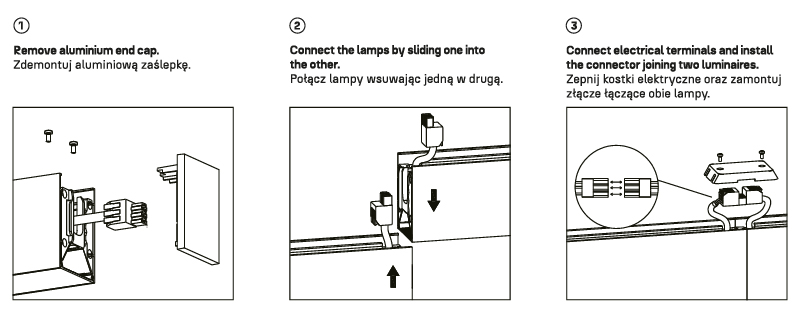

Tool-free connection, for seamless connection of lamps in a line up to 450 W.
ALDA 24 W: 18 pcs
ALDA 28 W: 15 pcs
ALDA 32 W: 13 pcs
ALDA 40 W: 11 pcs

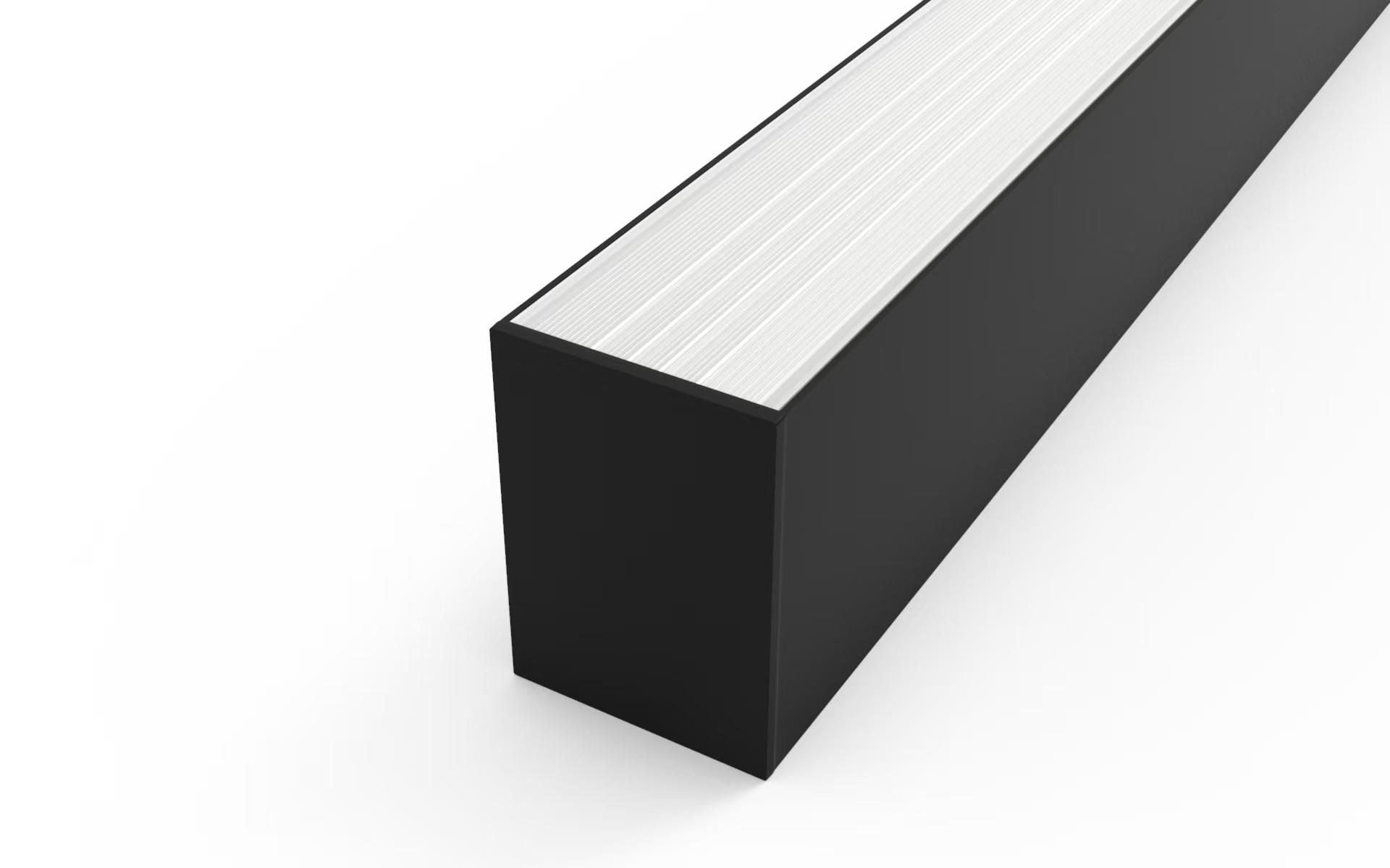

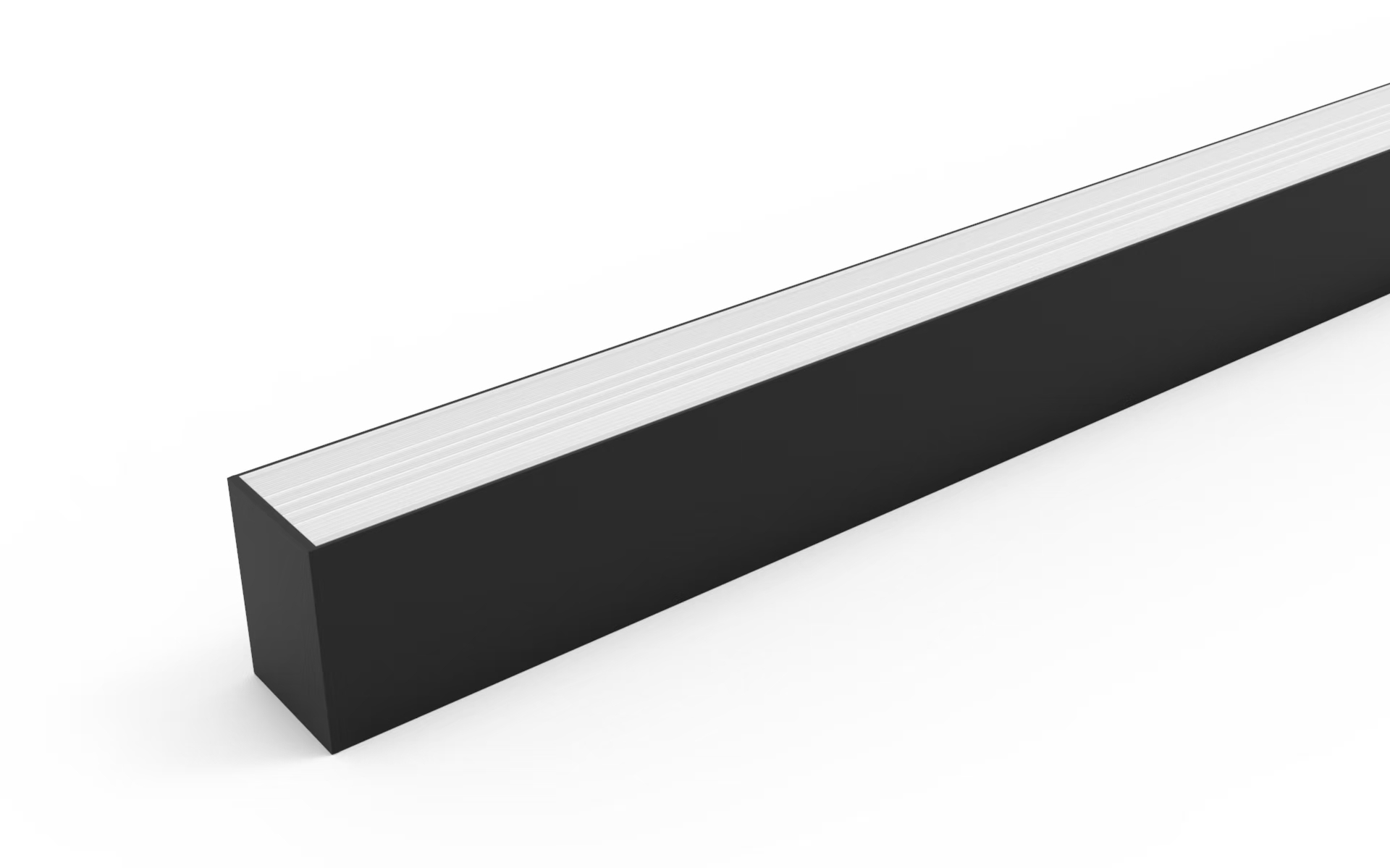

ALDA is equipped with a polycarbonate microprismatic cover that reduces the UGR (Unified Glare Rating) value, and a milky diffuser that ensures even and effective light distribution. The cover is made of polycarbonate with high resistance to yellowing caused by UV exposure. This ensures long-lasting and aesthetic appearance of the luminaire.

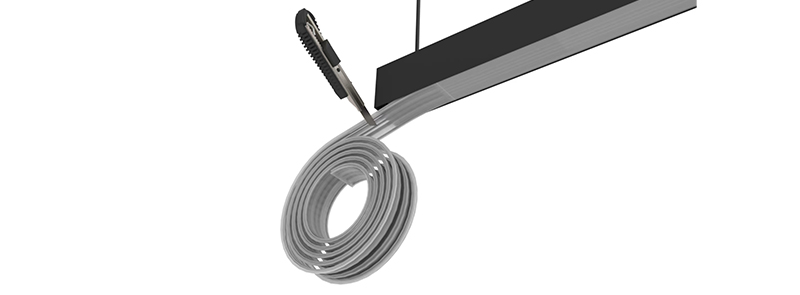

When connecting modules, the diffusers can be replaced with a single diffuser cut from a 30-metre reel, which allows for a uniform line of light with no visible gaps. This is an ideal solution for projects where clean geometry, consistent lighting, and configuration flexibility are key.
Available accessories:
- Mounting set for ALDA linear lights
- Connector for ALDA linear lights
- Power cable 160 cm for ALDA linear lights
- Prismatic diffuser 30 m reel for ALDA linear lights
| Index | 40-0001-11 |
| Product name | Linear LED light ALDA 120 cm 32 W 4000 K PC MPRM+ |
| Input voltage | 220 - 240 V AC, 50/60 Hz |
| Power | 24 / 28 / 32* / 40 W |
| Total luminous flux (øuse 360°) | 2900 / 3500 / 4000* / 4700 lm |
| Useful luminous flux (øuse 120°) | 2500 / 3000 / 3500* / 4000 lm |
| PF | ≥ 0.9 |
| SDCM | ≤ 3 |
| L70/B50 lifetime | 50 000 h |
| ON / OFF cycles | 50000 |
| IP rating | IP20 |
| Housing material | Aluminium |
| Cover material | Polycarbonate - PC |
| Operating temperature - range | -20 °C – 45 °C |
*Factory default setting
