10-0695-20 EAN: 5904405927731

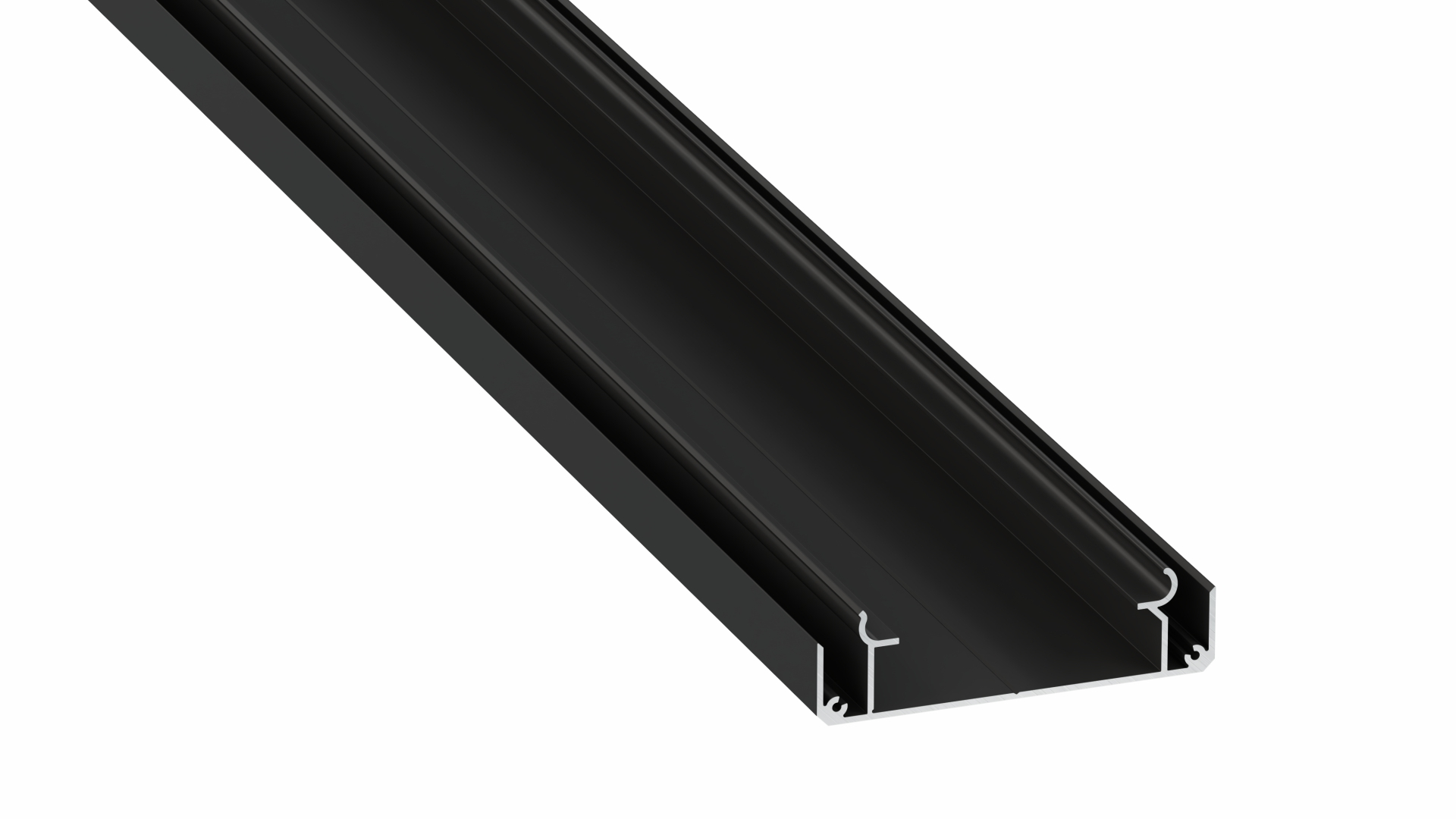

Lumines profile type LARGO M1 lacquered black, 2,02 m

Your price: Please contact your local distributor
Stock status: app.layout.ui.on_request
Color Black (lacquered)
System LARGO, Largo M1

Lumines profile type LARGO M1 mounting.

Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:

System

Product description

Mounting profile  LARGO M1  is one of four mounting profiles Profile LARGO topcoat. Installation profile Largo profile LARGO M1 is carried out by the method "click-click" in a specially shaped groove, which facilitates the assembly on wall or ceiling.

LARGO profile M1 has been designed a special system connectors LARGO profile, which facilitates the installation of longer sections of profiles in one line.

Colors:
- profile silver anodized
- profile lacquered white (RAL9016)
- profile lacquered black (RAL9005 mat)​​​​​​​

Mounting:
- by means of mounting screws

Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.



Mounting profile LUMINES profile
Largo M1 Largo



Assembly of profile LARGO system with SUPER WIDE cover using mounting profile LARGO M1

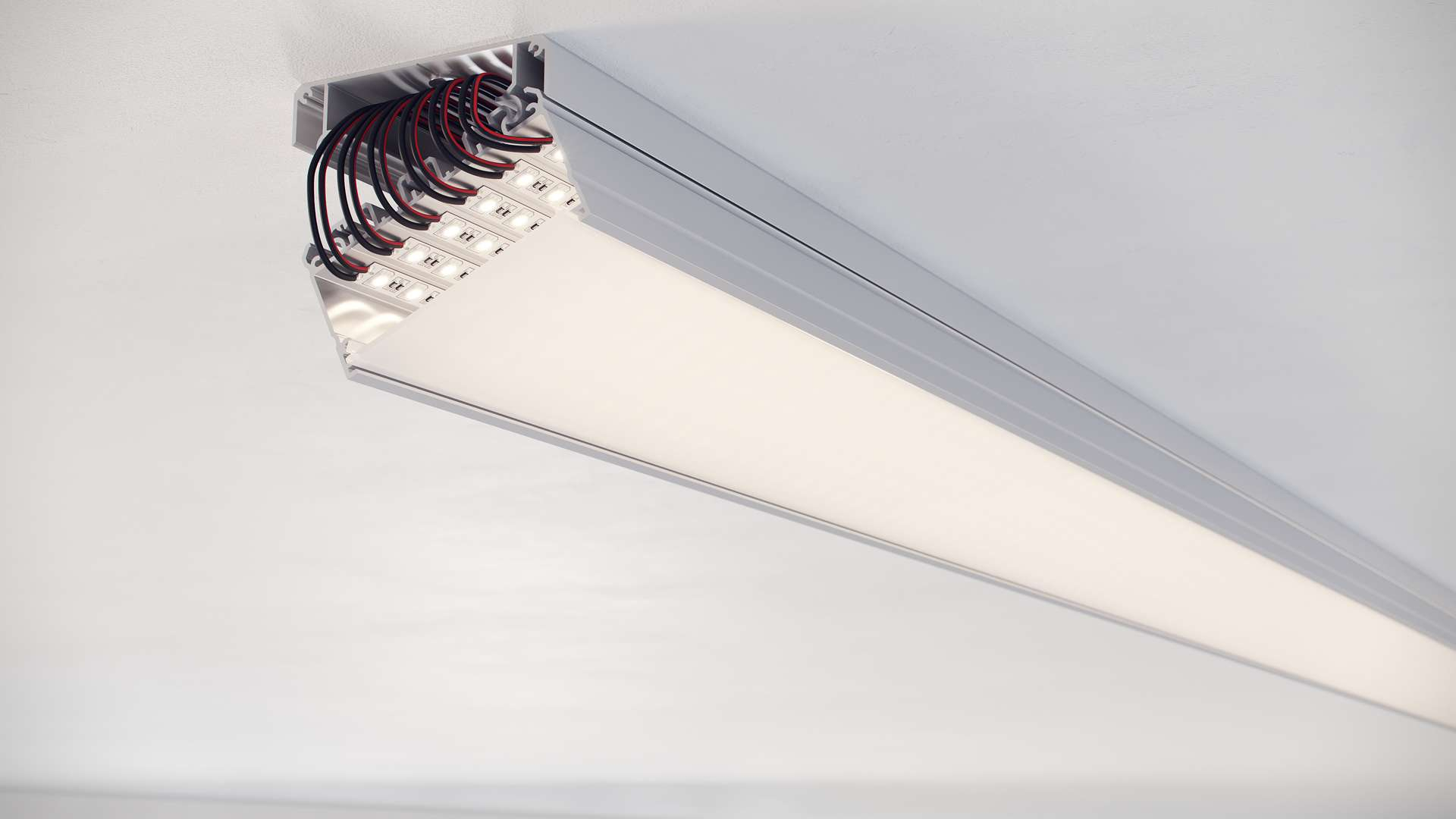

End result of assembly of profile LARGO system with SUPER WIDE cover using mounting profile LARGO M1



Assembly scheme for elements of the lighting system using profile LARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end cap LARGO + M1 with hole, (3a), end cap LARGO + M1 without hole, (4) cable gland, (5a) right LARGO connector, (5b) left LARGO connector, (5c) connector LARGO M1, (6) LARGO M1 mounting profile
