25-1018-07
EAN: 5904405971338
MiBoxer REMOTE RF 2.4GHz 4 ZONES MONO/CCT C1
Your price:
Please contact your local distributor
| Stock status: | a lot |
| Type | Pilot/Panel |
| Group | MiBoxer |
Available variants:
Type
Group
Producer: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
MiBOXER C1 controller enables remote control of LED lighting brightness and color temperature. It operates on RF 2.4 GHz wireless technology, ensuring a stable connection with MiBoxer/Mi-Light receivers and luminaires within a range of up to 30 metres.
The C1 controller supports four zones, to which any number of receivers can be assigned (sold separately). Additionally, the device allows one favourite scene to be saved (for products version V2.0 or newer). Thanks to its magnetic base, the remote can be easily placed in a convenient spot, always within reach.
Control 4 zones using one remote control

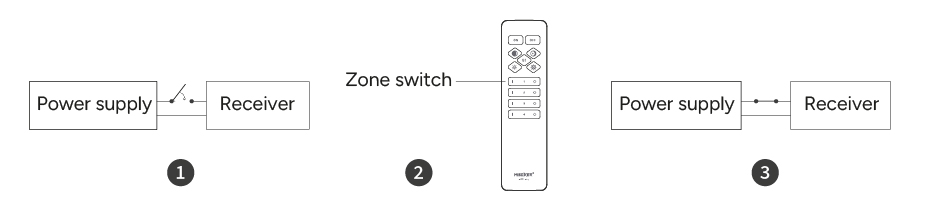

Pairing the remote control with the receiver is extremely simple. You should disconnect the main power supply from the receiver (1), then reconnect the power supply and, within the first 3 seconds, briefly hold down the previously selected channel on the remote control (2). The effect of correct pairing of the devices will be the LED strip (3) blinking three times.
Receiver pairing diagram with remote control
| Power | 2xAAA (3V) |
| Dimensions | 37.5 x 15 x 140 mm |
| Work scope | 30 m |
| Power consumption in standby mode | 5μA |
| Frequency | 2.4 GHz (2400–2483,5 MHz) |
| Number of zones | 4 |
| Operating temperature | -10~40℃ |
