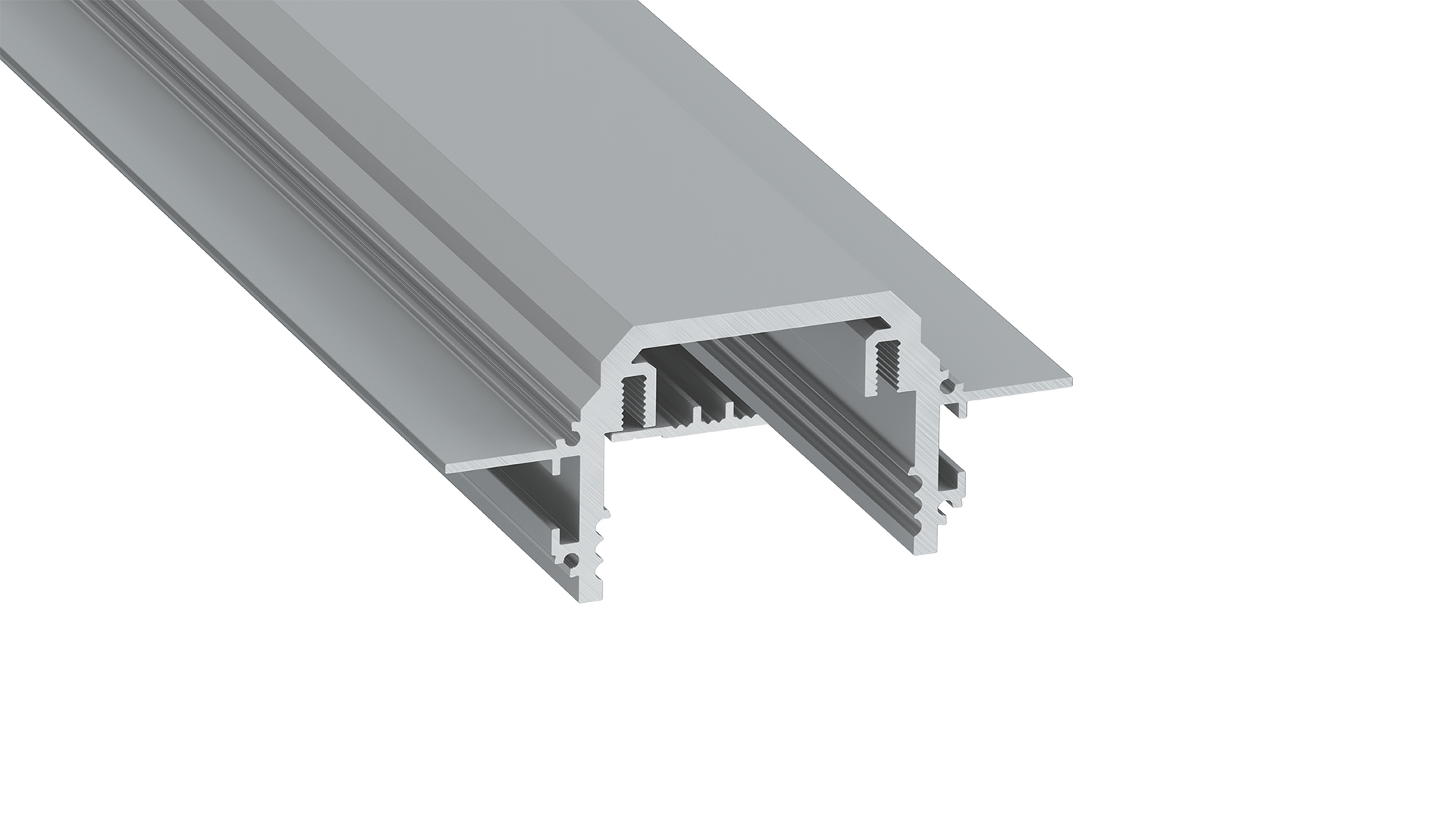

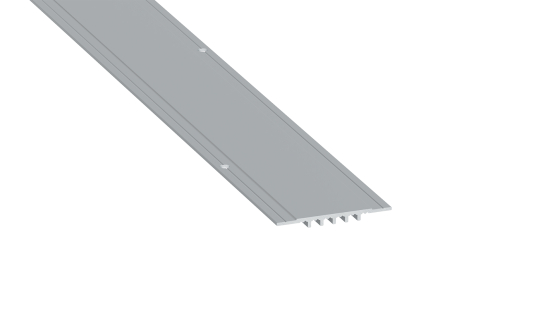

10-1224-20
Lumines profile type TECO silver anodes, 2,02 m
Your price:
Please contact your local distributor
| Stock status: | average |
| Purpose | Architectural |
| Type of assembly | recessed |
| Profile length | 2 m |
| Color | Silver (anodized) |
| System | TECO |
Color
Silver (anodized)
Available variants:
Purpose
Type of assembly
Profile length
System
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
A TECO LED system is designed for installation in concrete using the pouring method and adapted for mechanical anchoring in formwork.
It ensures high stability, load resistance, and a precise light line finish in ceilings, walls, and other concrete surfaces.
The system is designed for two parallel LED strips. Thanks to a specially developed LIFT TWO cover, the cover surface can be precisely aligned with plaster layers of various thicknesses, while its construction facilitates easy service access to the light source.
Color variants:
- silver anodized
Cover:
- LIFT TWO – opal
End caps:

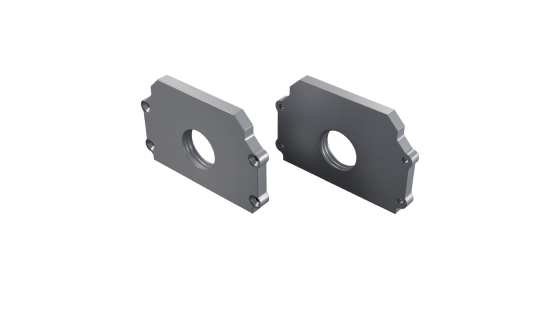

- aluminum with hole: silver anodized
- aluminum without hole: silver anodized

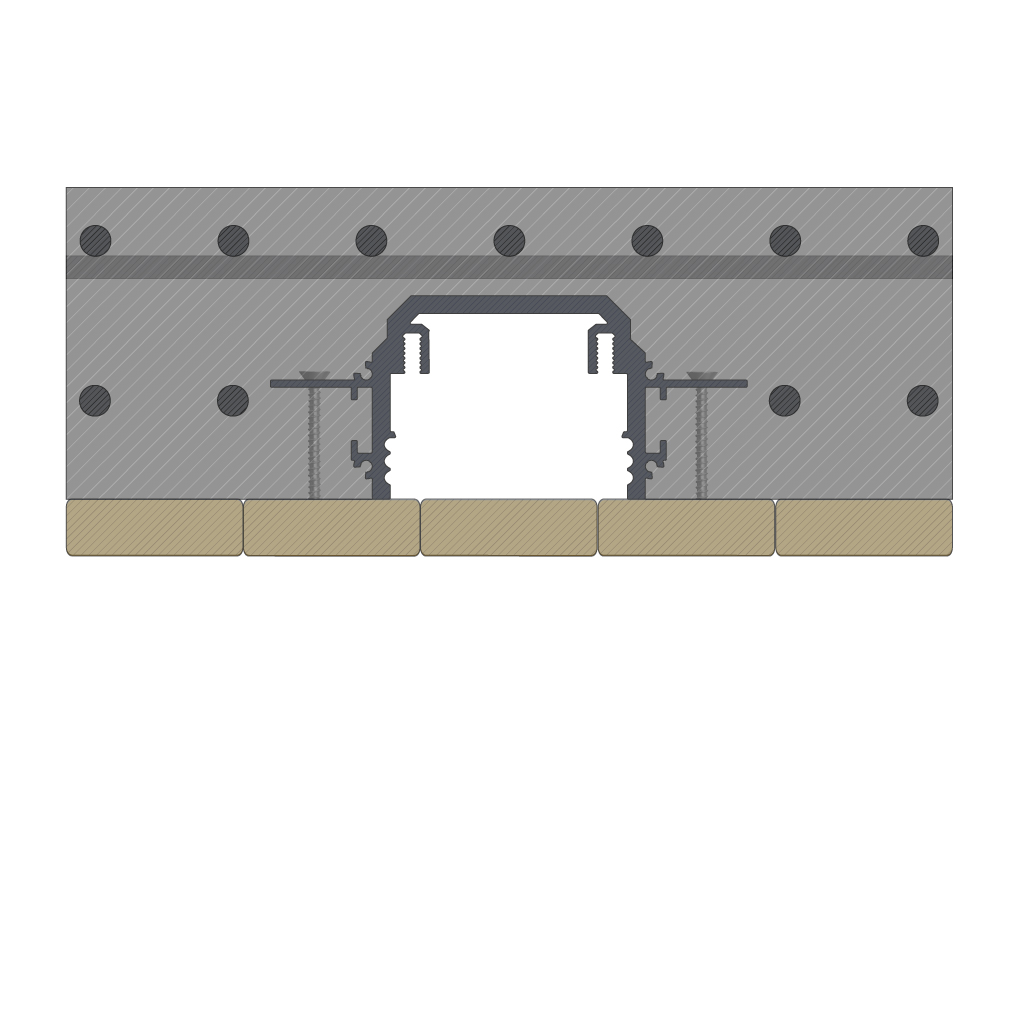

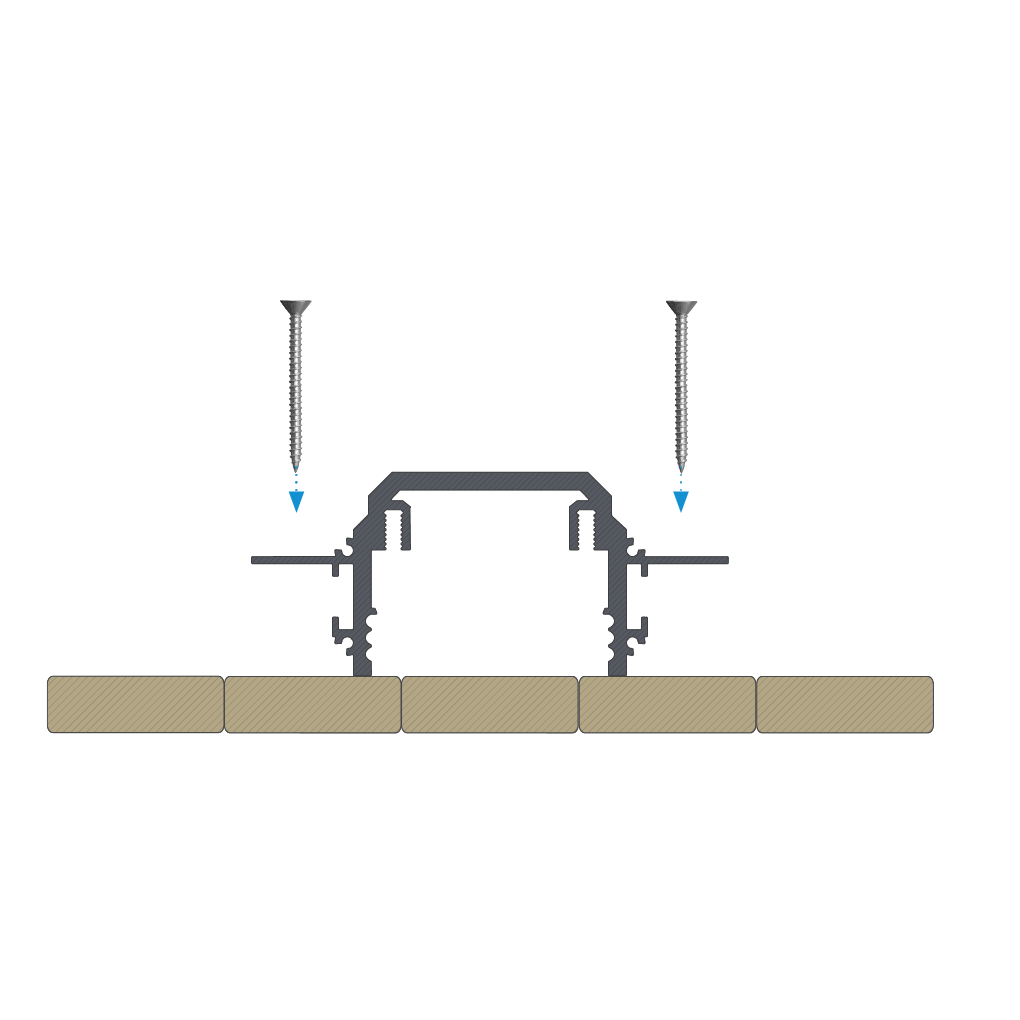

Instructions for installing TECO LED profile in concrete formwork using screws.

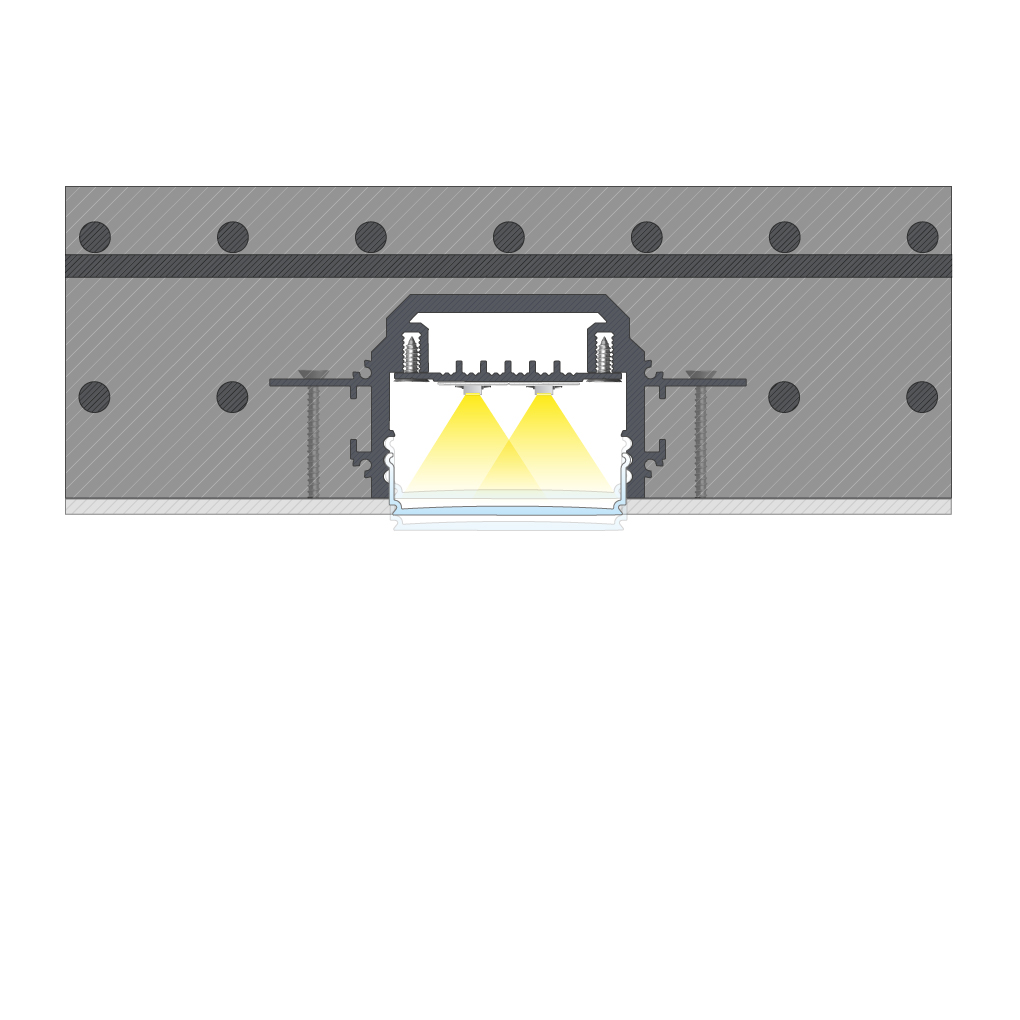

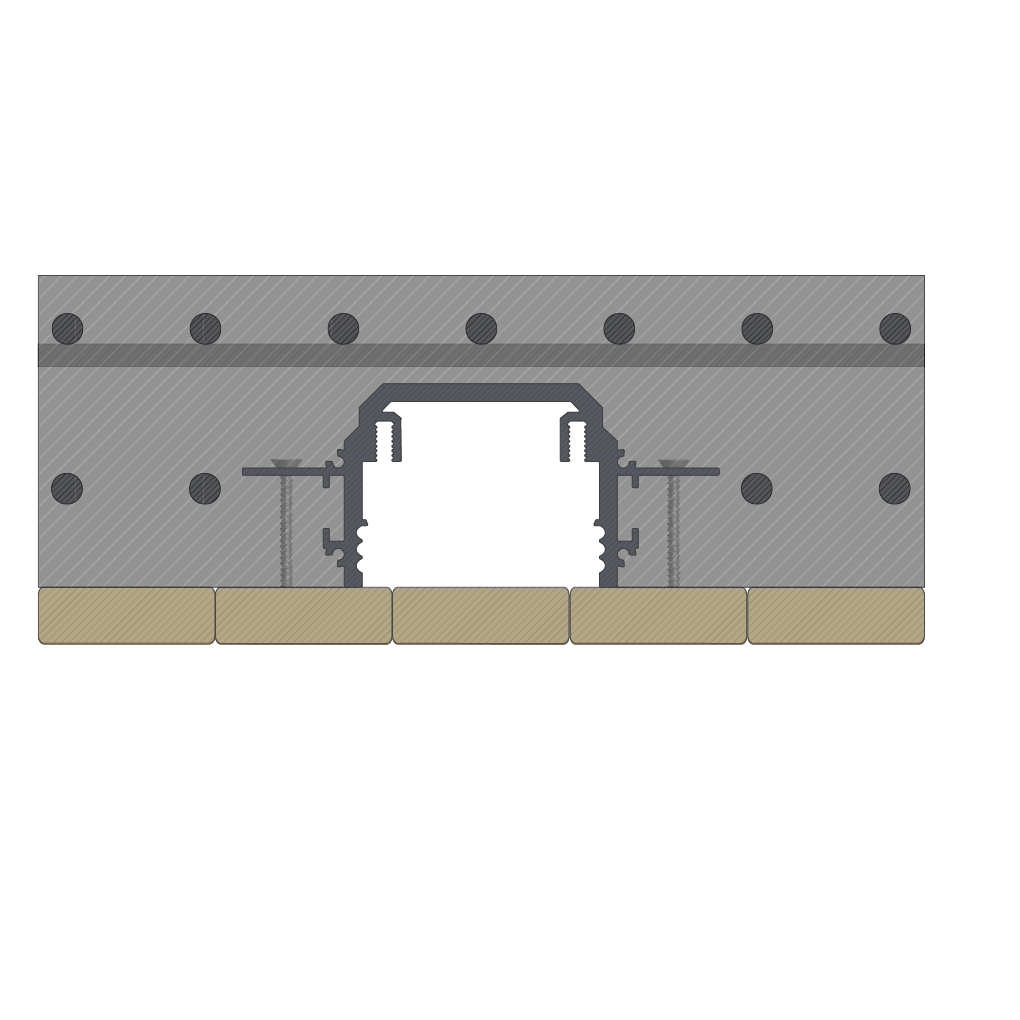

The effect of mounting TECO LED profile in concrete formwork using screws after reinforcement installation and concrete pouring.

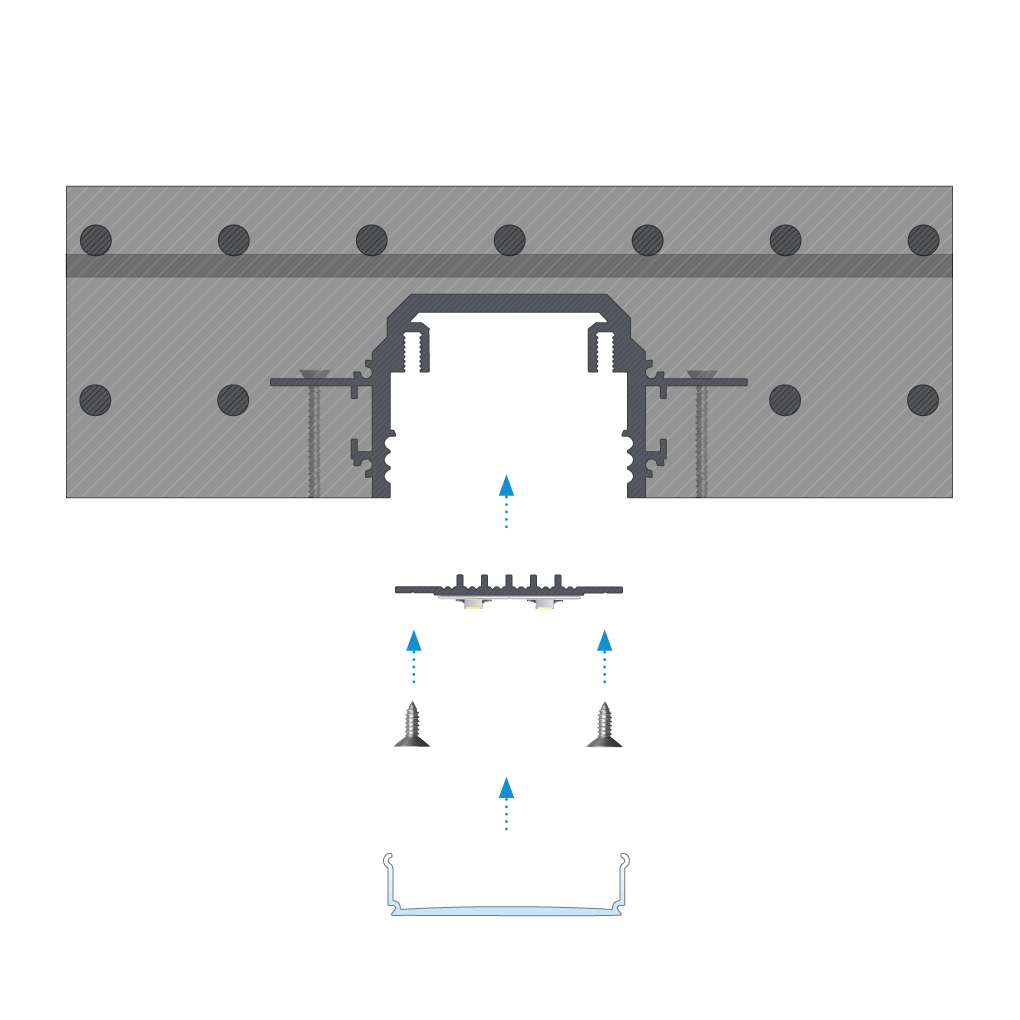

Instructions for installing TECO M1 assembly profile with LIFT TWO cover using screws.

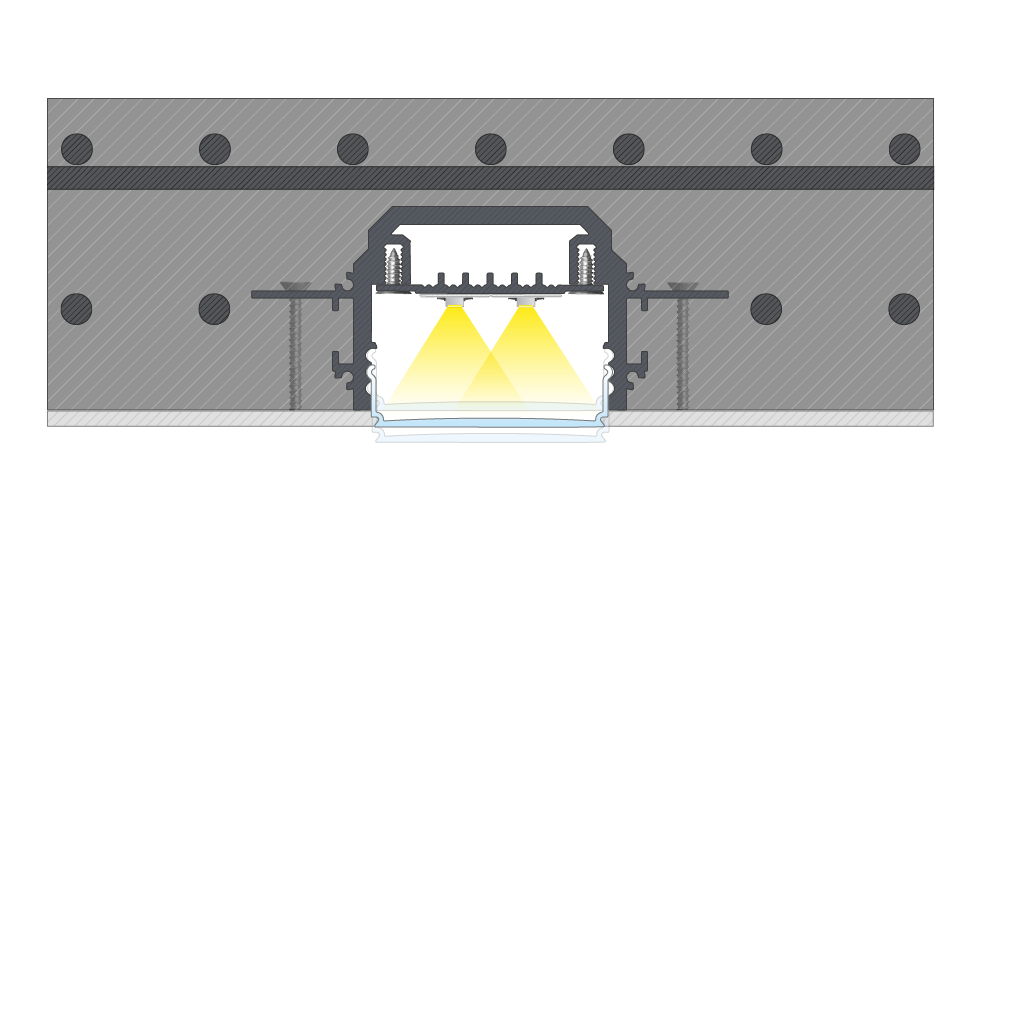

The effect of mounting TECO M1 assembly profile with LIFT TWO cover using screws after plaster finishing.
Assembly scheme for elements of the lighting system using TECO LED profile and (1) LIFT TWO cover, (2) two LED strips, (3) TECO M1 assembly profile, (4) TECO end cap without hole, (4a) TECO end cap with hole.
