Unfortunately, the following products are missing: meters
* LED Strips P65, IP67HS, and IP67 sold in 5m, 20m and 25m rolls
* LED Neon Flex sold in 5m rolls
11-3631-20
EAN: 5904405995488

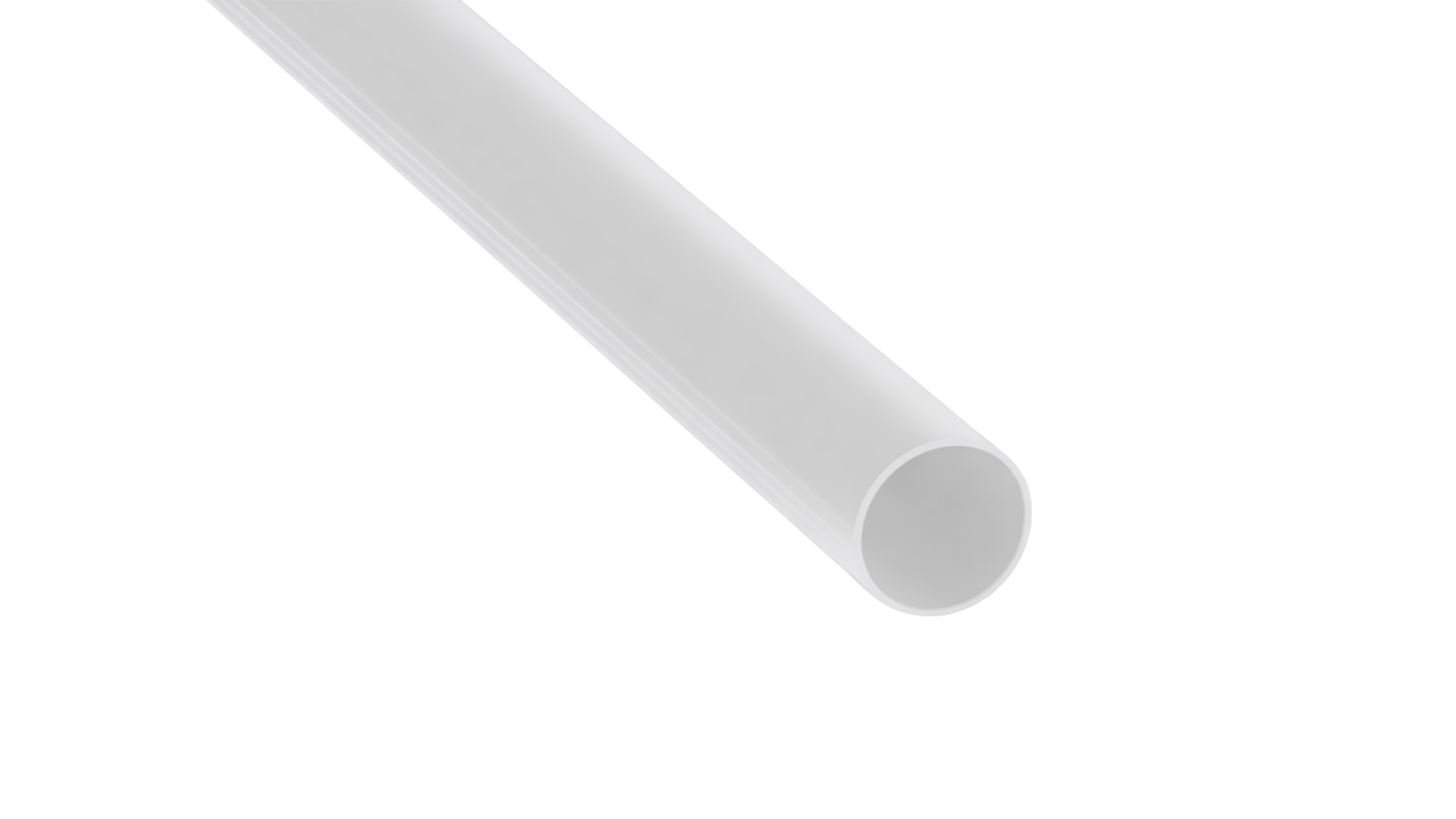

LUMINES SFERO Profile PC opal 2.02 m
Your price:
Please contact your local distributor
| Stock status: | none |
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 2 m |
| System | SFERO |
Available variants:
Purpose
Type of assembly
Profile length
System
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
SFERO is a PC LED profile with a circular cross-section, designed to create consistent and aesthetically refined lines of light in architectural spaces. Its construction ensures uniform light distribution across the entire surface of the profile.
The profile is suitable for various mounting methods – as a suspended luminaire (with the option of vertical or horizontal orientation) or surface-mounted, allowing flexible adaptation to project requirements. An additional option is installation with suspension on one side and wall mounting on the other.
The profile is available in 1, 2 and 3 m lengths or as a complete set. The set includes a double-threaded profile, SFERO FLEX neon, and a cable. The SFERO FLEX neon is available in two color temperatures: 2700 K and 4000 K. The system is available in 1, 2 and 3 m sections.
The profile is available in 1 m, 2 m and 3 m lengths, and fully compatible LED neon light sources are available:
- LUMINES Sfero Flex 24 V DC 14 W/m 2700 K CRI 95 IP65 (18-2001-27)
- LUMINES Sfero Flex 24 V DC 14 W/m 4000 K CRI 95 IP65 (18-2001-40)
Available end caps for the SFERO LED system:
Aluminium SFERO MS1 without hole:
- LUMINES SFERO ALU end cap MS1 silver anodized (12-2325-11)
- LUMINES SFERO ALU end cap MS1 black anodized (12-2362-11)
Aluminium SFERO MS1 with hole:
- LUMINES SFERO ALU end cap MS1 silver anodized with hole (12-2325-10)
- LUMINES SFERO ALU end cap MS1 black anodized with hole (12-2362-10)
Aluminium SFERO MS2 without hole:
- LUMINES SFERO ALU end caps MS2 silver anodized set (12-2385-11)
- LUMINES SFERO ALU end caps MS2 black anodized set (12-2385-11)
Aluminium SFERO MS2 with hole:
- LUMINES SFERO ALU end caps MS2 black anodized with hole set (12-2382-10)
- LUMINES SFERO ALU end caps MS2 silver anodized with hole set (12-2385-10)
Aluminium SFERO MS3 without hole:
- LUMINES SFERO ALU end caps MS3 black anodized set (14-2029-31)
- LUMINES SFERO ALU end caps MS3 silver anodized set (14-2029-32)
Available mounting brackets for the SFERO LED system:
SFERO MS2 metal:
- LUMINES SFERO ALU mounting bracket MS2 silver anodized (14-2029-23)
- LUMINES SFERO ALU mounting bracket MS2 black anodized (14-2029-24)
Accessories:
Dedicated suspension kits:
- LUMINES SFERO suspension kit 1500 mm (14-2029-33)
- LUMINES SFERO suspension kit 1500 mm black (14-2029-34)
- LUMINES SFERO suspension kit 3000 mm (14-2029-35)
- LUMINES SFERO suspension kit 3000 mm black (14-2029-36)
Metal strain reliefs:
- Metal strain relief M10x1 with 4 mm thread white (14-2028-96)
- Metal strain relief M10x1 with 4 mm thread black (14-2028-97)
The offer also includes ready-made SFERO LED systems, available as a set consisting of a profile threaded on both sides, SFERO FLEX neon, and end caps for SFERO FLEX:
- System LUMINES Sfero 2700 K 1 m (26-0000-86)
- System LUMINES Sfero 2700 K 2 m (26-0000-87)
- System LUMINES Sfero 2700 K 3 m (26-0000-88)
- System LUMINES Sfero 4000 K 1 m (26-0000-89)
- System LUMINES Sfero 4000 K 2 m (26-0000-90)
- System LUMINES Sfero 4000 K 3 m (26-0000-91)
Instructions for installing SFERO LED profile using: (1) SFERO MS2 metal mounting clips, (2) two-component SFERO MS2 end caps
The effect of mounting SFERO LED profile using: SFERO MS2 metal mounting clips and two-component SFERO MS2 end cap
Instructions for installing SFERO LED profile using: (1) two-component SFERO MS3 end cap, (2) two-component SFERO MS2 end cap, (3) suspension kits.
The effect of mounting SFERO LED profile using: two-component SFERO MS3 end cap, two-component SFERO MS2 end cap and suspension kits.
Instructions for installing SFERO LED profile using: (1) metal cable lock M10×1 4 mm, (2) SFERO MS1 end cap with hole, (3) SFERO MS1 end cap without hole.
Assembly scheme of the lighting system elements using SFERO LED profile and: (1) SFERO FLEX light source, (2) two-component SFERO MS2 end caps without holes, (3) SFERO MS2 metal mounting clips.
Assembly scheme of the lighting system elements using SFERO LED profile and: (1) SFERO FLEX light source, (2) two-component SFERO MS2 end caps without holes, (3) suspension kits.
