26-0000-86 EAN: 5904405995501

LUMINES SFERO 2700 K LED system - 1 m

Your price: Please contact your local distributor

Stock status:	app.layout.ui.on_request
Purpose	Architectural
Type of assembly	surface
Profile length	1 m
System	SFERO

Catalog card

Available variants:

Purpose

Type of assembly

Profile length

System

Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl

Product description

Ready-made LUMINES SFERO LED sets include a double-threaded SFERO LED profile. Flexible SFERO FLEX neon and end caps for the neon are also included.

Thanks to 360° light emission and perfectly matched components, they ensure a uniform line of light without visible LED points.

The system offers full design freedom – from surface-mounted to suspended installations, in both vertical and horizontal configurations.

An unconventional mounting solution is also possible – suspending the LUMINES SFERO LED system on a suspension kit on one side and fixing it to the wall on the other.

Aluminium SFERO MS1 without hole:

LUMINES SFERO ALU end cap MS1 silver anodized (12-2325-11)
LUMINES SFERO ALU end cap MS1 black anodized (12-2362-11)

Aluminium SFERO MS1 with hole:

LUMINES SFERO ALU end cap MS1 silver anodized with hole (12-2325-10)
LUMINES SFERO ALU end cap MS1 black anodized with hole (12-2362-10)

Aluminium SFERO MS2 without hole:

LUMINES SFERO ALU end caps MS2 silver anodized set (12-2385-11)
LUMINES SFERO ALU end caps MS2 black anodized set (12-2385-11)

Aluminium SFERO MS2 with hole:

LUMINES SFERO ALU end caps MS2 black anodized with hole set (12-2382-10)
LUMINES SFERO ALU end caps MS2 silver anodized with hole set (12-2385-10)

Aluminium SFERO MS3 without hole:

LUMINES SFERO ALU end caps MS3 black anodized set (14-2029-31)
LUMINES SFERO ALU end caps MS3 silver anodized set (14-2029-32)

Available mounting brackets for the SFERO LED system:

SFERO MS2 metal:

LUMINES SFERO ALU mounting bracket MS2 silver anodized (14-2029-23)
LUMINES SFERO ALU mounting bracket MS2 black anodized (14-2029-24)

Accessories:

Dedicated suspension kits:

LUMINES SFERO suspension kit 1500 mm (14-2029-33)
LUMINES SFERO suspension kit 1500 mm black (14-2029-34)
LUMINES SFERO suspension kit 3000 mm (14-2029-35)
LUMINES SFERO suspension kit 3000 mm black (14-2029-36)

Metal strain reliefs:

Metal strain relief M10x1 with 4 mm thread white (14-2028-96)

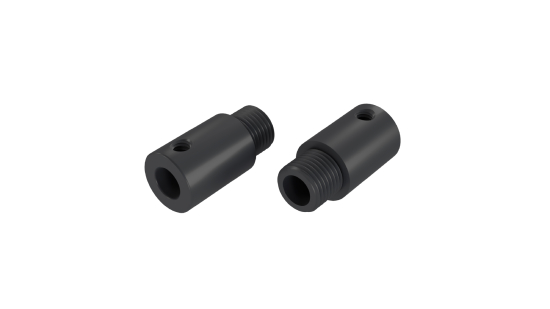

Metal strain relief M10x1 with 4 mm thread black (14-2028-97)

The offer also includes ready-made SFERO LED systems, available as a set consisting of a profile threaded on both sides, SFERO FLEX neon, and end caps for SFERO FLEX:

System LUMINES Sfero 2700 K 1 m (26-0000-86)
System LUMINES Sfero 2700 K 2 m (26-0000-87)
System LUMINES Sfero 2700 K 3 m (26-0000-88)
System LUMINES Sfero 4000 K 1 m (26-0000-89)
System LUMINES Sfero 4000 K 2 m (26-0000-90)
System LUMINES Sfero 4000 K 3 m (26-0000-91)

Instructions for installing SFERO LED profile using: (1) SFERO MS2 metal mounting clips, (2) two-component SFERO MS2 end caps.

Final installation result of the SFERO LED profile using: SFERO MS2 metal mounting clips and two-component SFERO MS2 end caps.

Instructions for installing SFERO LED profile using: (1) two-component SFERO MS3 end cap, (2) two-component SFERO MS2 end cap, (3) suspension kits.

Final installation result of the SFERO LED profile using: two-component SFERO MS3 end cap, two-component SFERO MS2 end cap and suspension kits.

Instructions for installing SFERO LED profile using: (1) metal cable lock M10×1 4 mm, (2) SFERO MS1 end cap with hole, (3) SFERO MS1 end cap without hole.

Assembly diagram of the lighting system using the SFERO LED profile and: (1) SFERO FLEX light source, (2) two-component SFERO MS2 end caps without holes, (3) SFERO MS2 metal mounting clips.

Assembly diagram of the lighting system using the SFERO LED profile and: (1) SFERO FLEX light source, (2) two-component SFERO MS2 end caps without holes, (3) suspension kits.
