10-0595-20
EAN: 5904405919088

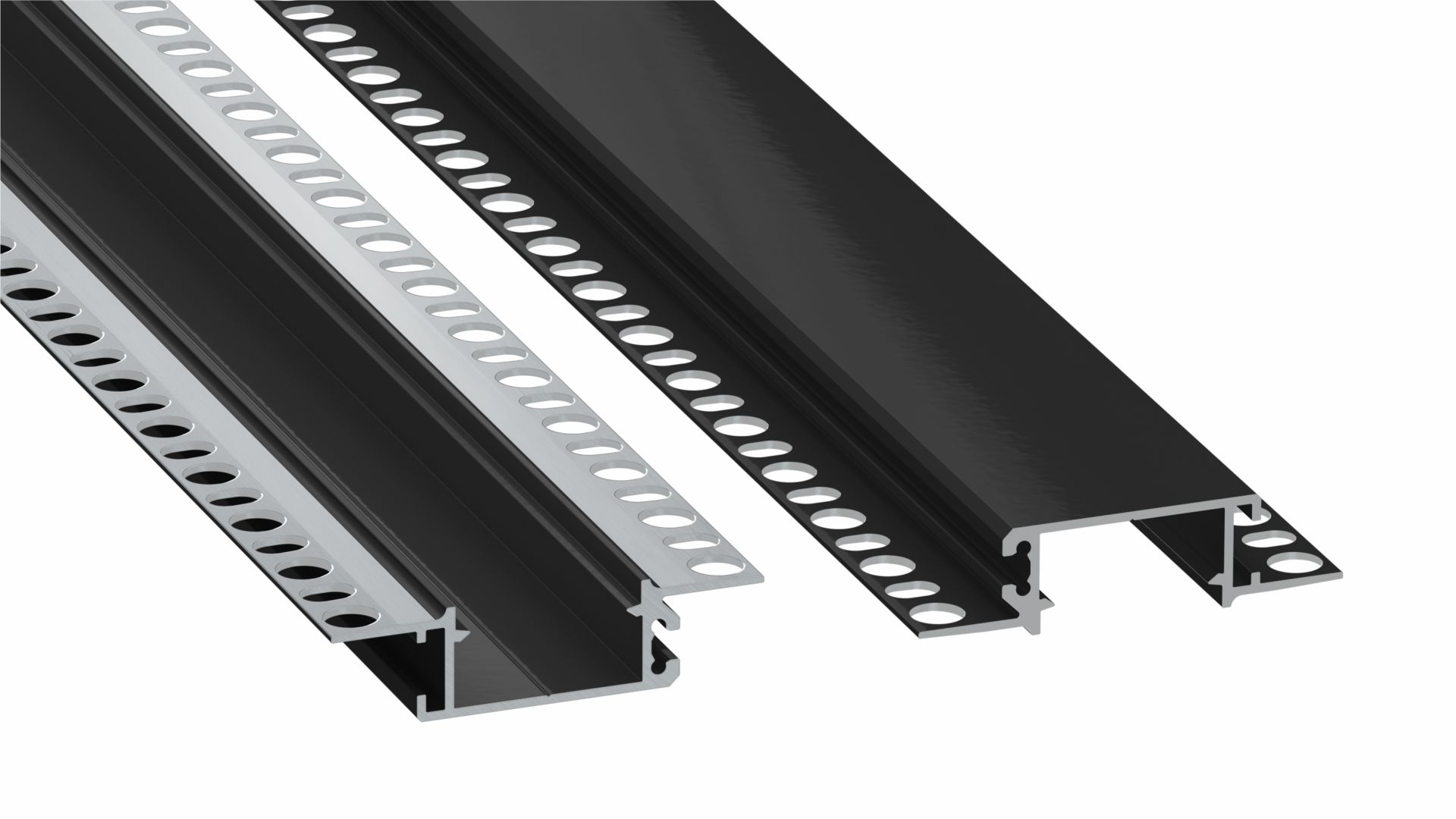

Lumines profile type Zati lacquered black, 2 m
Your price:
Please contact your local distributor
| Stock status: | a lot |
| Purpose | Architectural |
| Type of assembly | recessed |
| Profile length | 2m |
| Color | Black (lacquered) |
| System | ZATI |

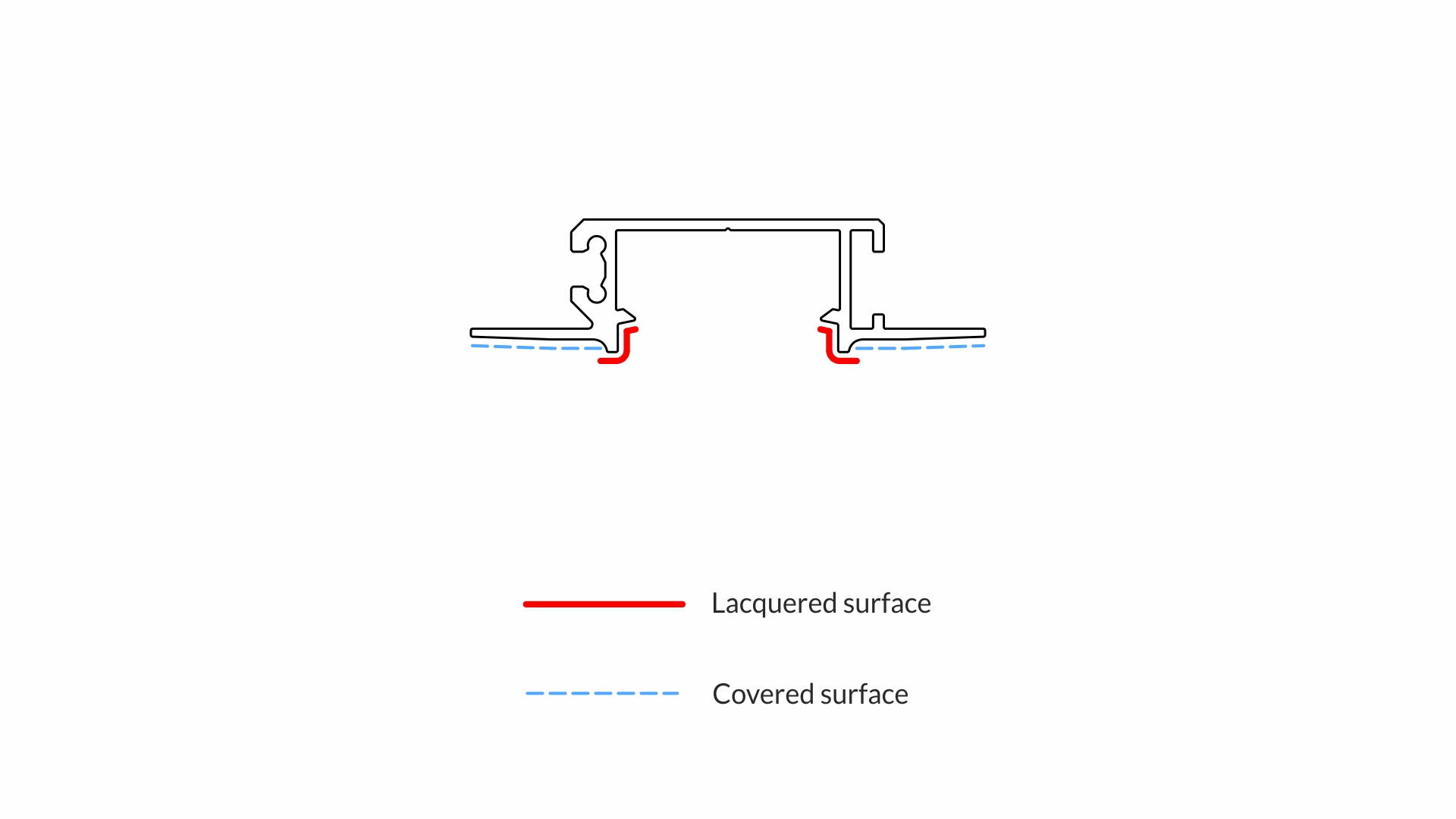

End cap Lumines ZATI - aluminum. The sides of the profile are intended for plastering.
* The profile has no varnish in places intended for plastering. This ensures better adhesion to the mounted surface.
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

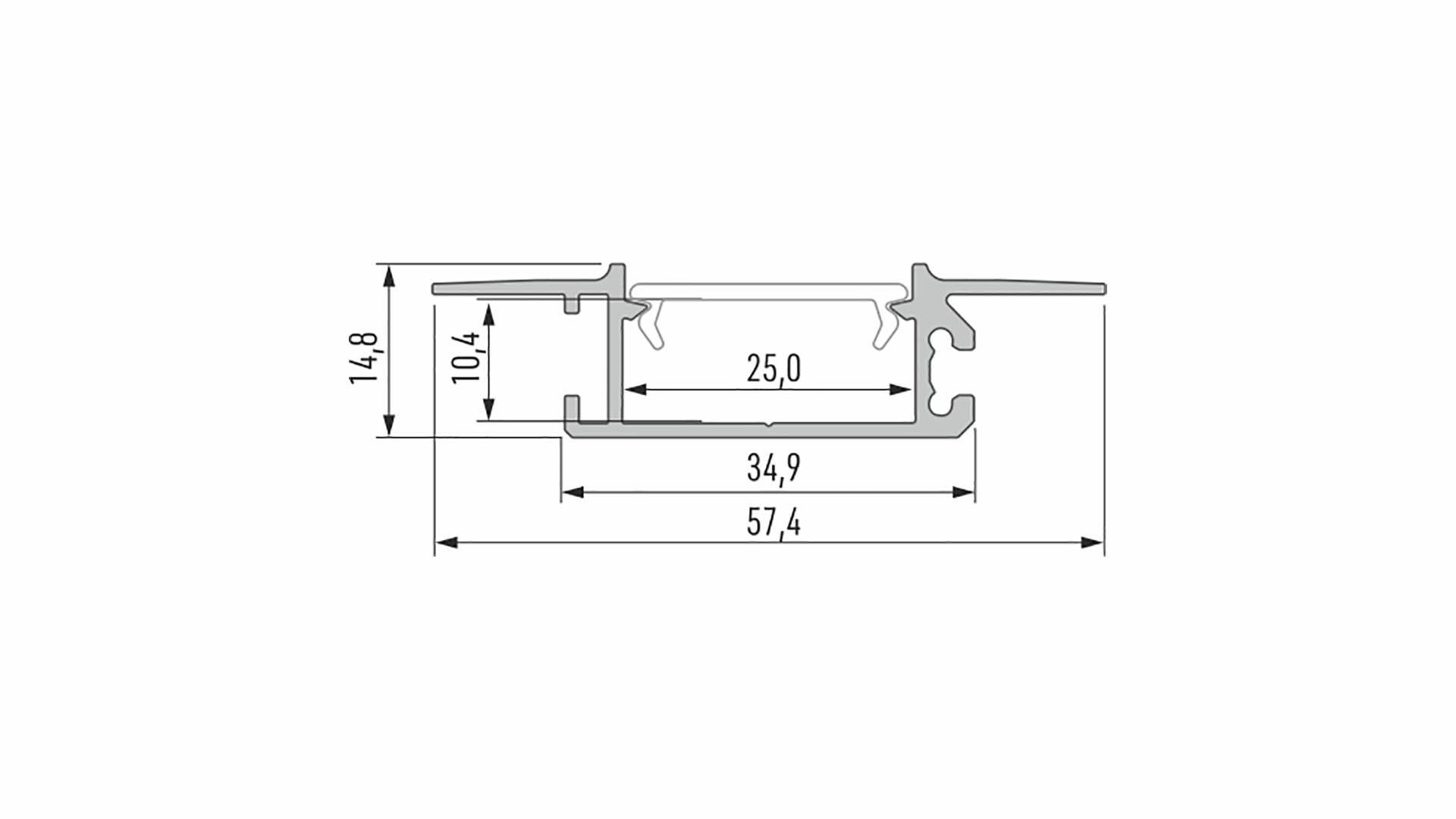

Lumines ZATI is a low recessed profile, mounted directly on the wall but between two plaster boards – to be used in the modern residential buildings in the public utility facilities.
Color versions:
- anodized silver,
- lacquered white (RAL9016),
- lacquered black (RAL9005 mat)
Mounting:
- sunk between plasterboard panels, then plastered lipping profile
Accessories for aluminum profile ZATI Lumines
Diffuser (przesłonki):
- DOUBLE
* Transparent (PMMA)
* Frozen (PMMA)
* Milk (PMMA)
* Frosted milk (PMMA)
* Black (PMMA)
Mounted on interference from the top of the profile.
PLUGS:
aluminium caps with a hole in 4 color variations (white, silver, black, gray)
plastic caps with hole in 4 color variations (white, black, lacquered silver, gray)
ADDITIONAL ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°
Profile is available in standard lengths: 1000 mm, 2020 mm, 3000 mm.
Installation instructions ZATI profile with diffuser DOUBLE recessed between the plates.

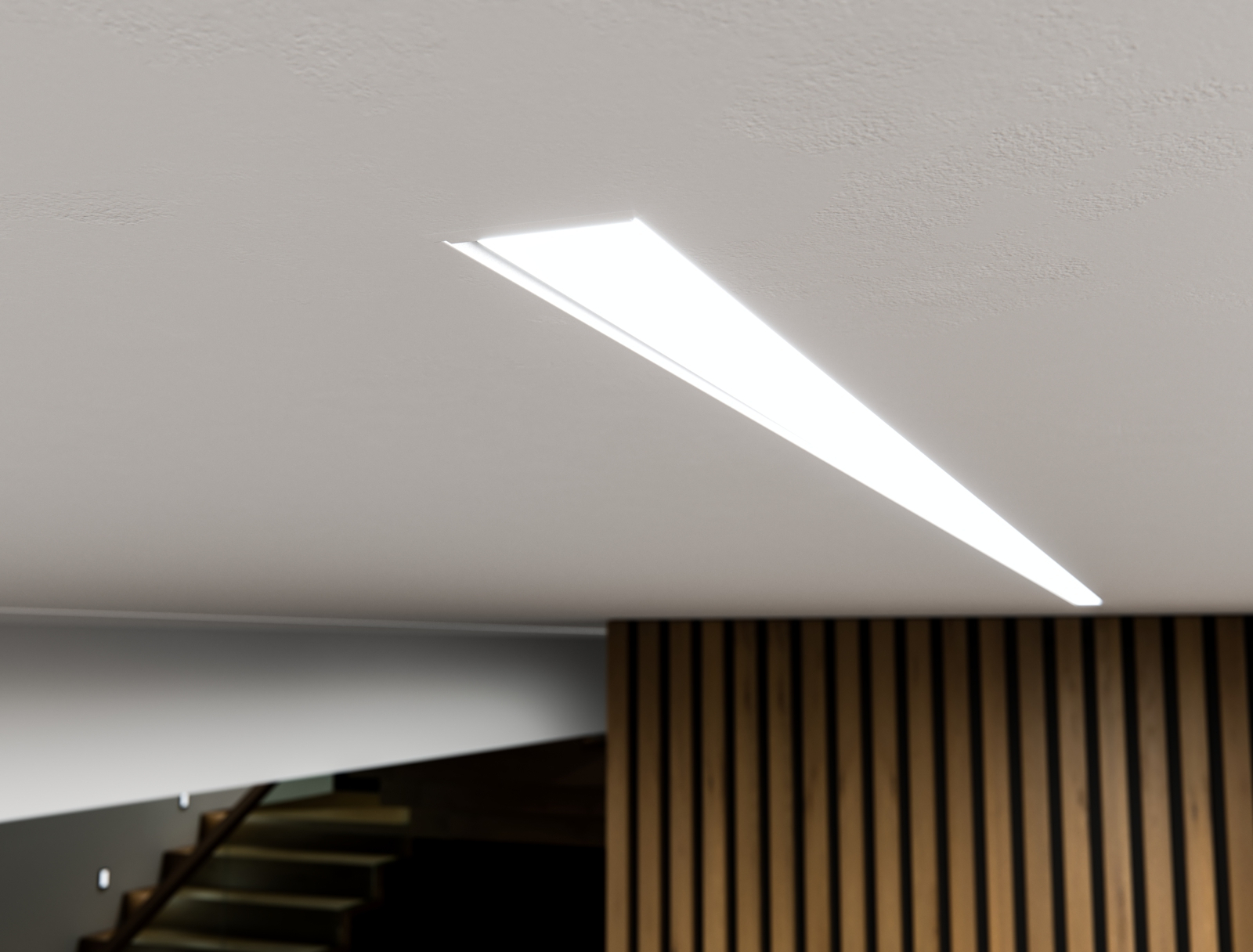

The end result ZATI mounting profile with diffuser DOUBLE recessed between the plates, then plastered.
Installation steps with the use of the profile in building a direct ZATI [1.farba, 2.gips, the third grid, the fourth plate cardboard-gypsum].
Scheme assembly elements in the building lighting system using a direct ZATI profile (1) DOUBLE lens (2) of LED strips (3) caps ZATI with an opening (4) of the connector straight.
