10-0551-30
EAN: 5902973366631
Lumines profile type Subli lacquered white, 3 m
Your price:
Please contact your local distributor
| Stock status: | average |
| Purpose | Architectural |
| Type of assembly | recessed |
| Profile length | 3m |
| Color | White (lacquered) |
| System | SUBLI |
Lumines profile mortise type Subli

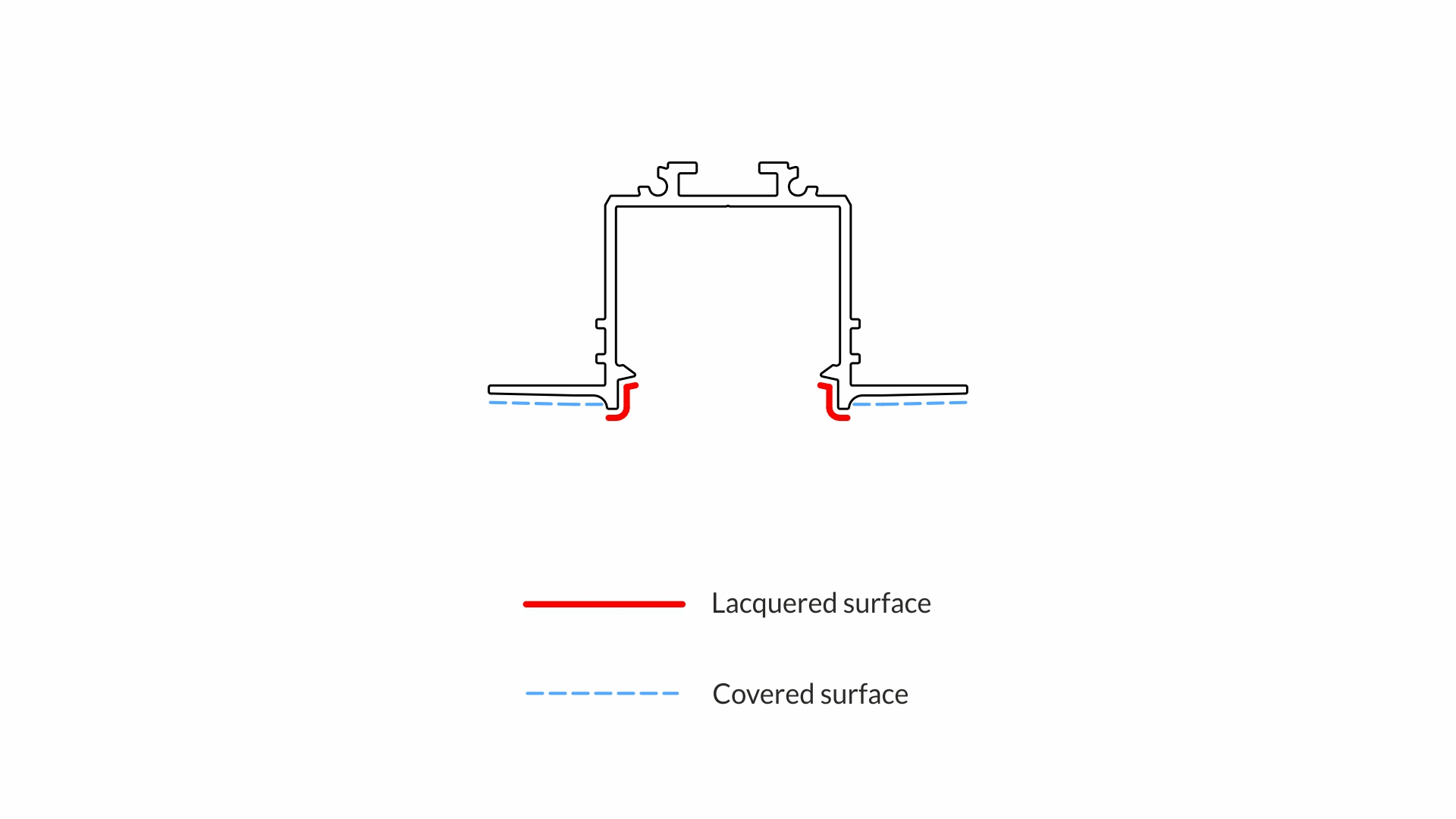

* The profile has no varnish in places intended for plastering. This ensures better adhesion to the mounted surface.
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

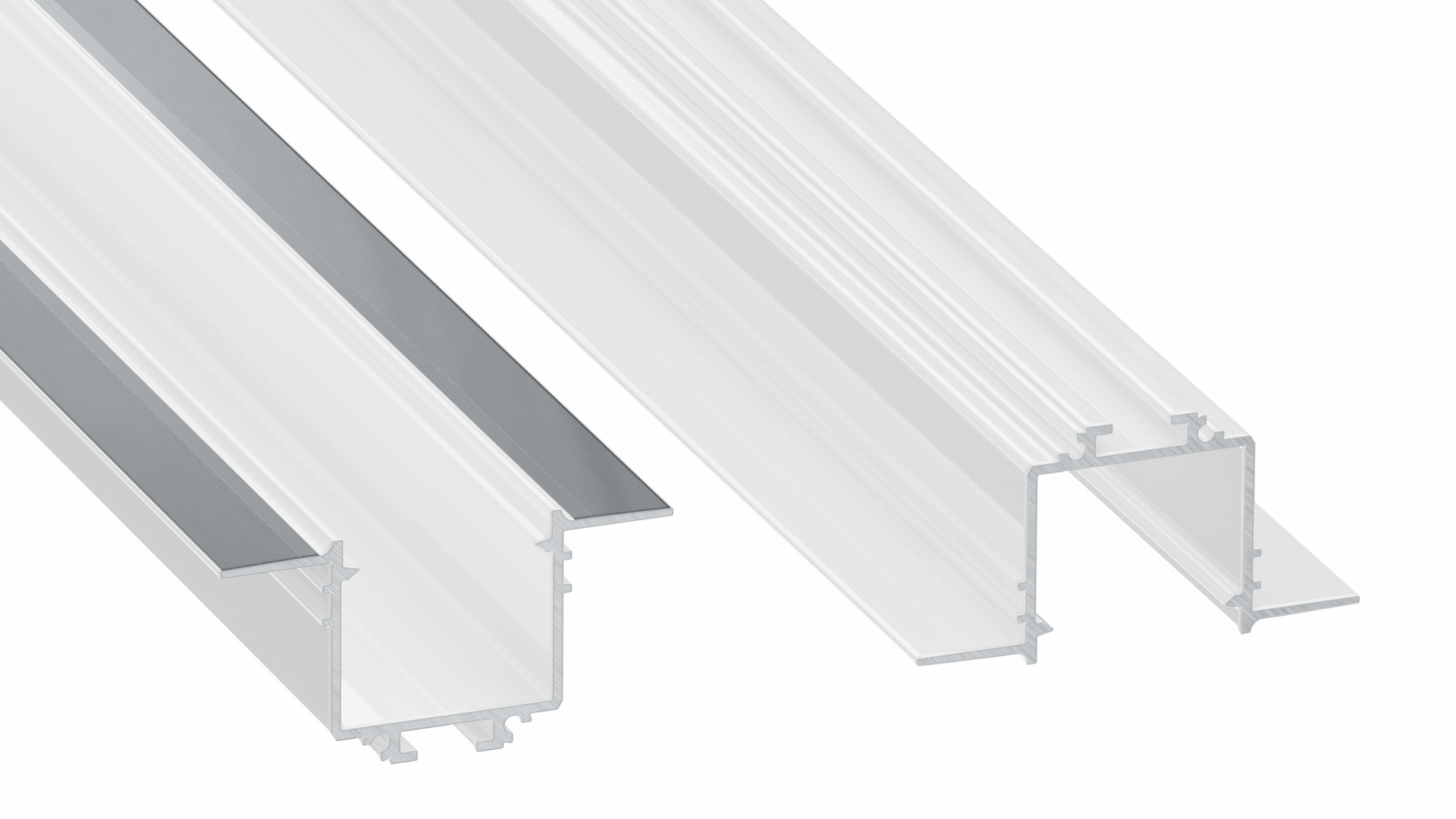

Alluminium SUBLI LUMINES profile of a high profile mortise. It was designed for use in the building of architectural, commercial and industrial buildings.
Color versions:
- anodized silver,
- lacquered white (RAL9016),
- lacquered black (RAL9005 mat)
Mounting:
groove mounted between two plasterboards with plastered finish,
mounting springs
Accessories for aluminum profile Subli Lumines
COVERS (diffusers):
- diffuser DOUBLE PMMA - transparent, frozen, milky, milky frosted, black
(Mounted from the top, snap-on)
- LUMINES raster DOUBLE cover
PLUGS:
aluminium caps with a hole in 3 color variations (white, silver, black)
ADDITIONAL ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
mounting springs

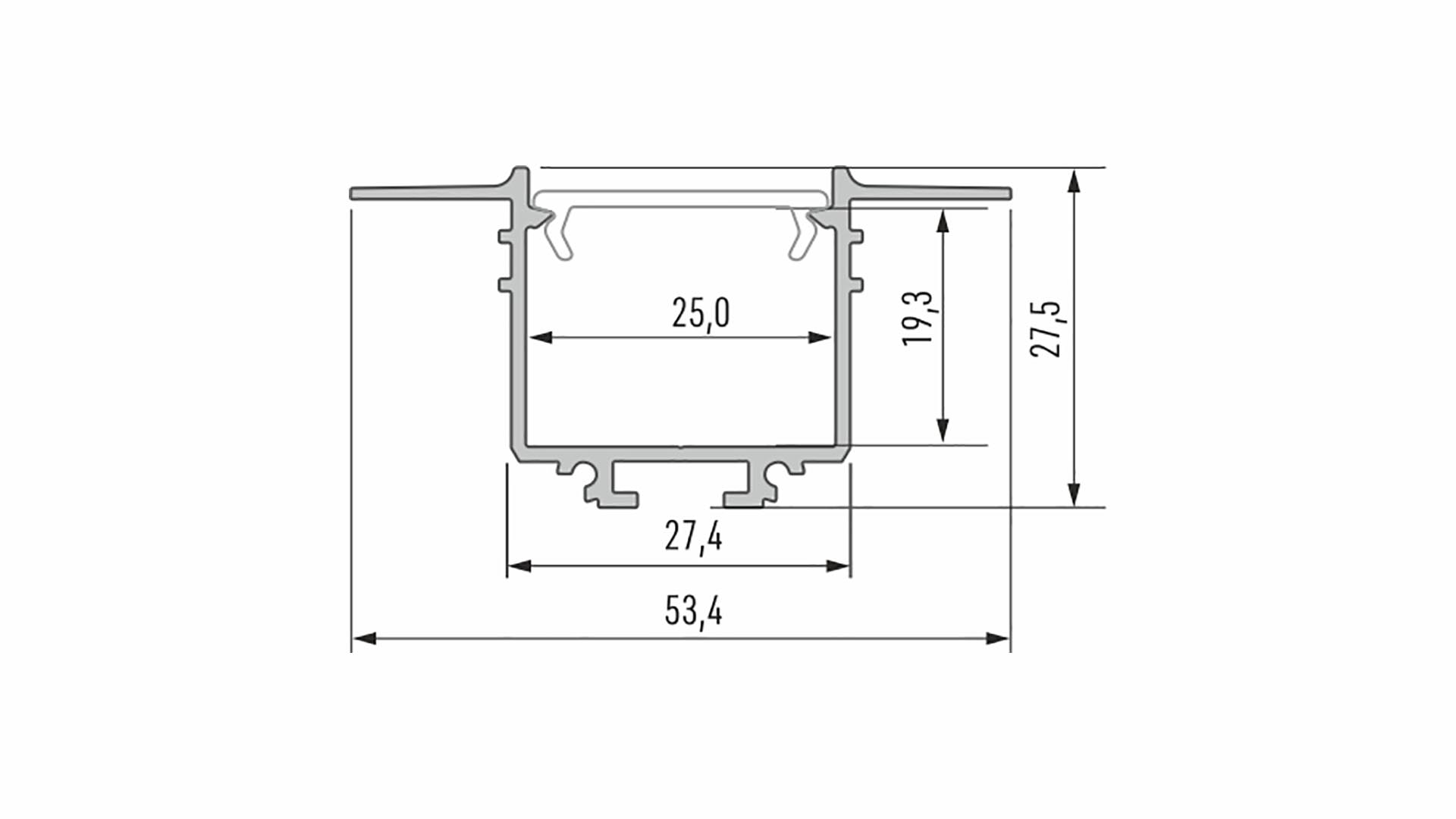

Profile is available in standard lengths: 1000 mm, 2020 mm, 3000 mm.
Installation instructions Subliem profile with diffuser DOUBLE assembly with springs.

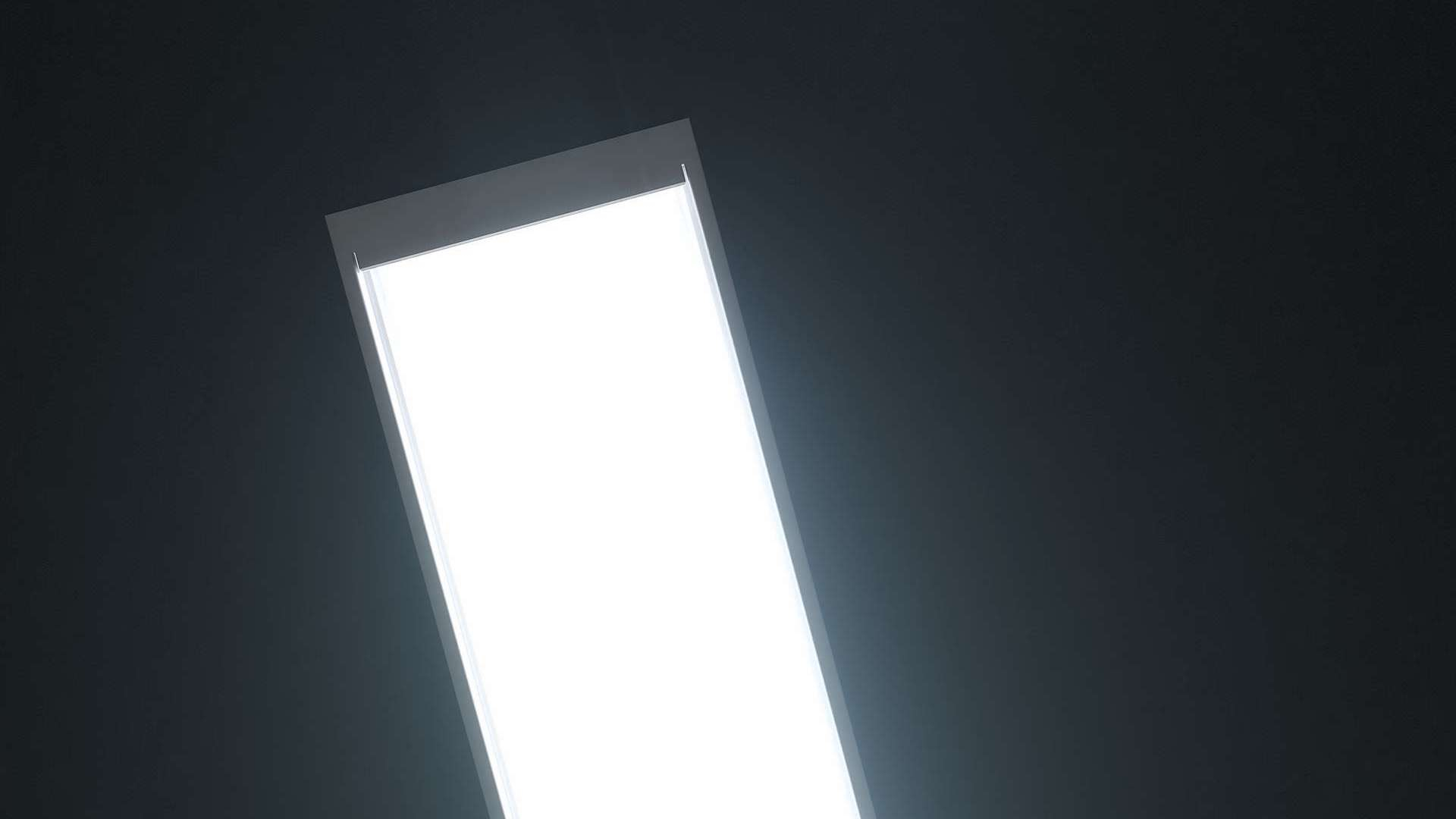

The end result Subli mounting profile with diffuser DOUBLE assembly with springs. View the zagipsowaniu.
Presentation of assembly steps using Subliem profile in the building directly [1. paint, plaster second, third grid 4. The gypsum board].
Scheme assembly elements in the building lighting system using a direct Subliem profile (1) DOUBLE lens (2) of LED strips (3) Subliem plugs the opening, and (4) of the connector straight.
