10-0445-10 EAN: 5904405926994

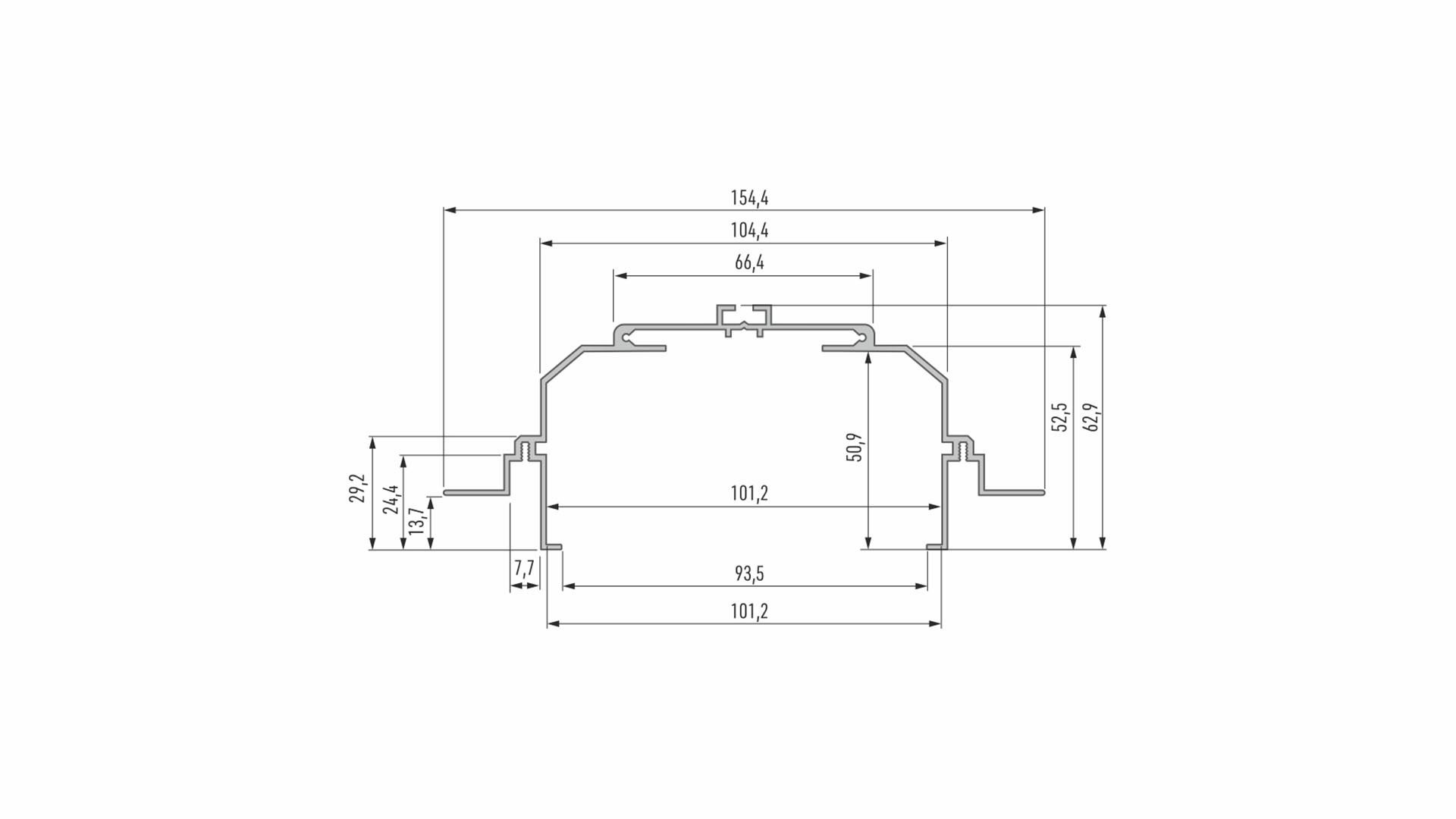

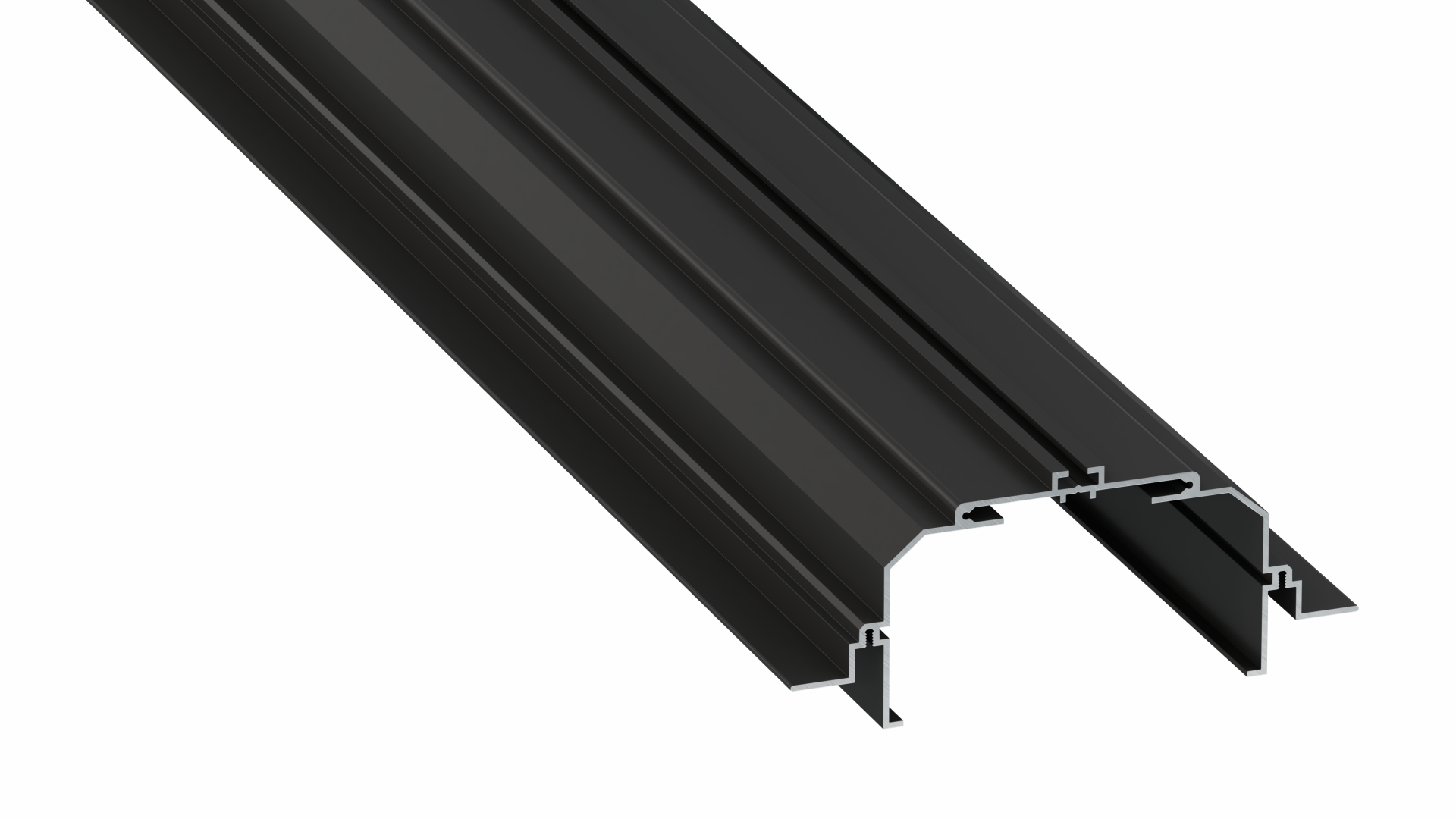

Lumines profile type LARGO M4 lacquered black, 1 m

Your price: Please contact your local distributor
Stock status: app.layout.ui.on_request
Color Black (lacquered)
System LARGO, Largo M4

Lumines profile type LARGO M4 mounting.

Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:

System

Product description

Mounting profile Lumines  LARGO M4  is one of the four mounting profiles for mounting profile LARGO topcoat. The profile has been designed for the installation of LED lighting in the ceiling between the plates with screws and mounting ROSET auxiliary profile, which integrates the entire lighting system.

Profile in two colors:
- profile silver anodized
- profile lacquered white (RAL9016)
- profile lacquered black (RAL9005 mat)​​​​​​​

Mounting:
- by means of mounting screws and the profile of the auxiliary ROSET

Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.



Mounting profile LUMINES profile
Largo M4 Largo, inLargo



Assembly of LARGO profile with SUPER WIDE cover using mounting profile LARGO M4, inter--profile connector LARGO and assembly profile ROSET



Assemble scheme for elements of the lighting system in ceiling using profile LARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end cap LARGO with hole, (3a), end cap LARGO without hole, (4) inter- profile connector LARGO, (5) assembly profile ROSET, (6) mounting profile LARGO M4, (7) end cap LARGO M4 with basic finish, (7a) end cap LARGO M4 with full finish

Assemble scheme for elements of the lighting system in ceiling using profile inLARGO, (1) SUPER WIDE cover, (2) LED strips, (3) end caps inLARGO with holes, (4) straight connectors, (5) inter-profile LARGO connectors, (6) assembly profiles ROSET, (7) mounting profiles LARGO M4, (8) end cap LARGO M4 with basic finish, (8a) end cap LARGO M4 with full finish
