10-0022-10
EAN: 5901854770857
Lumines profile type B anodized black, 1 m
Your price:
Please contact your local distributor
| Stock status: | a lot |
| Purpose | Furniture |
| Type of assembly | recessed |
| Profile length | 1m |
| Color | Black (anodized) |
| System | B |
Color
White (lacquered)
Black (anodized)
Inox (anodized)
Silver (anodized)
Raw
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

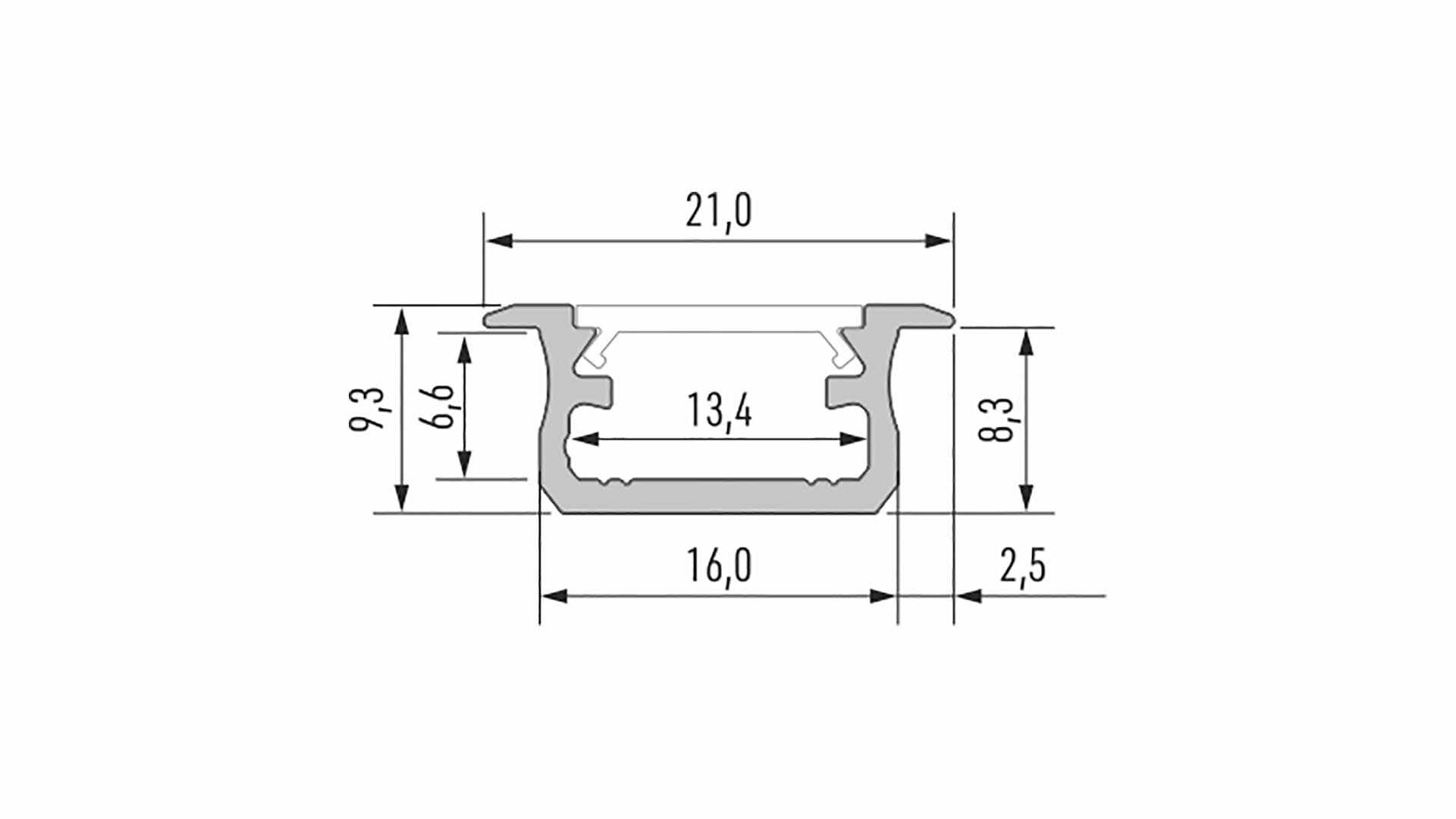

Lumines aluminum profile B to the admission of the milled surface holes.
One of the most modern and minimalist design.
Ideal for mounting inside the milled hole. The minimum required depth of the hole is only 9 mm.
Mounting:
- pressed on to the machined hole or mounting adhesive
color varieties:
- Raw
- anodized silver
- anodized black
- anodized stainless steel,
- painted white (RAL9016)
mounting method:
- double-sided tape
Accessories:
- diffuser BASIC PMMA - transparent, frozen, milky, milky frosted, lens 15, lens 30, black
- diffuser BASIC PC - milk, frozen, transparent
(mounted from push-up)
- dedicated caps with a flat finish made of ABS plastic in 5 color versions
- dedicated caps with a round finish made of ABS plastic in 5 color versions
- dedicated aluminum caps with a round finish in 3 color versions
- touchless switch
Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.
Installation instructions for recessed profile B with a BASIC cover
The end result of installation of recessed profile B with a BASIC cover
Installation of profile B inside a milled groove using stairs as an example
Installation of profile B inside a milled groove (1) with flat end cap, (2) with round end cap
Isometric view before mounting profile B inside the milled groove (1) with flat end cap, (2) with round end cap
Connecting profiles B inside milled groove at an angle of 90°
Assembly scheme for elements of the lighting system using profile B and (1) a BASIC cover, (2) a LED strip, (3) rounded caps with hole
