19-3241-01 EAN: 5901854774640

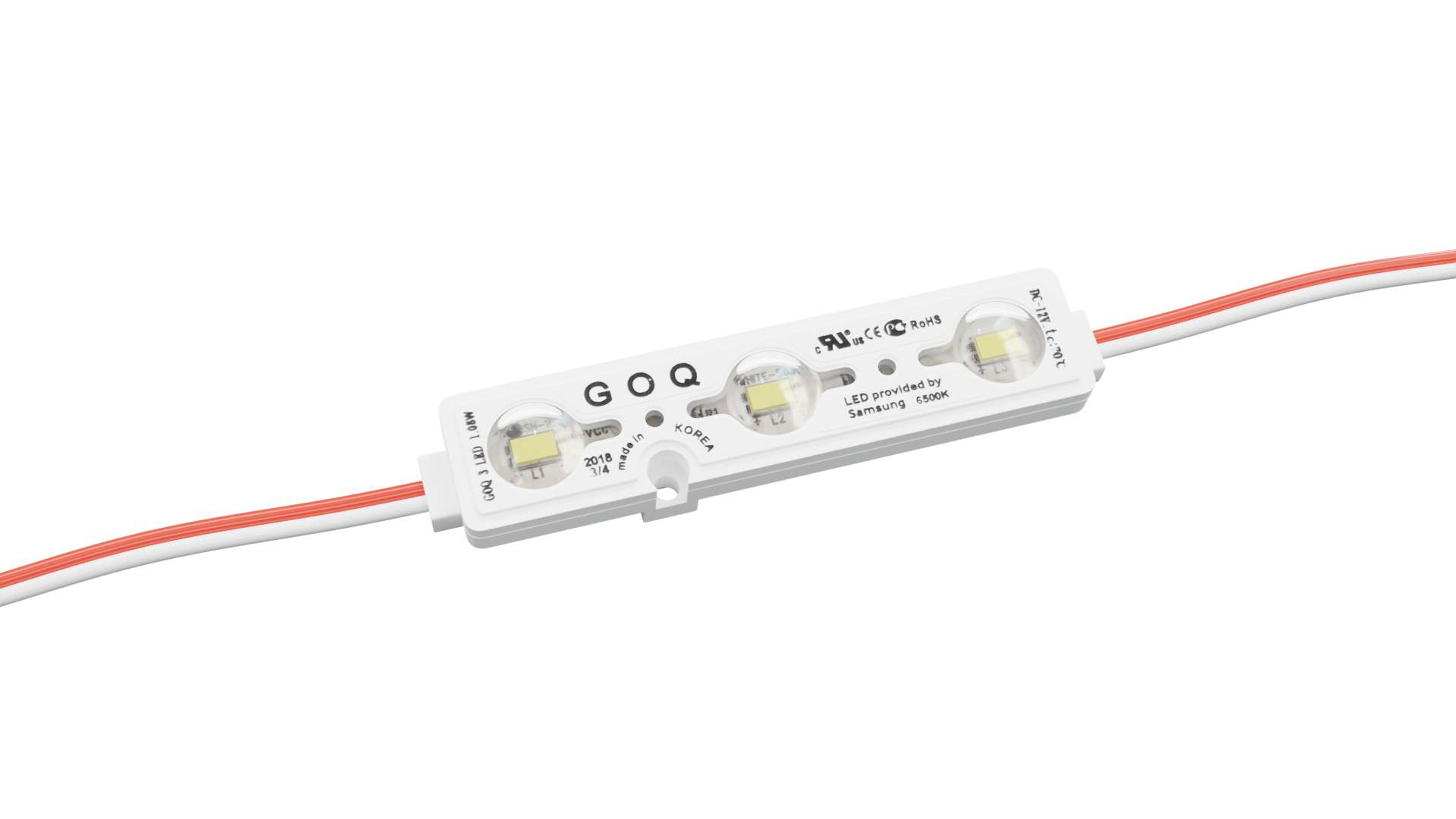

LED Module GOQ SAMSUNG 3xLED 150 degrees Cold white

Your price: €1.49 gross
Stock status: a lot
Color temperature 6500K
Power consumption 1,08W
Number of LEDs 3
Beam angle 150°

Module GOQ SAMSUNG 3xLED 150 degrees Cold White.

Available variants:

Color temperature

Power consumption

Number of LEDs

Beam angle

Product description

GOQ SAMSUNG 3xLED 150 degrees Cold White module is a product built on SAMSUNG LED diodes. LED modules are designed to illuminate block letters and light boxes.

Wider viewing angle thanks to special lenses! LED modules, thanks to their wide lighting angle, are perfect for illuminating surfaces in light boxes. The advertisement will be evenly illuminated and the occurrence of visible light points will be effectively reduced.

LED modules can be connected in a chain of up to 50 pieces, which allows for lighting a medium-sized light box using one power supply. Additionally, the flexibility of the chain of LED modules allows for even lighting of advertisements with complex shapes.

High water resistance allows the modules to be used outdoors. They are resistant even to very unfavorable weather conditions. A special housing protects electronic components against mechanical damage. The modules are characterized by antistatic and anti-shock properties.

Product technical information:
- maximum number of modules in the chain - 50 pcs.
- three super bright SMD LEDs in each module,
- total power consumption of modules: less than 80% of the rated power of the power supply,
- self-adhesive double-sided tape for easy installation
- reliable connection of modules - parallel galvanic (soldered),
- a special housing protecting the module electronics against mechanical damage.

Color temperature: 6500K
Voltage: 12V DC
Power: 1.08 W
Electricity consumption: 90 mA
Stream: 120 lm
Beam angle: 150 degrees
Operating temperature: -30 ~ 85°C
Dimensions: 66 x 15 x 8.5 mm
Diode type: 5630 SMD Samsung
Tightness class: IP68
Cable length: 100 mm
Weight: 8g
Warranty: 5 years
