10-0871-10
EAN: 5904405929926

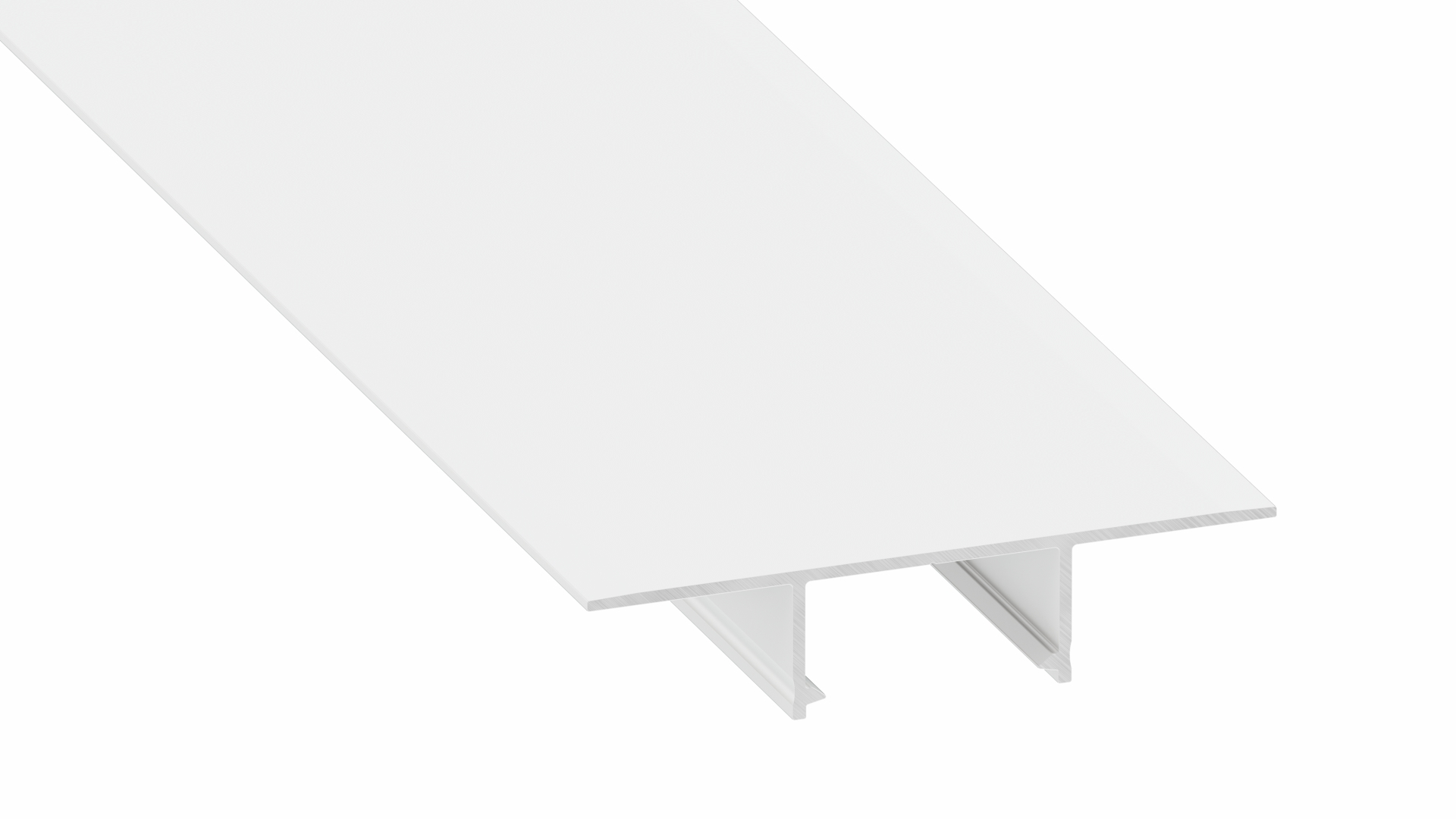

Profile LUMINES type Plato white lacquered 1 m
Your price:
Please contact your local distributor
| Stock status: | average |
| Purpose | Architectural |
| Type of assembly | recessed |
| Profile length | 1m |
| Color | White (lacquered) |
| System | PLATO |
Color
White (lacquered)
Black (lacquered)
Silver (anodized)
Raw
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description
Double LED profile for installation between two plasterboard sheets. Allows for fast installation using screws and finishing with plaster without the need for a mounting mesh.
Color variations:
- anodized silver,
- lacquered white (RAL9016),
- lacquered black (RAL9005 mat),
- nonanodized
Mounting:
- inserted between the plates
COVERS (diffusers):
- DOUBLE (PMMA)
* transparent,
* frozen,
* milky,
* milky frosted,
* black
Mounted from the top, snap-on.
END CAPS:
plastic caps with or without a hole in 4 color variations (white, black, silver, gray)
Other accesories:
- straight connector
- angular transverse connector
- angular connector 90°
- angular connector 120°
Installation instructions for the PLATO profile with a DOUBLE cover recessed between the boards using screws

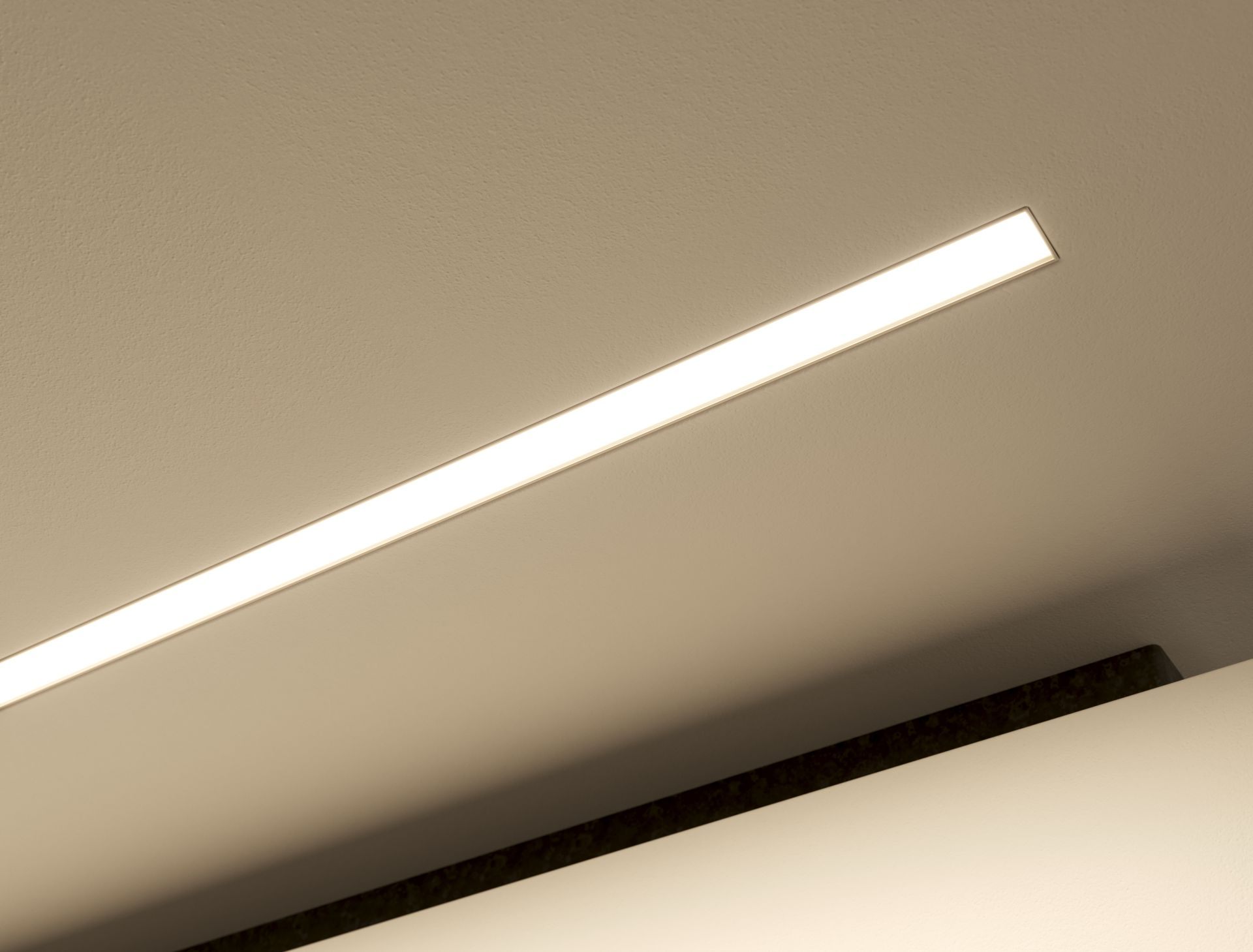

The end result of the installation of the PLATO profile with a DOUBLE cover recessed between the boards, fixed with screws and then covered with a plaster
Assembly schematic for the elements of the lighting system using recessed profile PLATO and (1) a DOUBLE cover, (2) a LED strip, (3) end caps
