25-0000-73
EAN: 6970602181923
Mi-Light RF REMOTE CONTROL 2.4G 4 ZONE RGB+CCT BLACK
Your price:
Please contact your local distributor
| Stock status: | average |
| Type | Pilot/Panel |
| Group | Mi-Light |
| Controll | RGB + CCT |
Available variants:
Type
Group
Controll
Product sold only as a complete set
Product description
MiBOXER controllers are products with a modern and modernist appearance and an interesting and innovative method of operation. The receiver is connected to the remote control using radio waves with a frequency of 2.4GHz. The remote control has light intensity adjustment ranging from 0-100%. The controllers can be paired with receivers and MiBoxer series LED bulbs.
The RGB+CCT strip remote control allows you to control the RGB+CCT LED strip. You can specify 4 independent zones on the remote control, and any number of MiBoxer series receivers can be assigned to each zone (sold individually). The configuration options are virtually endless.
Control 4 zones using one remote control

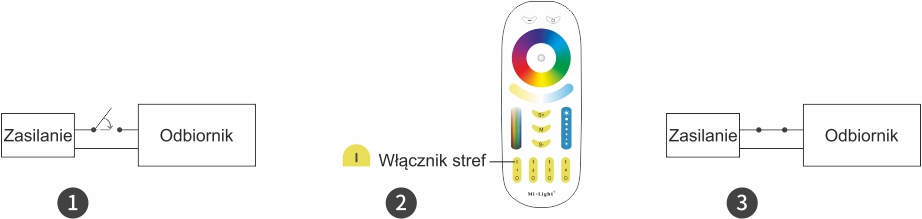

Pairing the remote control with the receiver is extremely simple. You should disconnect the main power supply from the receiver (1), then reconnect the power supply and, within the first 3 seconds, briefly hold down the previously selected channel on the remote control (2). The effect of correct pairing of the devices will be the LED strip (3) blinking three times.
Pairing diagram of the receiver with the remote control
| Power | 2xAAA (3V) |
| Dimensions | |
| Working range | 30m |
| Power consumption in standby mode | 20uA |
| Frequency | 2.4 GHz |
| Number of zones | 4 |
| Operating temperature | -20 -60℃ |
