22-0101-81
EAN: 5904405999905
LUMINES STRADA 24 V 10 W 3000 K IP68 Silver 1 m
Your price:
Please contact your local distributor
| Stock status: | little |
| Purpose | Architectural |
| Type of assembly | recessed |
| Profile length | 1 m |
| Color | Silver (anodized) |
| Color Temperature | 3000K |
| System | STRADA |
Color
Silver (anodized)
Available variants:
Purpose
Type of assembly
Profile length
System
Color Temperature
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description

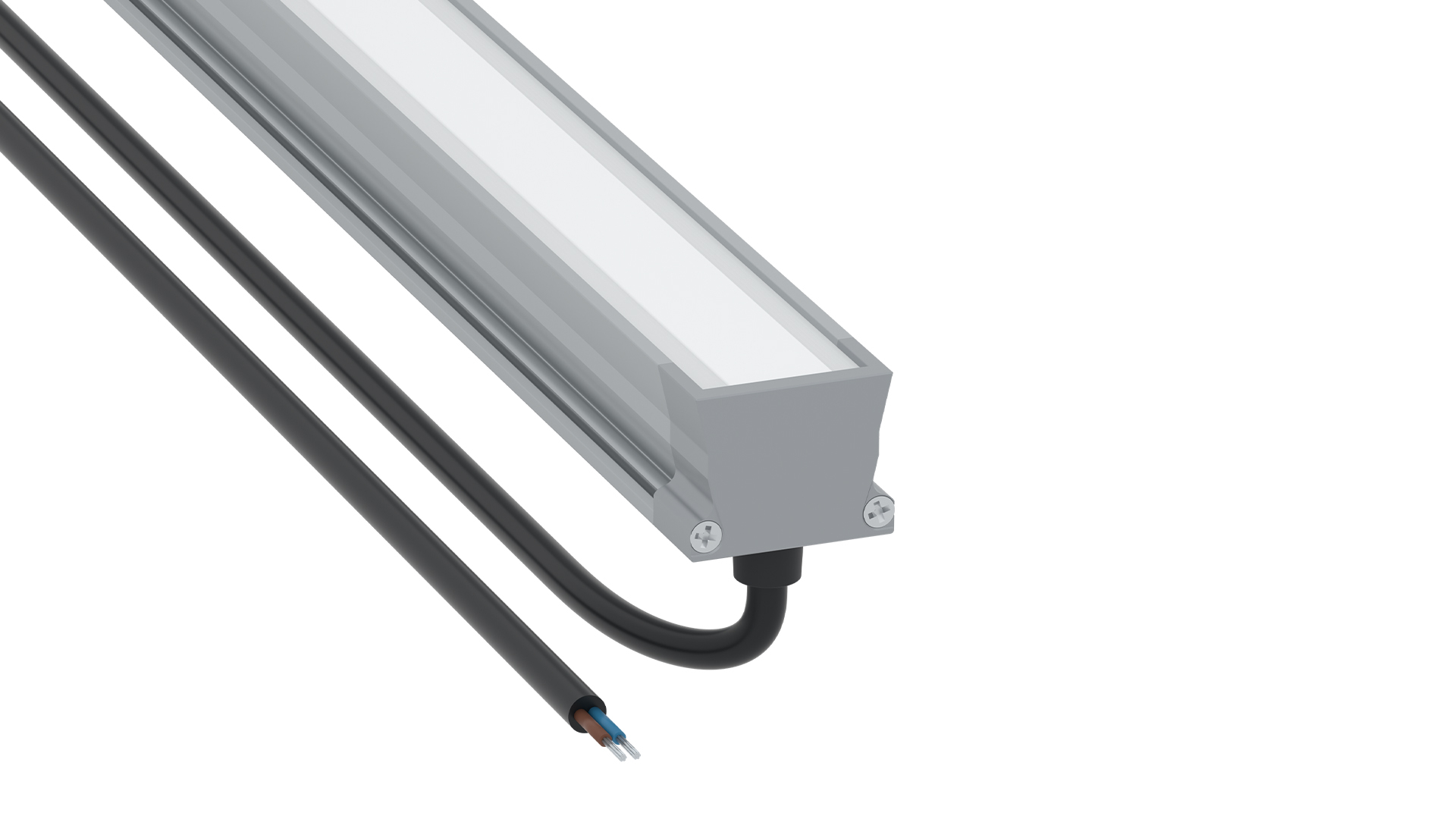

Ready-made LUMINES STRADA LED sets include the STRADA aluminium profile with an LED strip, SOLID cover, end caps and power cable, sealed with polyurethane resin using SealFlow® technology. They create a drive-over line of light designed for installation in areas such as driveways and pavements.
The sets are sealed with polyurethane resin using SealFlow® technology, providing an IP68 degree of protection. They offer high durability and resistance to UV radiation and temperature fluctuations.
The power cable is routed through a dedicated aluminium end cap with a cable gland, allowing the complete luminaire to be connected to the installation while maintaining a sealed connection.
The sets are available in silver anodized finish, in a length of 1 m, and with colour temperatures of 2300 K and 3000 K.
The set includes:
- LUMINES STRADA aluminium profile, silver anodized, 1 m
- PROFI 24 V 1000 LED 2835 SMD 10 W LED strip (2300 K / 3000 K)
- LUMINES SOLID PC opal cover, 1 m
- transparent TAPO end caps for LUMINES SOLID cover
- LUMINES STRADA aluminium end cap, silver anodized
- LUMINES STRADA aluminium end cap, silver anodized, with cable gland
- FR 2 × 0.75 black BITNER cable
Photometric parameters table
| Profile | LED strip | Initial CCT [K] | CCT after sealing [K] | Luminous flux 0.5 m [lm] | Luminous flux 1 m [lm] | Ra | R9 |
|---|---|---|---|---|---|---|---|
| STRADA | 16-2387-01 | 2300 | 2838 | 137 | 274 | 94 | 67 |
| STRADA | 16-2389-01 | 3000 | 4128 | - | 435 | 90 | 46 |
