Unfortunately, the following products are missing: meters
* LED Strips P65, IP67HS, and IP67 sold in 5m, 20m and 25m rolls
* LED Neon Flex sold in 5m rolls
10-1892-20
EAN: 5904405994252

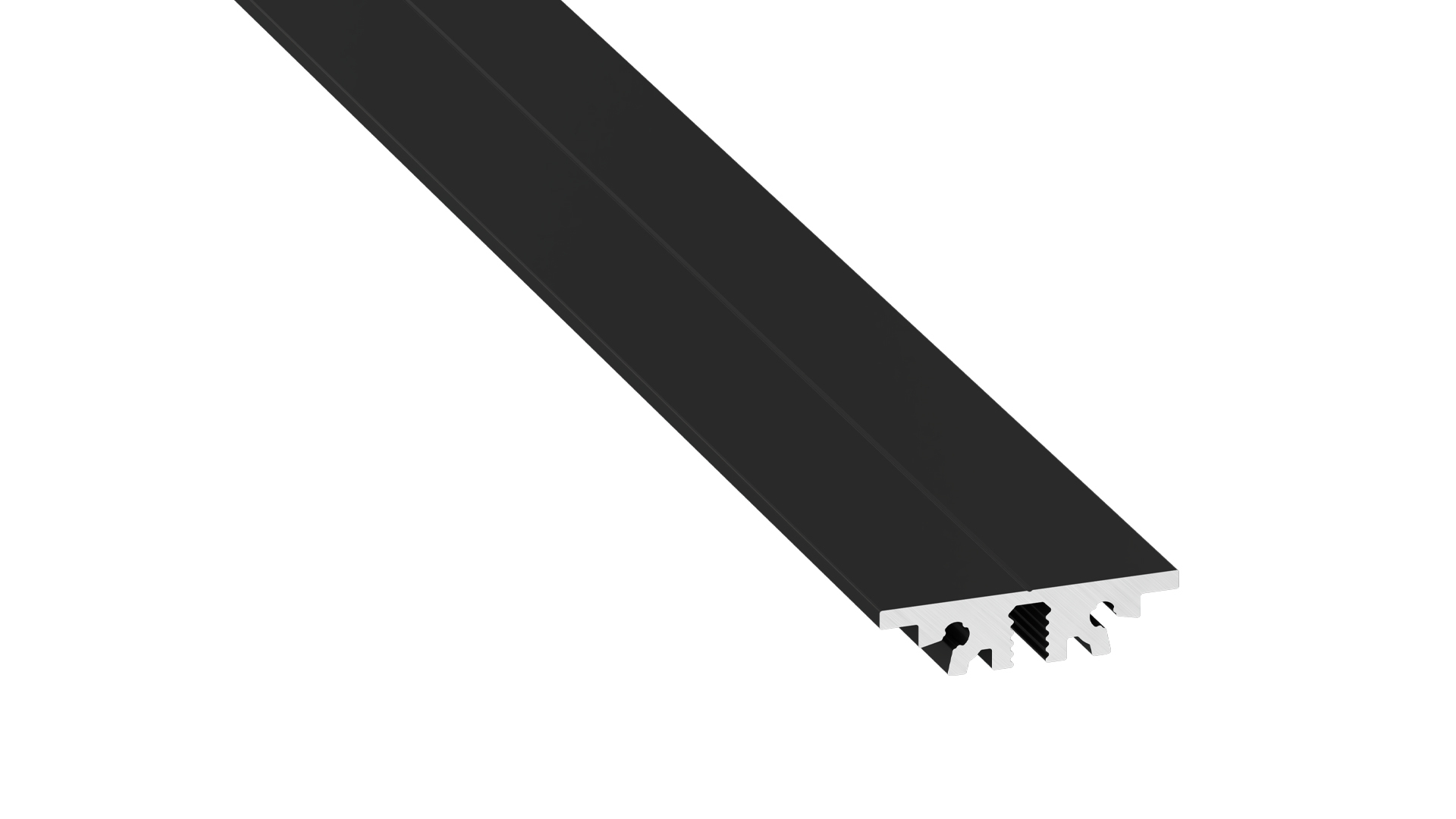

LUMINES SOLVIA Profile anodized black 2.02 m
Your price:
Please contact your local distributor
| Stock status: | average |
| Purpose | Architectural |
| Type of assembly | recessed |
| Type of assembly | surface |
| Profile length | 2 m |
| Color | Black (anodized) |
| System | SOLVIA |
Color
Black (anodized)
White (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
SOLVIA is an LED system dedicated to LUMINES GENESIS magnetic track systems, fully compatible with both surface-mounted and recessed versions.
The LUMINES SOLVIA LED system eliminates the need to rely on standard linear luminaires available within the GENESIS system. Thanks to its refined design, it enables the creation of luminaires precisely tailored to project requirements – both in terms of length and the selected light source.
A precisely matched diffuser and dedicated end caps with sealing, preventing unwanted light leakage, ensure high build quality and visual consistency of the entire installation. At the same time, the system retains all key advantages of magnetic solutions, including the ability to freely reposition the luminaire along the track.
The system allows lighting to be routed across ceilings and walls, as well as creating smooth transitions of the light line between these surfaces. As a result, SOLVIA is well suited for modern architectural designs, highlighting spatial geometry and providing a cohesive, design-oriented appearance.
Available color variants:
- Black anodized
- White lacquered
Compatible covers:
- LUMINES GLIDE Fractal PC opal 1 m (11-3611-10)
- LUMINES GLIDE Fractal PC opal 2,02 m (11-3611-20)
- LUMINES GLIDE Fractal PC opal 3 m (11-3611-30)
Available end caps for the SOLVIA LED system:
- LUMINES SOLVIA end cap black (12-2302-01)
- LUMINES SOLVIA end cap white (12-2301-01)
To integrate the LUMINES SOLVIA LED system with a magnetic track, the following dedicated accessories are required:
- Power supply adapter with 48 V DC system, designed to power the luminaire (37-0159-30)
- Safety adapter with mechanical lock, preventing accidental detachment of the luminaire from the track (37-0160-30)
For optimal performance, the use of 48 V DC LED strips from the LED Labs Lighting range is recommended.
Installation instructions for SOLVIA LED profiles with 48 V adapters for GENESIS magnetic tracks and GLIDE covers using: (1) GENESIS surface-mounted track and screw, (2) GENESIS recessed track T1 and screws, (3) GENESIS trimless track T2, screws and ceiling profiles.
Installation effect of SOLVIA LED profiles with 48 V adapters for GENESIS magnetic tracks and GLIDE covers using: (1) GENESIS surface-mounted track and screw, (2) GENESIS recessed track T1 and screws, (3) GENESIS trimless track T2, screws and ceiling profiles.
Installation diagram of GENESIS lighting system components using SOLVIA LED profile and: (1) GENESIS surface-mounted track, (2) safety adapter, (3) 48 V adapter, (4) end caps without holes, (5) LED strip, (6) GLIDE cover.
Installation diagram of GENESIS lighting system components using SOLVIA LED profile and: (1) GENESIS recessed track T1, (2) safety adapter, (3) 48 V adapter, (4) end caps without holes, (5) LED strip, (6) GLIDE cover.
