22-0101-79
EAN: 5904405999882
LUMINES SILEDA 24 V 60 W 3000 K IP68 Silver 3 m
Your price:
Please contact your local distributor
| Stock status: | none |
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 3 m |
| Color | Silver (anodized) |
| Color Temperature | 3000K |
| System | SILEDA |
Color
Silver (anodized)
Available variants:
Purpose
Type of assembly
Profile length
System
Color Temperature
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description

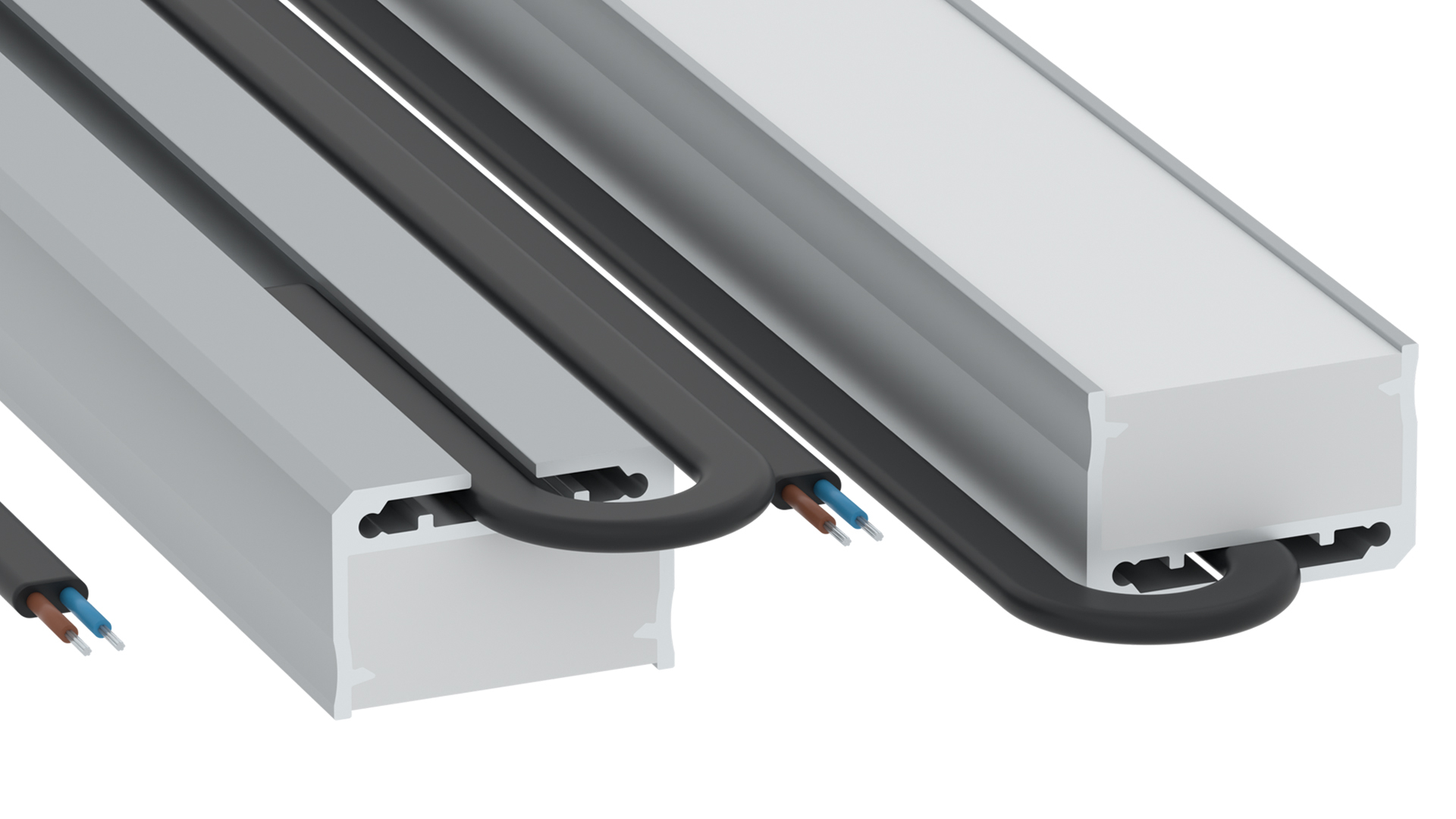

Ready-made LUMINES SILEDA LED sets include the SILEDA aluminium profile with an LED strip and power cables, sealed with polyurethane resin using SealFlow® technology. They are designed for surface-mounted installation using two parallel rows of LED strip.
The sets are sealed with polyurethane resin using SealFlow® technology, providing an IP68 degree of protection. They offer high durability and resistance to UV radiation and temperature fluctuations.
Power cables are routed out from both ends of the set through the rear of the profile. The cable exit points are protected with sealing compound, which helps maintain the tightness of the complete luminaire.
The sets are available in silver anodized finish, in lengths of 2.02 m and 3 m, and with colour temperatures of 2300 K and 3000 K.
The profile can be cut to any required length.
The set includes:
- LUMINES SILEDA aluminium profile, silver anodized (2.02 m / 3 m)
- PROFI 24 V 1000 LED 2835 SMD 10 W LED strip (2300 K / 3000 K)
- OMYp / H03VVH2-F 2 × 0.5 mm² black 300/300 V cable
Photometric parameters table
| Profile | LED strip | Initial CCT [K] | CCT after sealing [K] | Luminous flux 0.5 m [lm] | Luminous flux 1 m [lm] | Ra | R9 |
|---|---|---|---|---|---|---|---|
| SILEDA | 16-2387-01 | 2300 | 2788 | 478 | 956 | 94 | 64 |
| SILEDA | 16-2389-01 | 3000 | 3743 | 495 | 990 | 89 | 39 |
