Unfortunately, the following products are missing: meters
* LED Strips P65, IP67HS, and IP67 sold in 5m, 20m and 25m rolls
* LED Neon Flex sold in 5m rolls
22-0101-11
EAN: 5904405999202
LUMINES SFERO 24 V DC 14 W 4000 K N2 black 1 m
Your price:
Please contact your local distributor
| Stock status: |
To order
|
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 1 m |
| Color | Black (anodized) |
| Color Temperature | 4000K |
| System | SFERO |
Color
Silver (anodized)
Black (anodized)
Available variants:
Purpose
Type of assembly
Profile length
System
Color Temperature
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
The complete LUMINES SFERO LED set includes the SFERO profile, SFERO FLEX LED neon strip, and compatible accessories selected for the specific mounting method.
Mounting variant:
N2 – surface-mounted, perpendicular to the mounting surface
For wall mounting, the recommended maximum profile length is 1 m, excluding mounting components and the end cap. For longer profiles, ceiling mounting is recommended.
Set contains:
- LUMINES SFERO PC opal profile 1 m
- LUMINES SFERO FLEX 24 V DC 14 W/m 4000 K Ra95 IP65
- LUMINES SFERO FLEX end cap
- LUMINES SFERO FLEX end cap with hole
- LUMINES SFERO MS3 aluminum end cap, black anodized – set
- LUMINES SFERO MS1 aluminum end cap, black anodized
- TLGYp cable 2 × 0.50 mm², black
- Transparent WAGO installation connector 2 × 4
Available color variants:
- Black anodized
- Silver anodized
Other mounting variants:
N1 – surface-mounted, parallel to the mounting surface
W1 – suspended, parallel to the mounting surface
W2 – suspended, perpendicular to the mounting surface
NW1 – surface-mounted and suspended, mounted to the wall and additionally secured to the ceiling with a suspension cable
LUMINES SFERO is a linear lighting system with 360° light emission. The round profile, combined with the SFERO FLEX LED neon strip, provides a uniform line of light without visible LED dots.
Depending on the selected set, the system can be surface-mounted or suspended, parallel or perpendicular to the mounting surface.
Wall mounting
Assembly instructions for wall mounting of the SFERO LED profile using: (1) the two-piece SFERO MS3 end cap and (2) the SFERO MS1 end cap without a hole.
Mounting effect of the SFERO LED profile on the wall using the two-piece SFERO MS3 end cap and the SFERO MS1 end cap without a hole.
Ceiling mounting

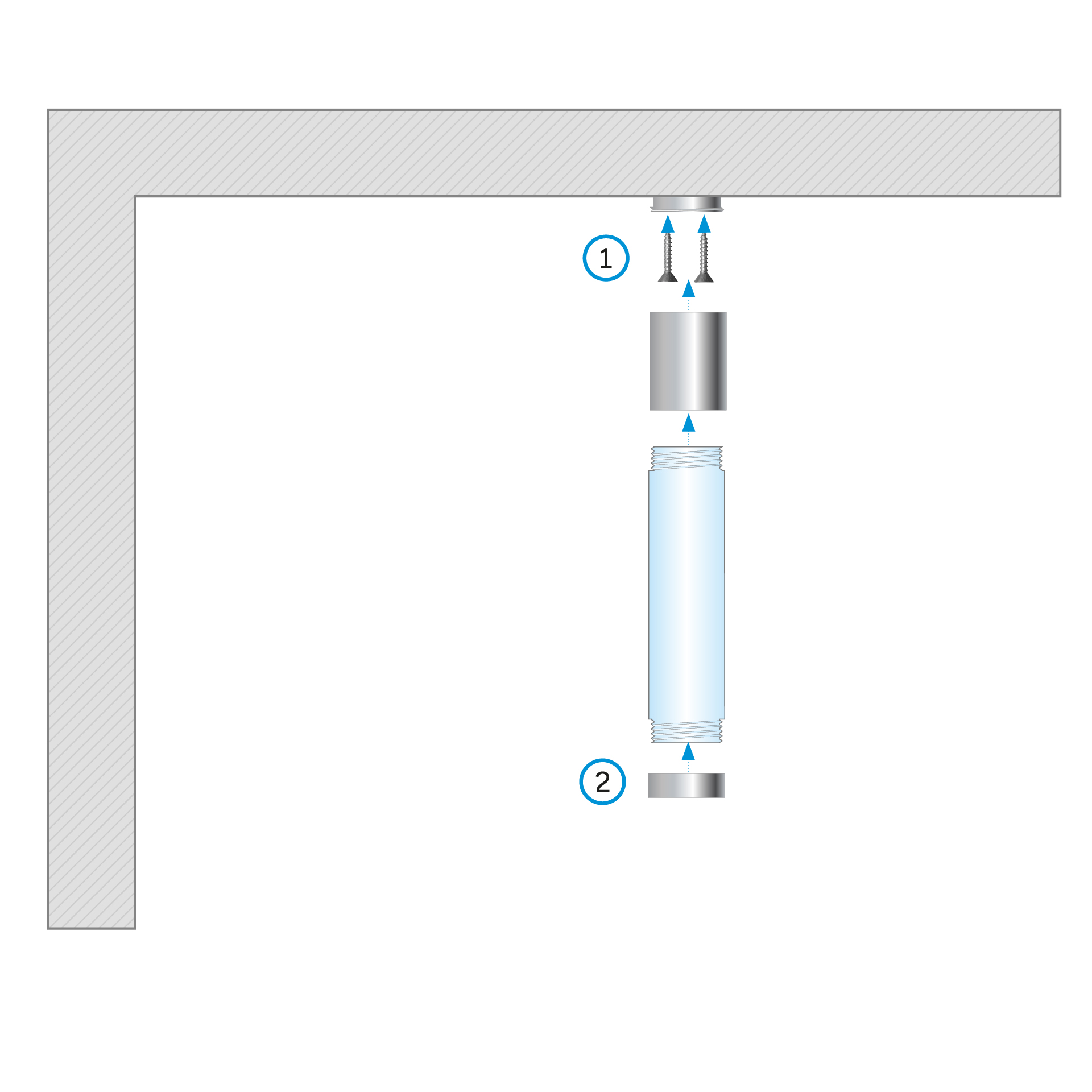

Assembly instructions for ceiling mounting of the SFERO LED profile using: (1) the two-piece SFERO MS3 end cap and (2) the SFERO MS1 end cap without a hole.
Mounting effect of the SFERO LED profile on the ceiling using the two-piece SFERO MS3 end cap and the SFERO MS1 end cap without a hole.
