10-0345-20
EAN: 5904405920237

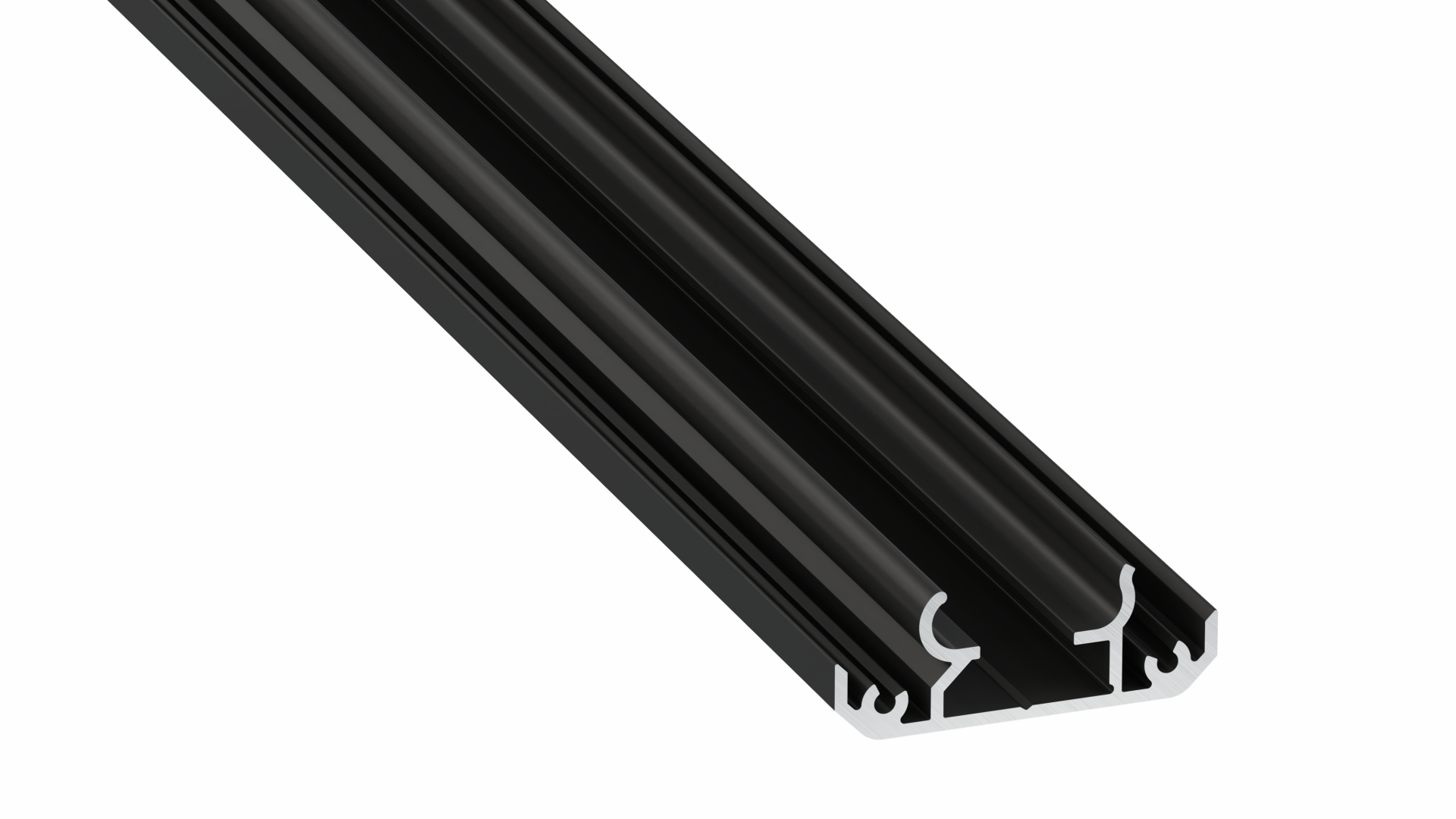

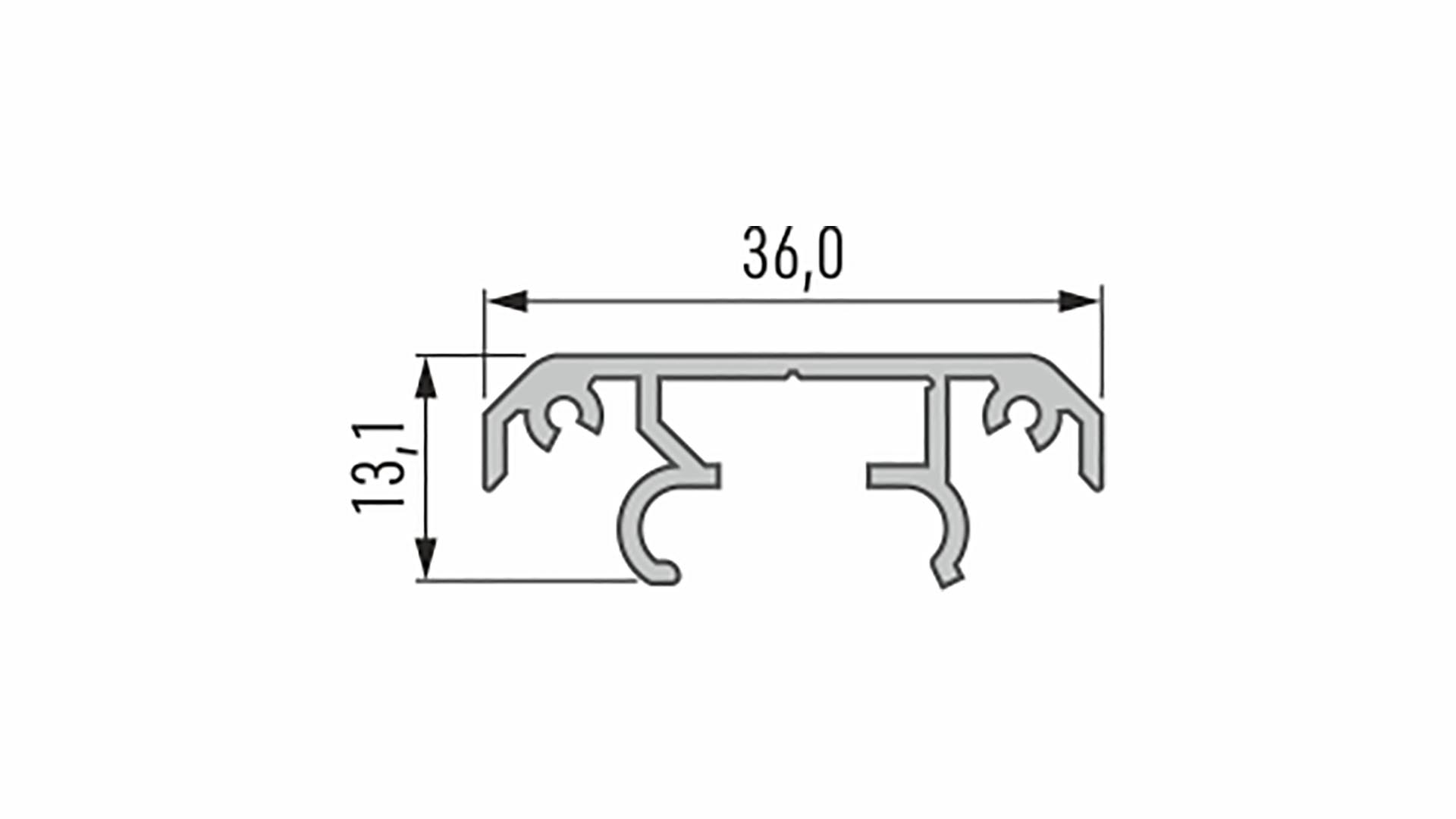

Lumines profile type Talia M1 lacquered black, 2,02 m
Your price:
Please contact your local distributor
| Stock status: |
app.layout.ui.on_request
|
| Color | Black (lacquered) |
| System | UNICO, DOPIO, TALIA, Talia M1 |
Lumines profile type TALIA M1 mounting.
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
System
Product sold only as a complete set
Product description
Mounting profile TALIA M1 is one of four mounting profiles Profile TALIA topcoat. TALIA assembly profile in the profile TALIA M1 is carried out by the method "click-click" in a specially shaped groove, which facilitates the assembly on wall or ceiling.
Profile TALIA M1 has been designed a special system connectors TALIA profile, which facilitates the installation of longer sections of profiles in one line.
Colors:
- profile silver anodized
- profile lacquered white (RAL9016)
- profile lacquered black (RAL9005 mat)
Mounting:
- by means of mounting screws
Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.
| Mounting profile | LUMINES profile |
| Talia M1 | Unico, Dopio, Talia |
Installation of TALIA profile with DOUBLE cover using the mounting screw and TALIA M1 mounting profile
nd result of assembly of TALIA profile with DOUBLE cover using the mounting screw and TALIA M1 mounting profile
Assembly scheme for elements of the lighting system using profile TALIA, (1) DOUBLE cover, (2) LED strips, (3) end cap TALIA + M1 with hole, (3a), end cap TALIA + M1 without hole, (4) cable gland, (5a) right TALIA connector, (5b) left TALIA connector, (5c) connector TALIA M1, (6) TALIA M1 mounting profile
Assembly of TALIA profile system using profile connectors and mounting profile TALIA M1
