10-0775-10
EAN: 5904405919477

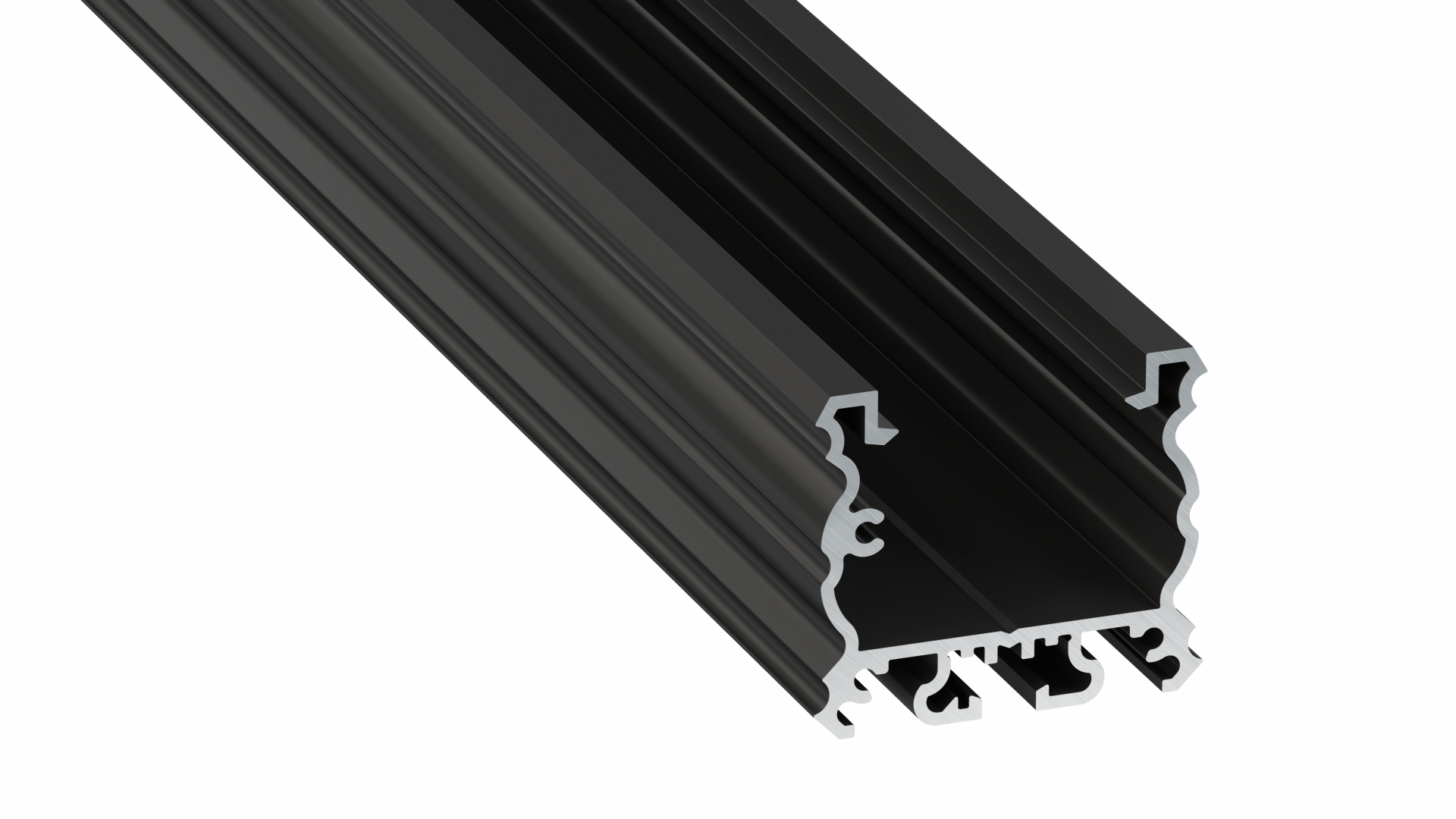

Lumines profile type TALIA lacquered black, 1 m
Your price:
Please contact your local distributor
| Stock status: |
app.layout.ui.on_request
|
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 1m |
| Color | Black (lacquered) |
| System | TALIA |
LUMINES "TALIA" surface architectural profile
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description
Profile TALIA Lumines is the aluminum profile surface, architectural - for use in construction. Designed for building lighting systems using two LED strips.
Color variations:
- anodized silver,
- lacquered white (RAL9016),
- lacquered black (RAL9005 mat)
Mounting:
mounting profiles TALIA M1/M2/M3/M4
Accessories for aluminum profile TALIA Lumines
COVERS (diffusers):
- DOUBLE (PMMA)
* transparent,
* milky,
* frozen,
* milky frosted,
* black
Mounted from the top, snap-on.
- LUMINES raster DOUBLE cover
END CAPS:
aluminium caps with or without a hole in 3 color variations (white, silver, black)
MOUNTING PROFILES:
mounting profile TALIA M1,
mounting profile TALIA M2,
mounting profile TALIA M3,
mounting profile TALIA M4
OTHER ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
cable gland
Installation of TALIA profile with DOUBLE cover using the mounting screw and TALIA M1 mounting profile
End result of assembly of TALIA profile with DOUBLE cover using the mounting screw and TALIA M1 mounting profile
Installation of TALIA profile with DOUBLE cover and hidden power supply inside of the mounting profile TALIA M2
End result of assembly of TALIA profile with DOUBLE cover and hidden power supply inside of the mounting profile TALIA M2
Connecting profiles TALIA using straight connector
Connecting profiles TALIA using angular connector
Scheme assembly elements of the lighting system using the profile waist, (1) lens DOUBLE (2) LED strips (3) caps TALIA + M1 having an opening (3a), plug TALIA + M1 without the hole (4) packing box (5a ) of the connecting TALIA right (5b) of the connector TALIA left (5c) of the connector TALIA M1 (6) of the profile mounting TALIA M1
The principle of mounting profile system TALIA using profile connectors and mounting profile TALIA M1
Installation instructions using profile TALIA TALIA M3 mounting profile on the ceiling using the mounting springs
The effect of coupling międzyprofilowego TALIA for changing the angle position of the profile TALIA the application profile for the mounting TALIA M3 zagipsowanym fragment profile
Scheme assembly elements of the lighting in the ceiling by means of the profile waist, (1) lens DOUBLE (2) LED strips (3) caps TALIA with an opening (3a), plug deck of cards without the hole (4) of the connector międzyprofilowego waist (5 ) TALIA M3 mounting profile (6) M3 plug TALIA finish straight (6a) of the plug TALIA M3 full finish (7), the spring assembly
Installation Instructions TALIA profile using a mounting profile TALIA M4 in the ceiling by using the profile of the auxiliary ROSET, międzyprofilowego waist region and the connector mounting screws
The effect of coupling międzyprofilowego TALIA for changing the angle position of the profile TALIAin the application profile for the mounting TALIA M4
Scheme assembly elements of the lighting in the ceiling by means of the profile TALIA, (1) lens DOUBLE (2) LED strips (3) caps TALIA with an opening (3a), plug deck of cards without the hole (4) of the connector międzyprofilowego TALIA (5 ) ROSET auxiliary profile (6) of the profile mounting TALIA M4 (7), plug TALIA M4 finish straight (7a) end caps TALIA M4 finish full
