10-1114-30 EAN: 5904405935231

Lumines profile type Strada M3 anodized silver, 3 m

Your price: Please contact your local distributor
Stock status: none
Color Silver (anodized)
System STRADA, Strada M3, Strada M1 + M3

Color
Silver (anodized)
Available variants:

System

Product description

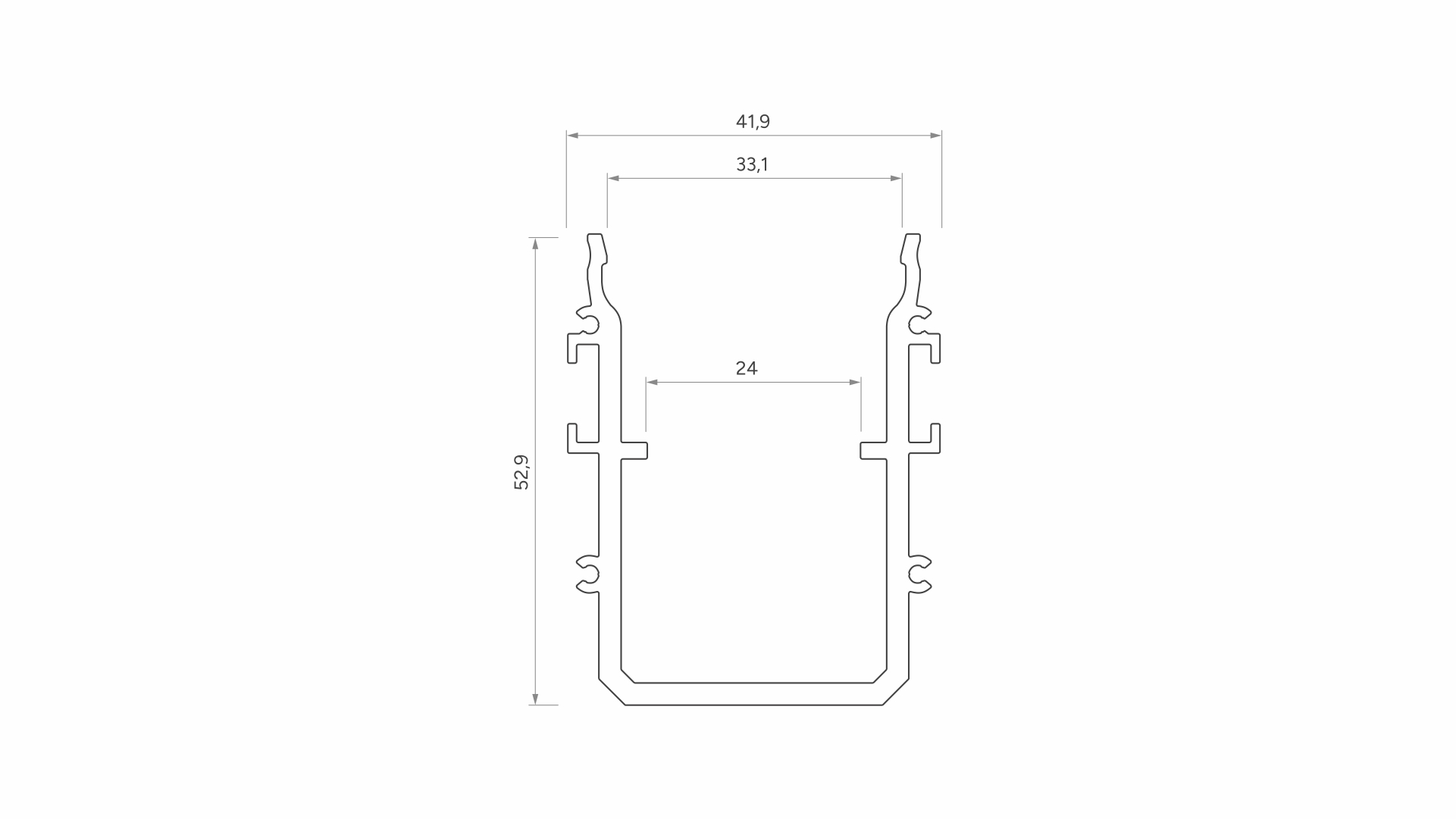

STRADA M3 mounting profile allows the STRADA LED profile to be fixed in the ground to create a complete STRADA lighting system and to place wires and their connection elements inside the profile's structure.

Color variations:
- anodized silver

Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.



Assembly scheme for elements of the lighting system using the STRADA LED profile,(1) SOLID cover, (2) LED strip, (3) TAPO caps for the SOLID cover, (4a) caps with a STRADA hole, (4) STRADA caps without a hole, (5 ) mounting bracket, (9) STRADA M1 mounting profile, (6) plug without a STRADA M1 hole, (11) straight connector, (7) plug with a STRADA M3-M1 hole, (10) STRADA M3 mounting profile and (8) plug without hole STRADA M3

Assembly scheme for elements of the lighting system using the STRADA LED profile, (1) SOLID cover, (2) LED parameter, (3) TAPO caps for the SOLID cover, (4) caps with a hole STRADA, (4a) caps without a hole STRADA, (5) mounting bracket, (7) STRADA M1 mounting profile, (6) caps with a hole STRADA M1 and (6a) caps without a hole STRADA M1.
