10-0001-25
EAN: 5904405900529
Lumines profile type Q20 anodized inox, 3 m
Your price:
Please contact your local distributor
| Stock status: | average |
| Purpose | Furniture |
| Type of assembly | surface |
| Profile length | 3m |
| Color | Inox (anodized) |
| System | Q20 |
Color
White (lacquered)
Black (anodized)
Inox (anodized)
Silver (anodized)
Raw
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

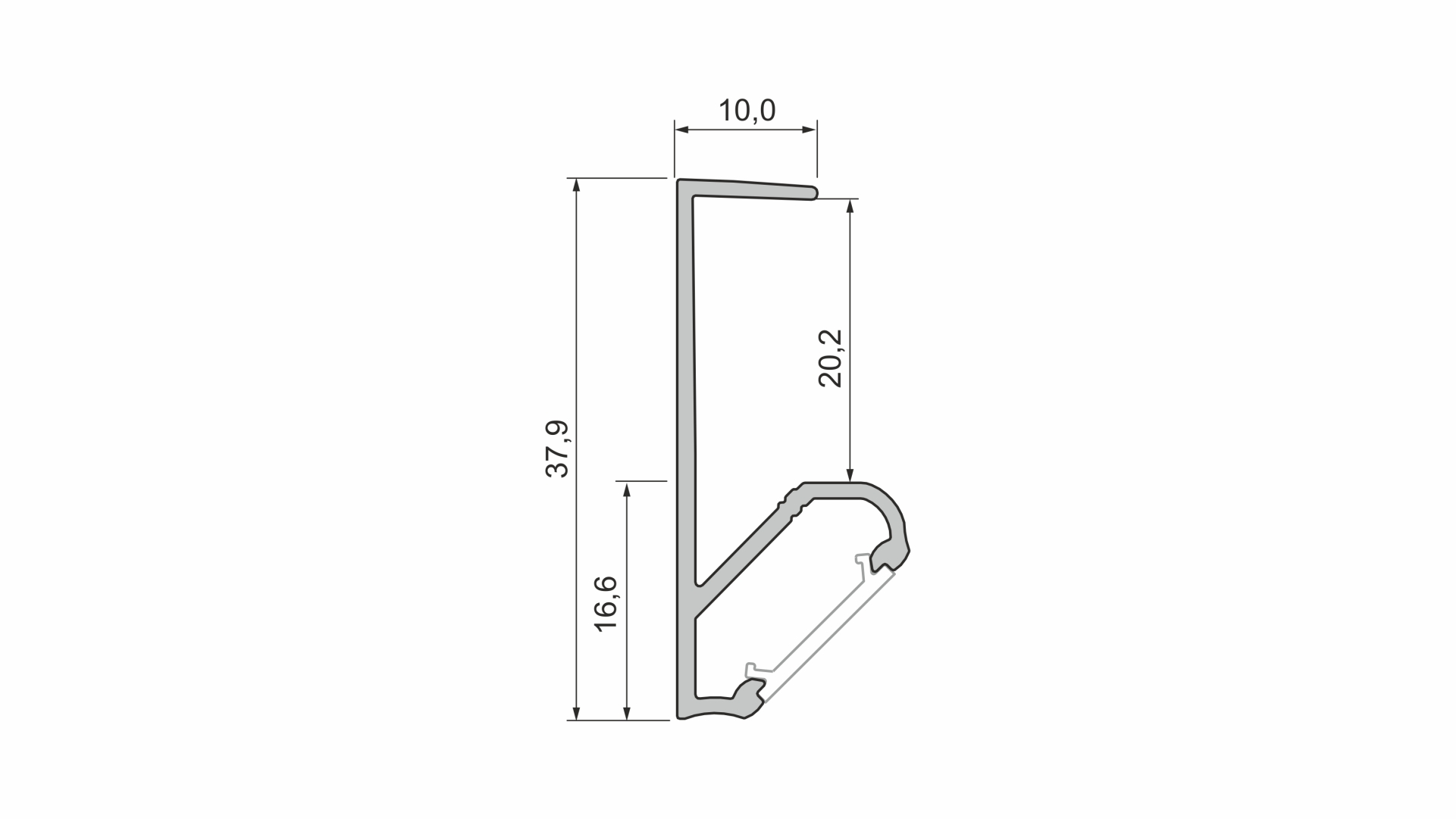

LUMINES Q20 type aluminum profile is a 45° angle profile dedicated to shelves, wardrobes, countertops, etc. Adapted for mounting on 20 mm thick furniture boards.
LED strip width:
up to 12 mm
Color versions:
- raw aluminium,
- silver anodized profile,
- black anodized profile,
- inox anodized profile,
- white lacquered profile (RAL9016)
Accessories for the LUMINES Q20 aluminum profile
COVERS:
- BASIC
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* milk frosted (PMMA),
* lens 15 (PMMA),
* lens 30 (PMMA),
* black (PMMA)
Click-in mounted
The profile is available in standard lengths: 1000 mm, 2020 mm, 3000 mm.
Installation instructions for profile Q20 with a BASIC cover, using a double-sided tape
The end result of installing profile Q20 with a BASIC cover using double-sided tape
Installation instructions for profile Q20 with a BASIC cover with the mounting glue
The end result of the assembly of the Q20 profile with a BASIC cover with the mounting glue
The method of connecting Q20 profiles with a shelf
Diagram of the power cord routing along with the installation of the lighting system using the Q20 profile, LED strip and Basic type cover
Diagram of assembling the lighting system using the Q20 profile, (2) LED strip, (1) Basic lampshade and (3) double-sided mounting tape
