10-1134-10
Lumines profile type inFLEXA anodized silver, 1 m
Your price:
Please contact your local distributor
| Stock status: | a lot |
| Purpose | Architectural |
| Type of assembly | recessed |
| Profile length | 1m |
| Color | Silver (anodized) |
| System | inFLEXA |
Color
White (lacquered)
Black (lacquered)
Silver (anodized)
Raw
Available variants:
Purpose
Type of assembly
Profile length
System
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
Recessed version of the FLEXA system. It allows you to create smooth, continuous lines of light, flush with the surface of the ceiling or wall, including curved sections. The system supports connectors, allowing you to create complex Lighting arrangements, and works particularly well in light arches in walls and on columns.
Table of minimum bending radius for LUMINES profiles
| Type of bending | Lighting direction (position of the cover in the fixture) | FLEX cover | PMMA/PC cover |
| horizontal (transverse) | down | 475 | — |
| vertical | inward | 350 | 350 |
| vertical | outward | 150 | 150 |
Minimum bending radius (mm) for the given cover. Max. circle diameter: 1850 mm (from a 6 m profile).
Tolerance: +/- 5%. Production end allowances: 250 mm. Bent profiles are available only in a lacquered finish.
Bending service available upon prior contact with customer service.

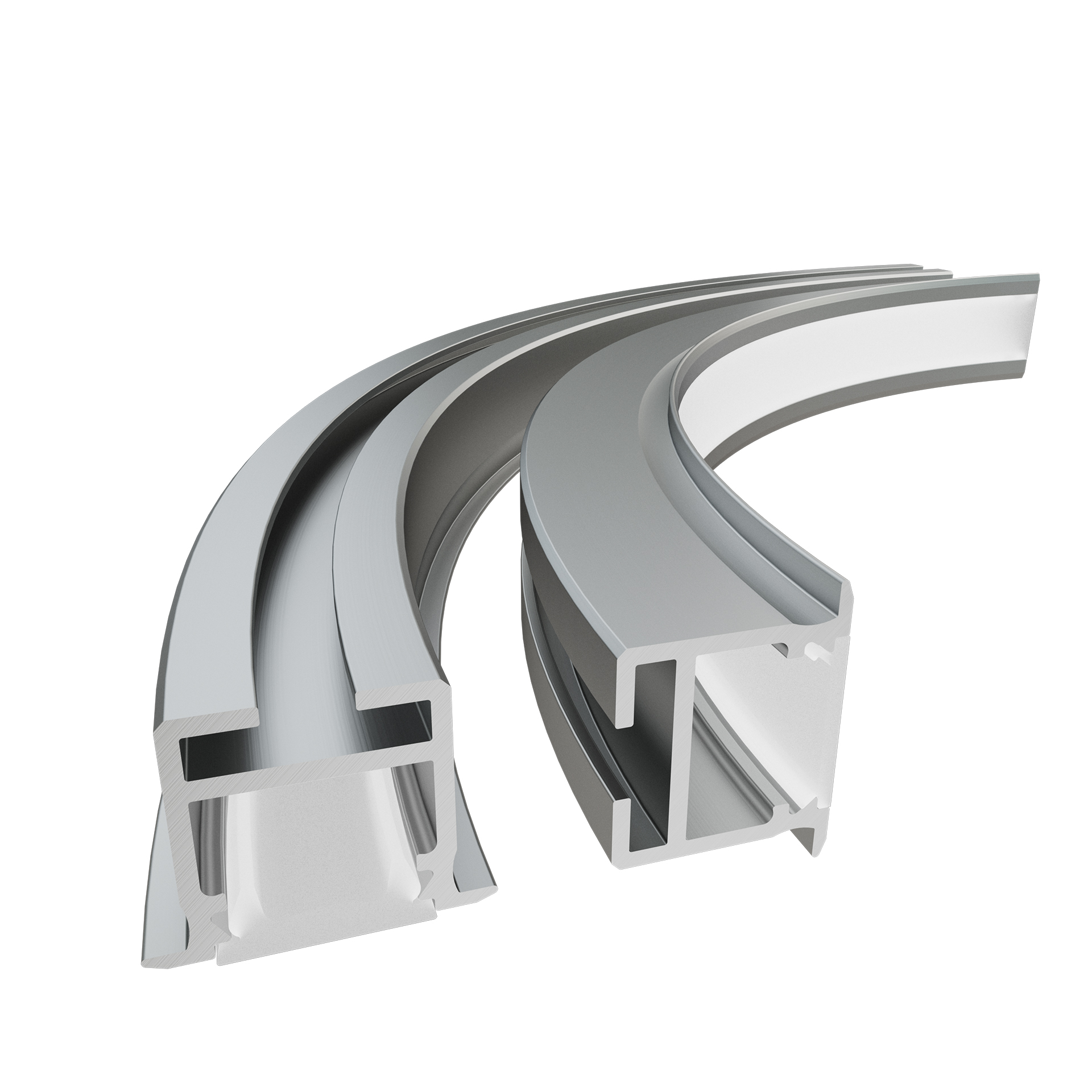

Comparison of the horizontally bent inFLEXA profile with the vertically bent inFLEXA profile (light direction: inside)

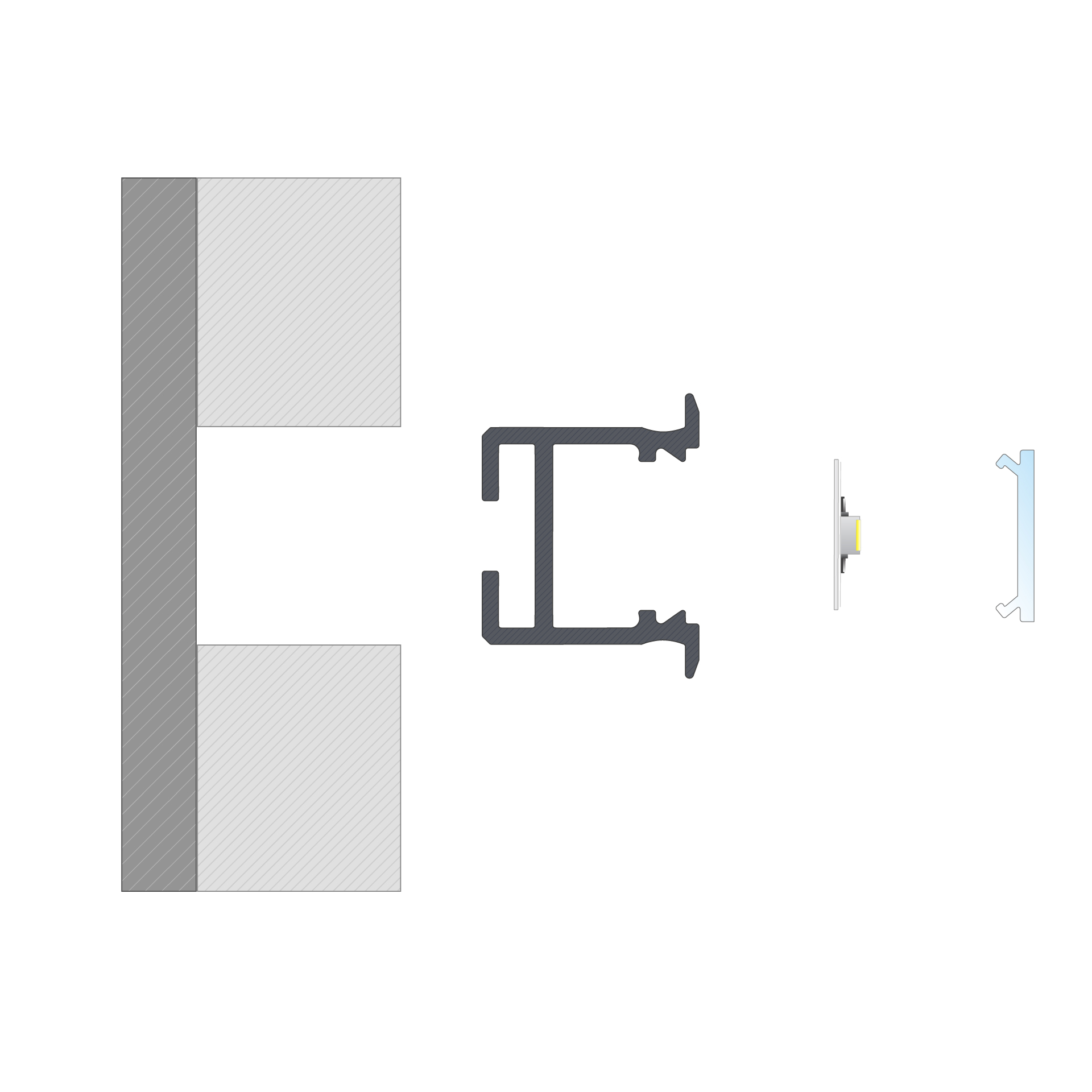

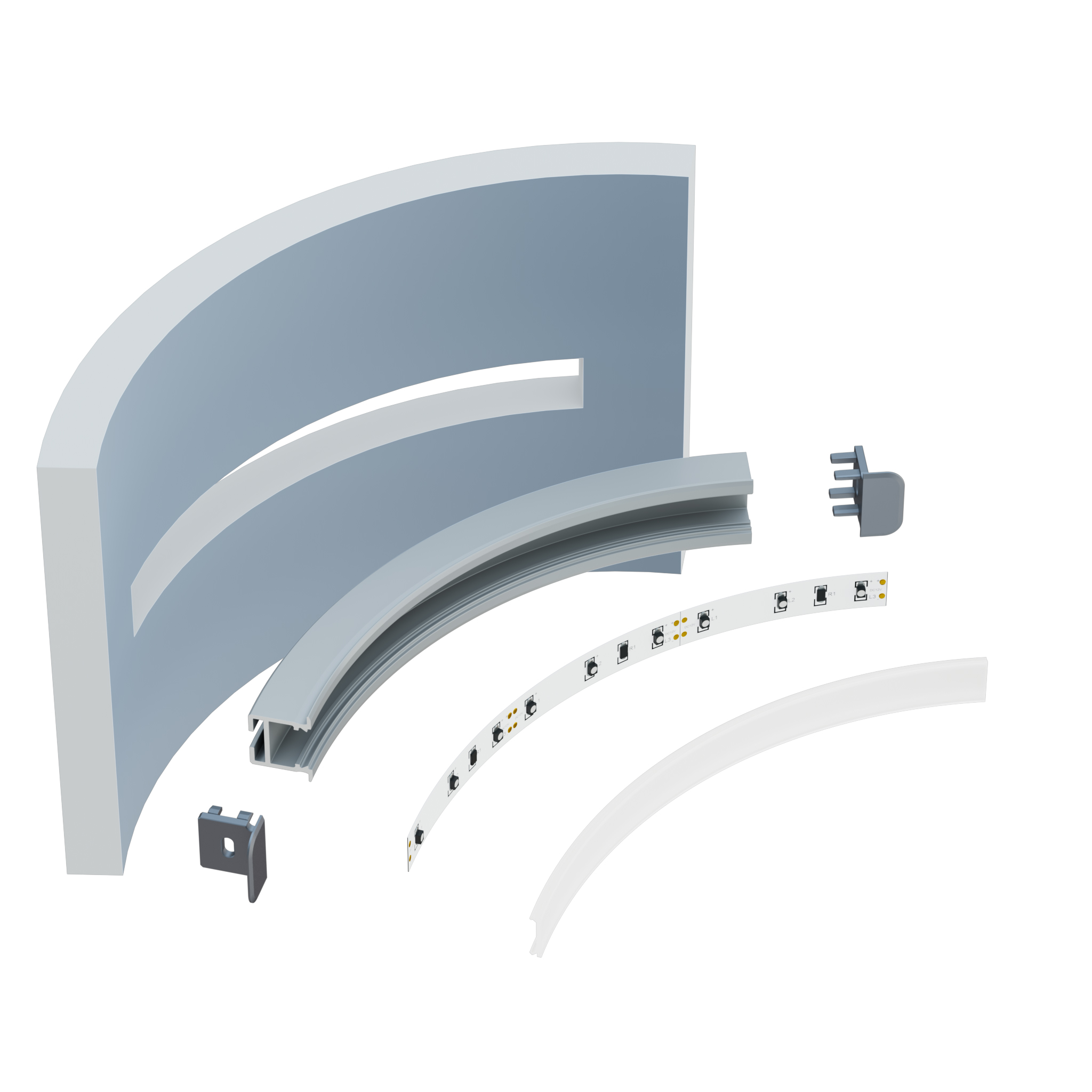

Assembly diagram of the Lighting system elements using the inFLEXA profile, BASIC cover, LED strip and end caps
Installation instructions for the inFLEXA recessed profile with a BASIC cover

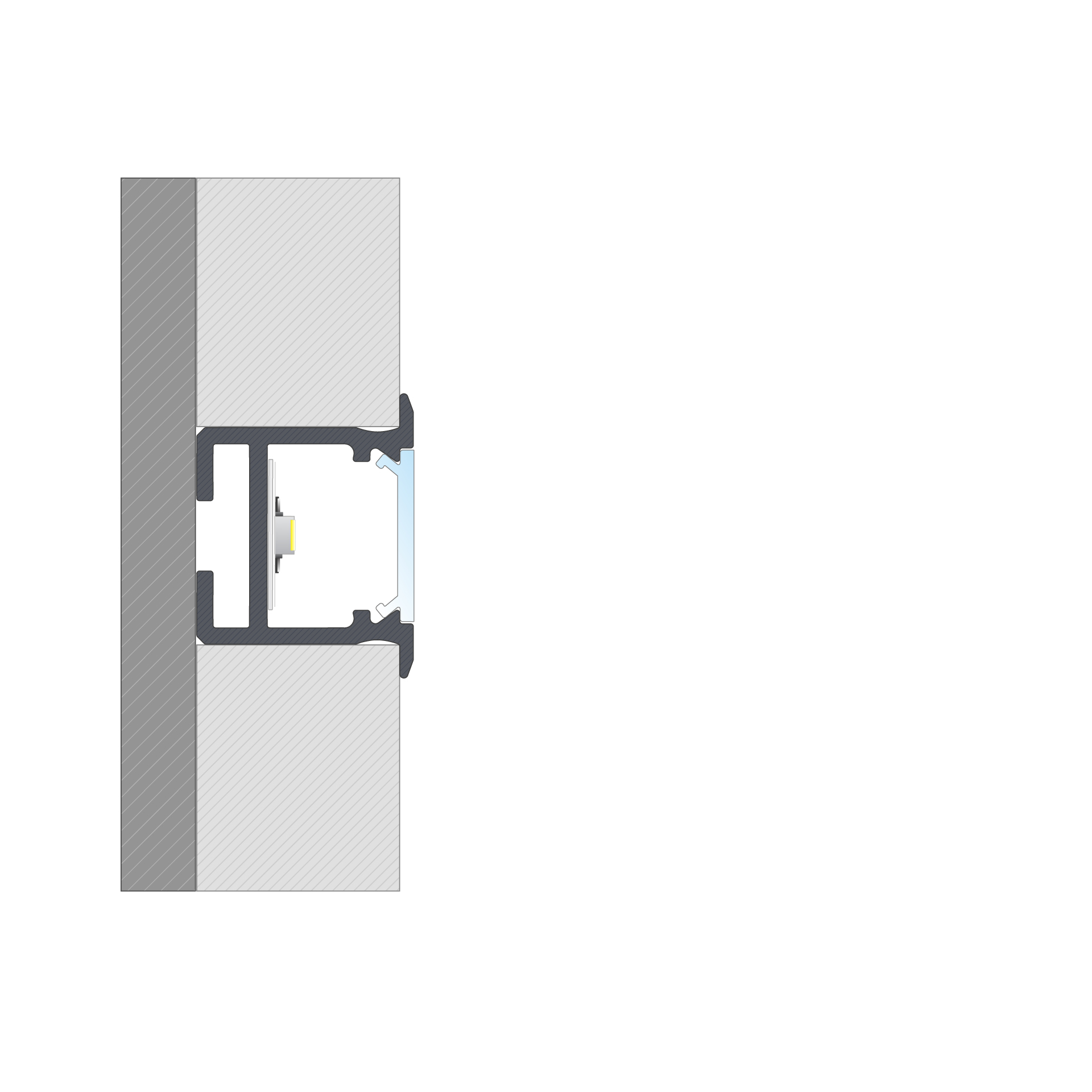

The end result of installing the inFLEXA recessed profile with a BASIC cover
