10-0115-20
EAN: 5907775758776
Lumines profile type ILEDO lacquered black, 2 m
Your price:
Please contact your local distributor
| Stock status: | a lot |
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 2m |
| Color | Black (lacquered) |
| System | ILEDO |

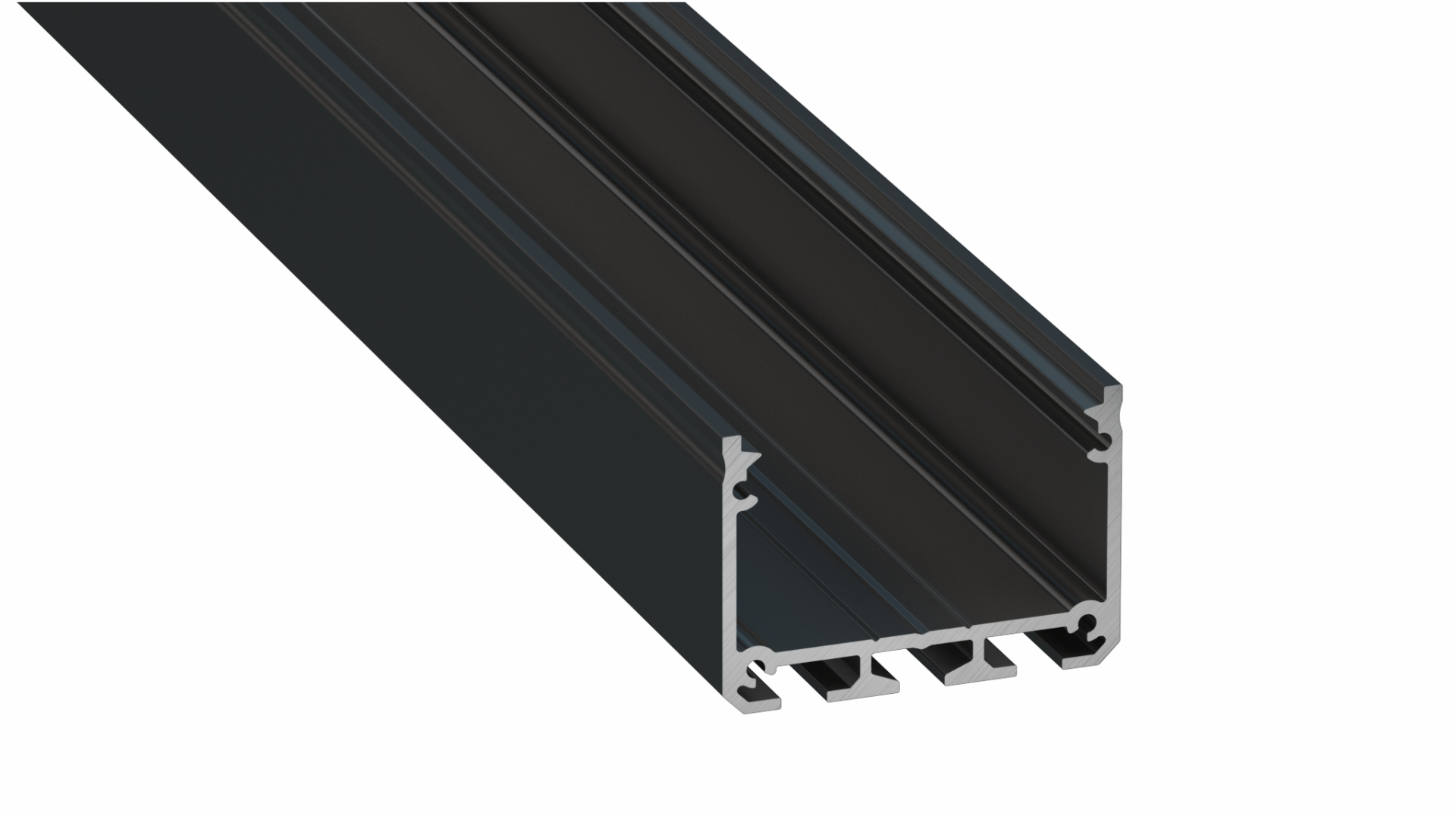

Profile Lumines iLEDO surface.
Color
Silver (anodized)
White (lacquered)
Black (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

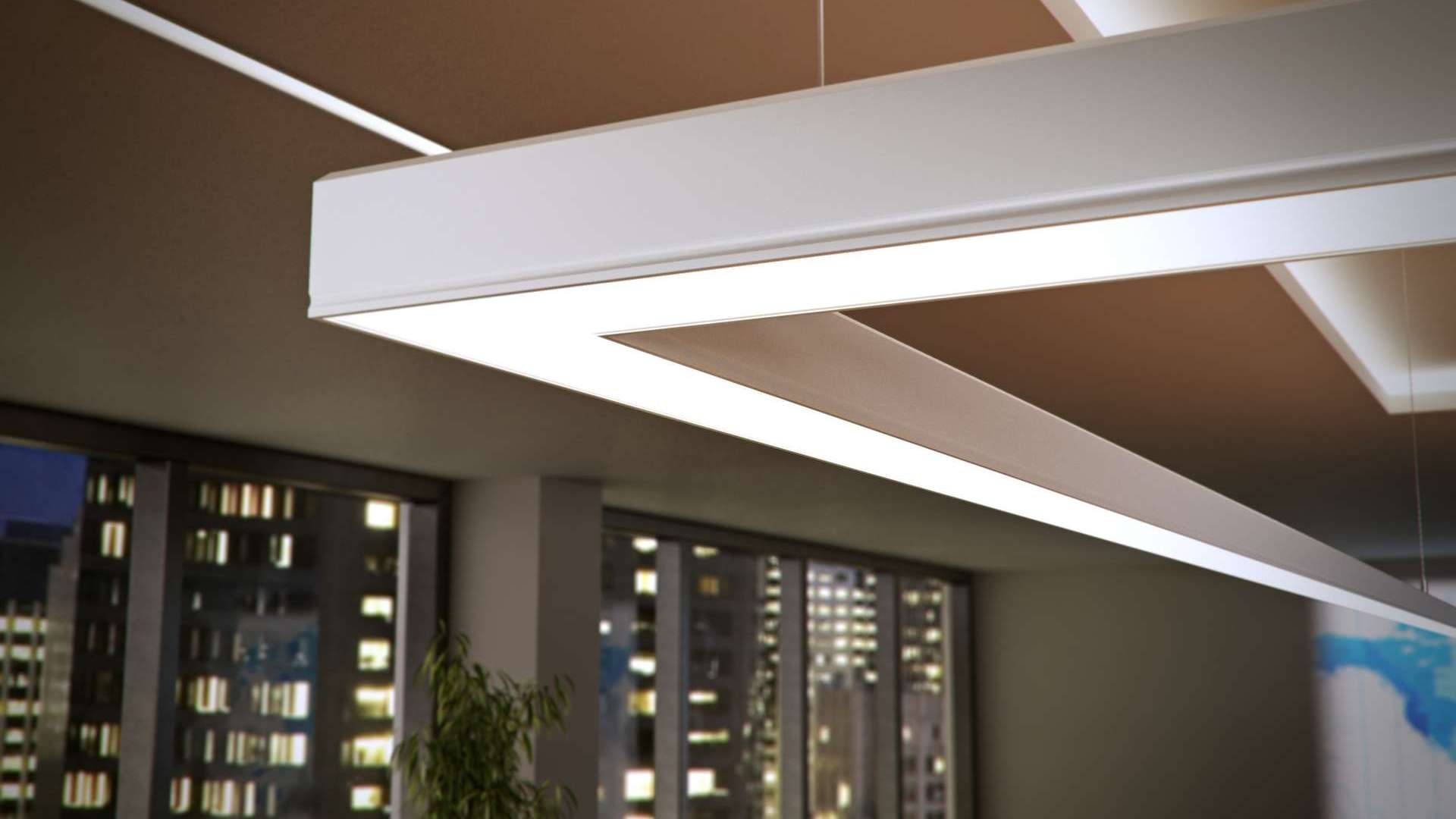

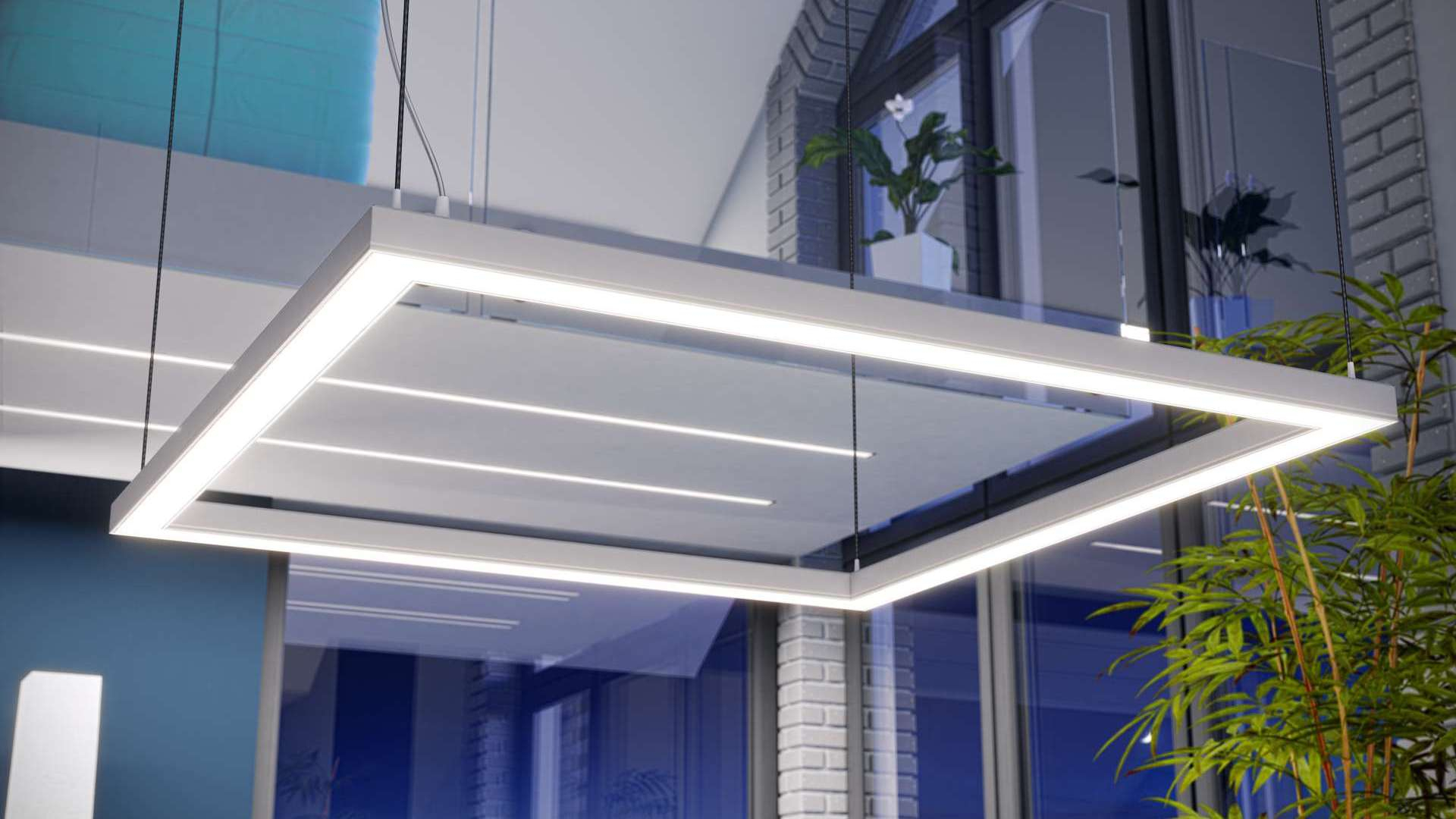

Lumines ILEDO is a surface mounted profile for lighting in offices, stores and homes. Perfect for hanging, architectural lighting.
Variety of colors:
- anodized silver
- lacquered white (RAL9016),
- lacquered black (RAL9005 mat)
Mounting:
two-sided adhesive tape,
mounting screws,
mounting springs,
pendants,
mounting clip
COVER (diffusers):
- WIDE
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* milky frosted (PMMA)
- PRISMATIC PC
* transparent (PC)
Mounted from the top, snap-on.
- LUMINES raster WIDE cover
END CAPS:
aluminium or plastic caps with or without a hole in 4 color variations (white, silver, gray, black)
OTHER ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
mounting springs,
pendants,
metal mounting clip ILEDO
Profile sold in lengths: 1000 mm, 2020 mm, 3000 mm.
Installation manual for ILEDO profile with WIDE cover, using mounting screw
End result of the assembly of ILEDO profile with WIDE cover, using mounting screw
Vertical connection of ILEDO profiles at 90 degrees angle
Horizontal connection of ILEDO profiles at 90 degrees angle
Possibility to hide the power supply inside of ILEDO profile using MODI mounting profile
Assembly scheme for elements of the lighting system using profile ILEDO and (1) WIDE cover, (2) three LED strips, (3) end cap without hole, (3a) end cap with hole, (4) mounting screw, (5) end caps mounting screws
