10-0450-20
EAN: 5902973363111
Lumines profile type H nonanodized, 2,02 m
Your price:
€11.32
gross
| Stock status: | average |
| Purpose | Furniture |
| Type of assembly | surface |
| Profile length | 2m |
| Color | Raw |
| System | H |
H-profile for surface application
Color
Silver (anodized)
Raw
Inox (anodized)
Black (anodized)
White (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Incorrect quantity in the roll
Product description

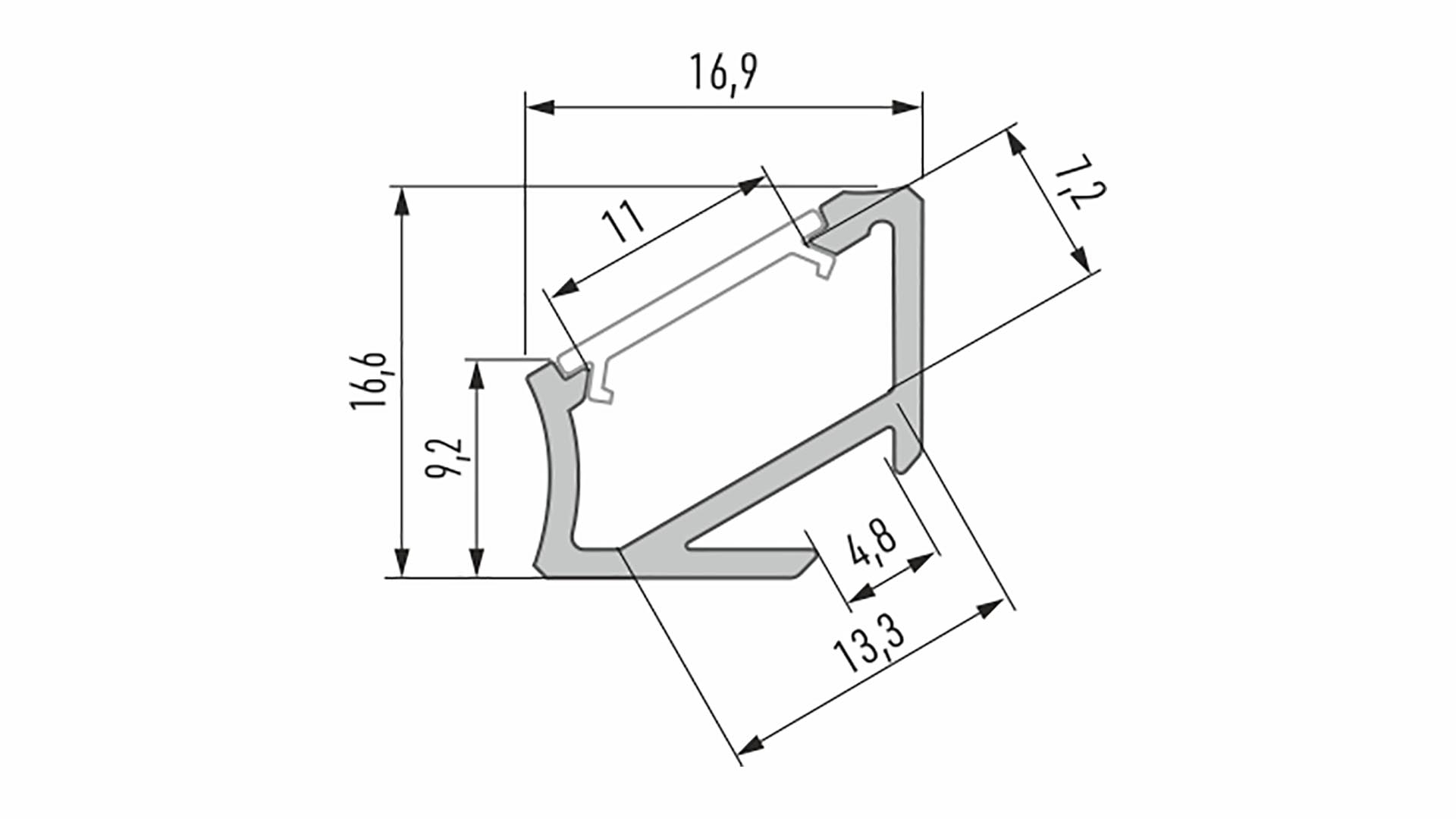

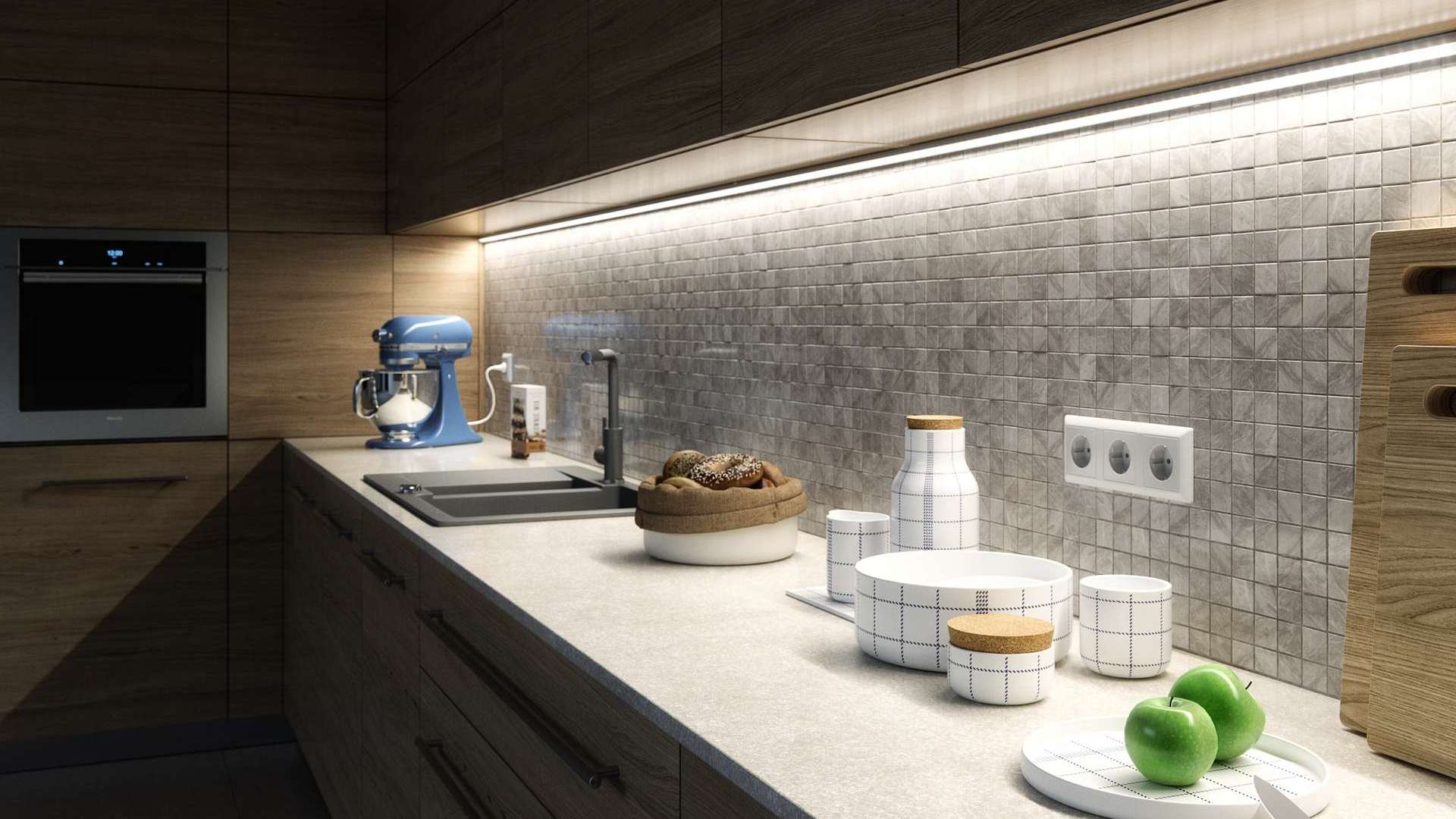

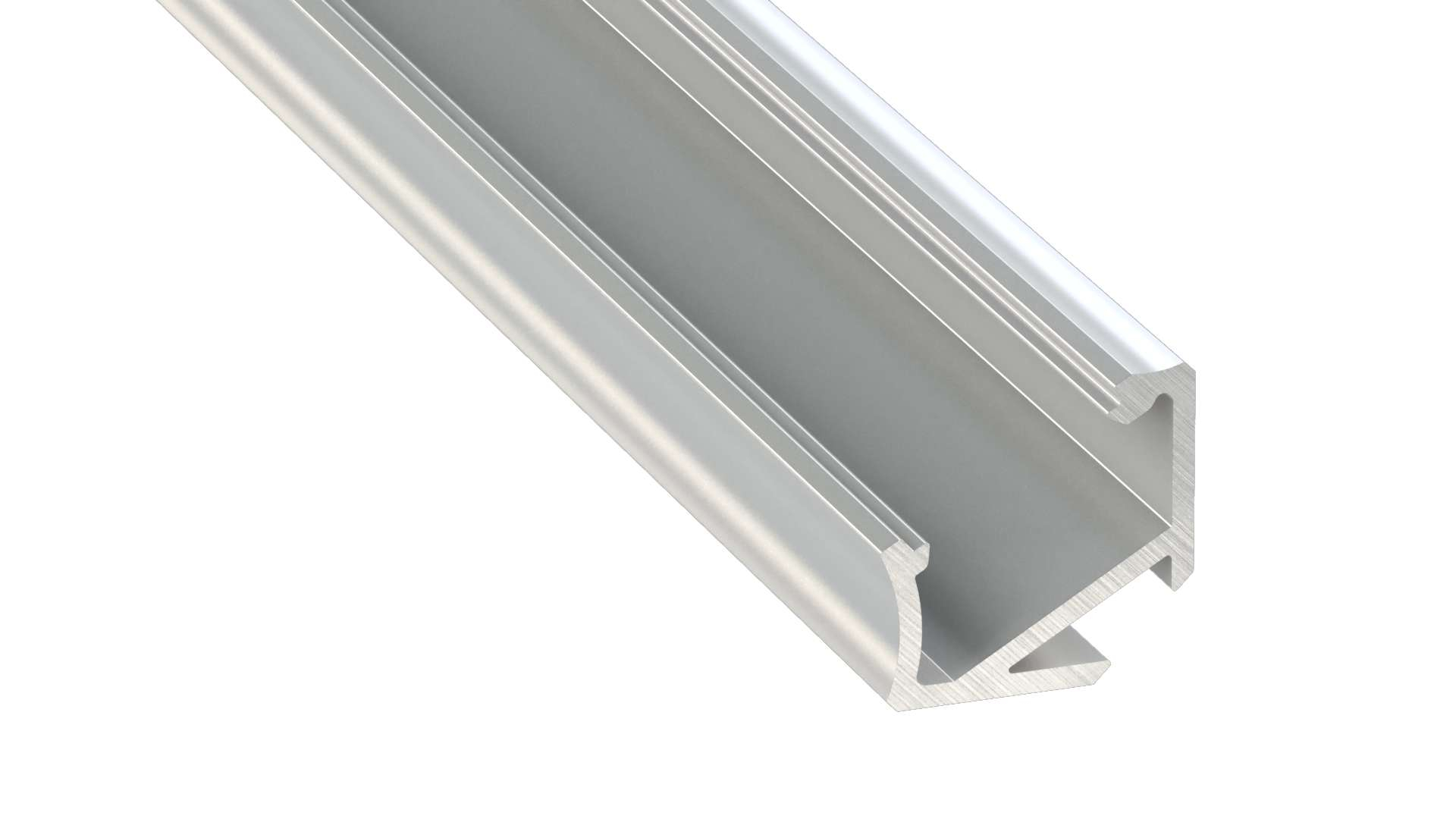

H profile is an aluminum profile angled surface 30/60. Lighting kitchens, bays cabinets, countertops. Asymmetrically constructed to apply different illumination angles.
Profile comes in five colors:
- nonanodized,
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)
Profile is available in standard lengths:1000 mm, 2020 mm, 3000 mm.
Mounting:
- double sided tape
- assembly adhesive
Accessories for Lumines profile H
Diffuser (covers):
- diffuser BASIC PVC - milk, frozen, transparent
- diffuser BASIC PMMA - transparent, frozen, milky, milky frosted, lens 15, lens 30, black
- diffuser BASIC PC - milk, frozen, transparent
(mounted from push-up)
PLUGS:
Aluminium caps with or without a hole in 2 color variations (black, silver).
Available in a variant with a hole and without hole.
Plastic caps with push-hole in 4 color variations (white, black, inox, silver)
HANDLES:
CH handle
CH metal handle
CH handle angle
OTHER ACCESSORIES:
hinge,
contactless switch,
pendants
Installation Instructions profile H of the diffuser BASIC double sided tape Installation
Instructions profile H 60 ° and 30 ° with diffuser BASIC with (1) the mounting bracket CH of plastic (2) of the metal mounting bracket CH
Scheme assembly elements of the lighting system using the profile of H and (1) BASIC lens (2) LED strip (3) with an opening trasowanym caps (4) of metal mounting brackets CH
