10-1124-10

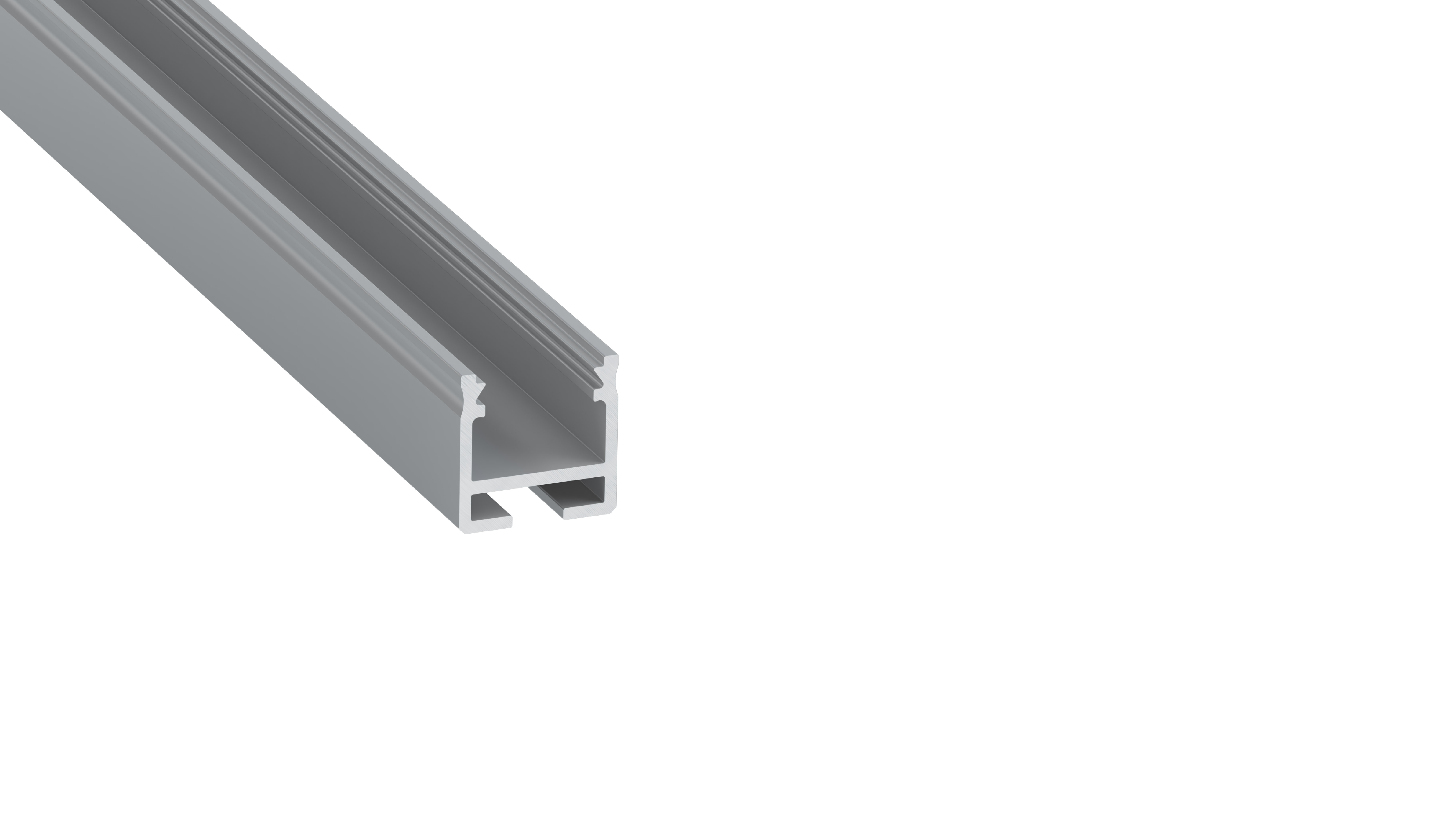

Lumines profile type FLEXA anodized silver, 1 m
Your price:
Please contact your local distributor
| Stock status: | a lot |
| Purpose | Architectural |
| Type of assembly | surface |
| Profile length | 1m |
| Color | Silver (anodized) |
| System | FLEXA |
Color
White (lacquered)
Black (lacquered)
Silver (anodized)
Raw
Available variants:
Purpose
Type of assembly
Profile length
System
Responsible entity: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
A specialized LED profile for surface mounting, designed for bending in both planes. It allows for the creation of continuous, curved lines of light, precisely matched to the geometry of architectural forms, without degrading the mechanical, optical, or aesthetic parameters of the luminaire. The system provides for the use of connectors and suspended mounting, which ensures high configuration flexibility and easy integration with various types of spaces.
Table of minimum bending radius for LUMINES profiles
| Type of bending | Lighting direction (position of the cover in the fixture) | FLEX cover | PMMA/PC cover |
| horizontal (transverse) | down | 475 | — |
| vertical | inward | 360 | 360 |
| vertical | outward | 175 | 250 |
Minimum bending radius (mm) for the given cover. Max. circle diameter: 1850 mm (from a 6 m profile).
Tolerance: +/- 5%. Production end allowances: 250 mm. Bent profiles are available only in a lacquered finish.
Bending service available upon prior contact with customer service.
Horizontal bending
FLEXA profile with a BASIC FLEX cover

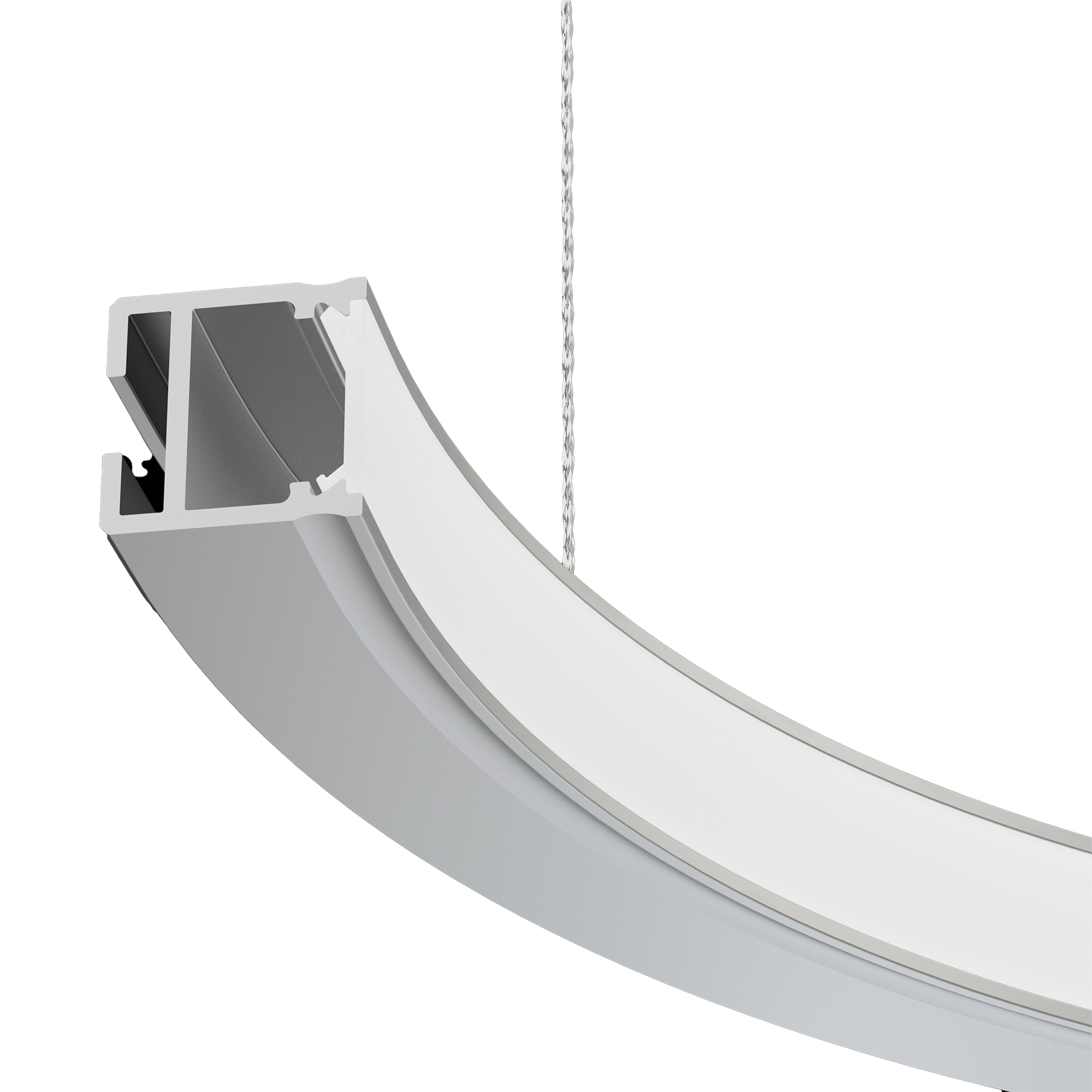

Vertical bending
FLEXA profile with a BASIC cover
Light direction: outside

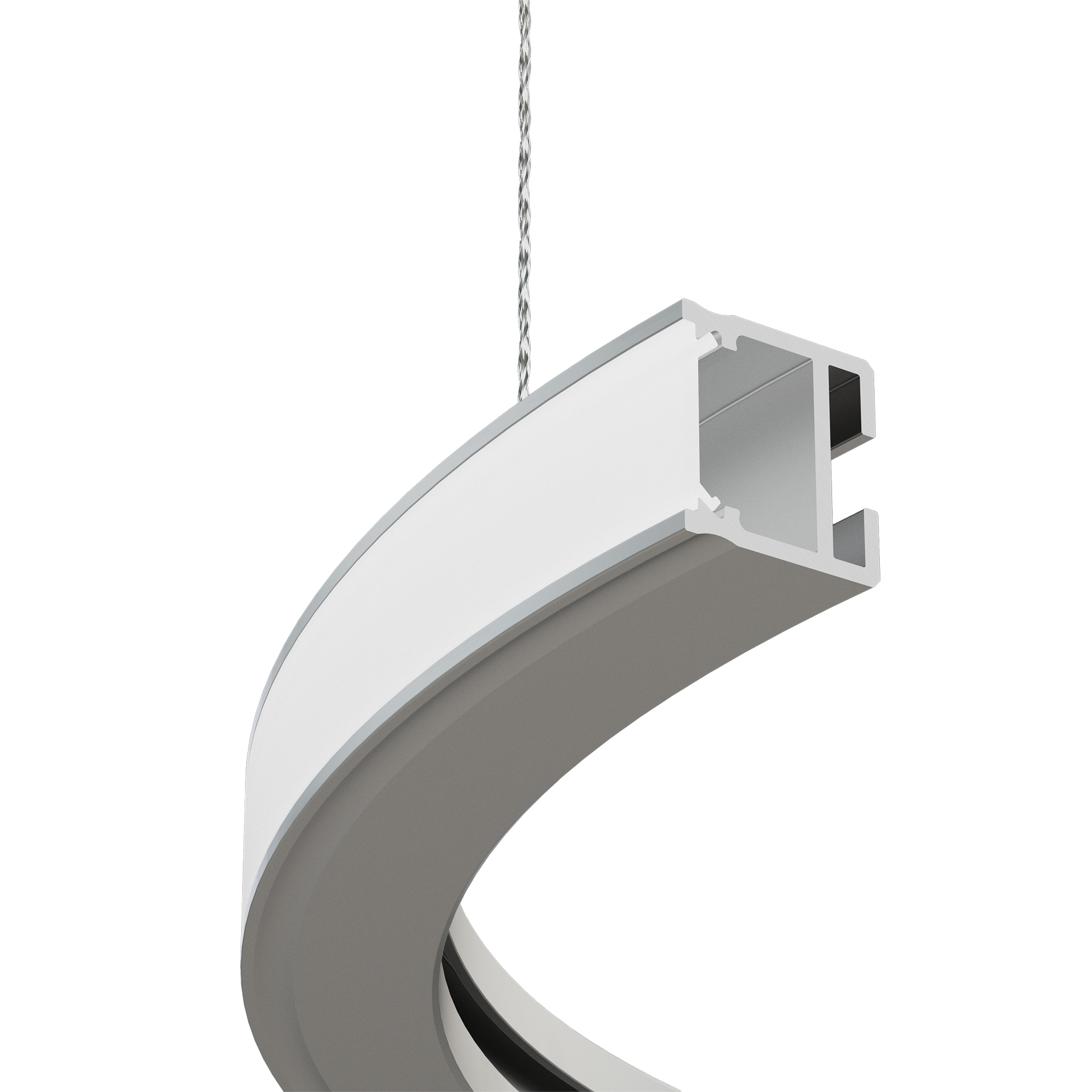

Vertical bending
FLEXA profile with a BASIC cover
Light direction: inside
Comparison of the horizontally bendingFLEXA profile with the vertically bending FLEXA profile (light direction: inside)

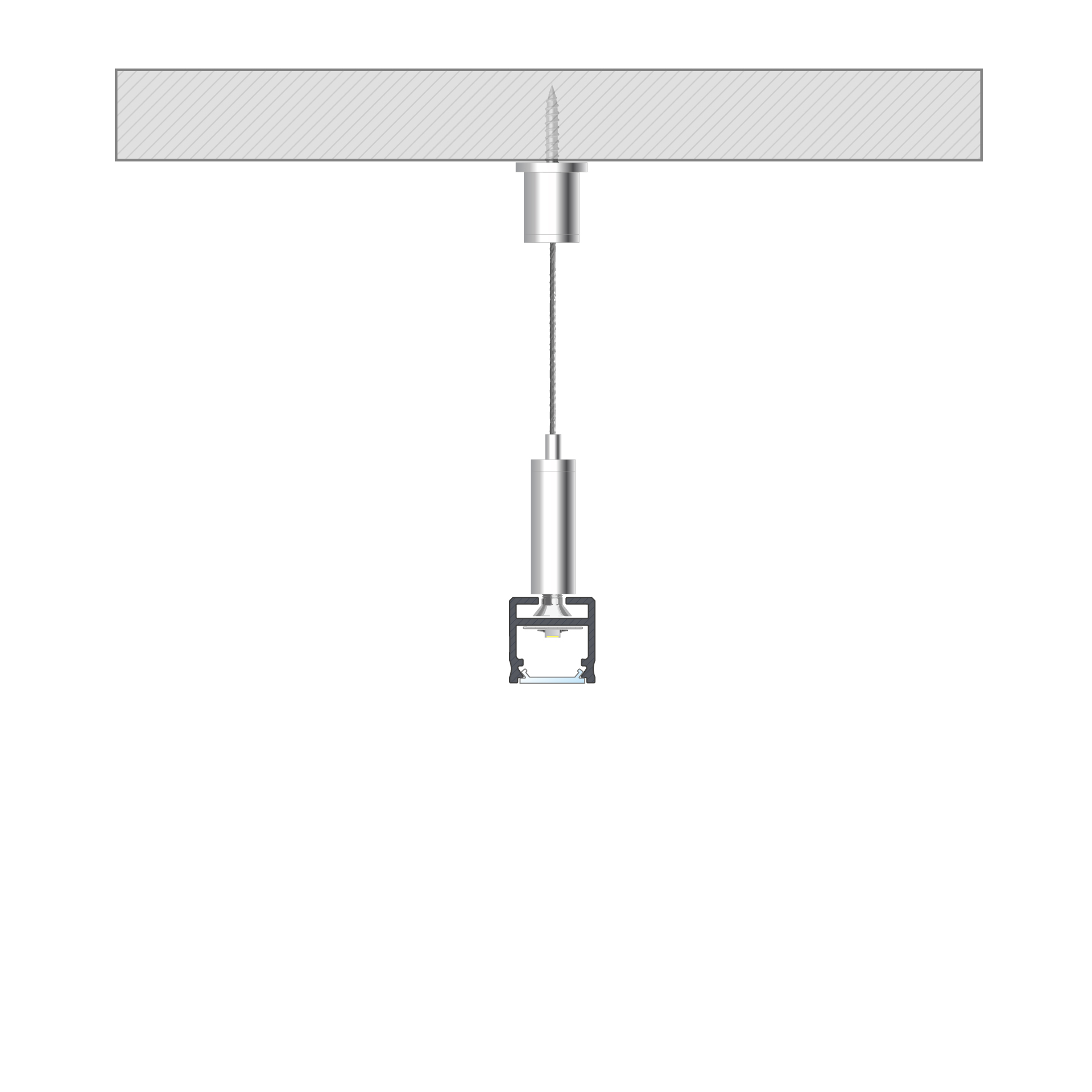

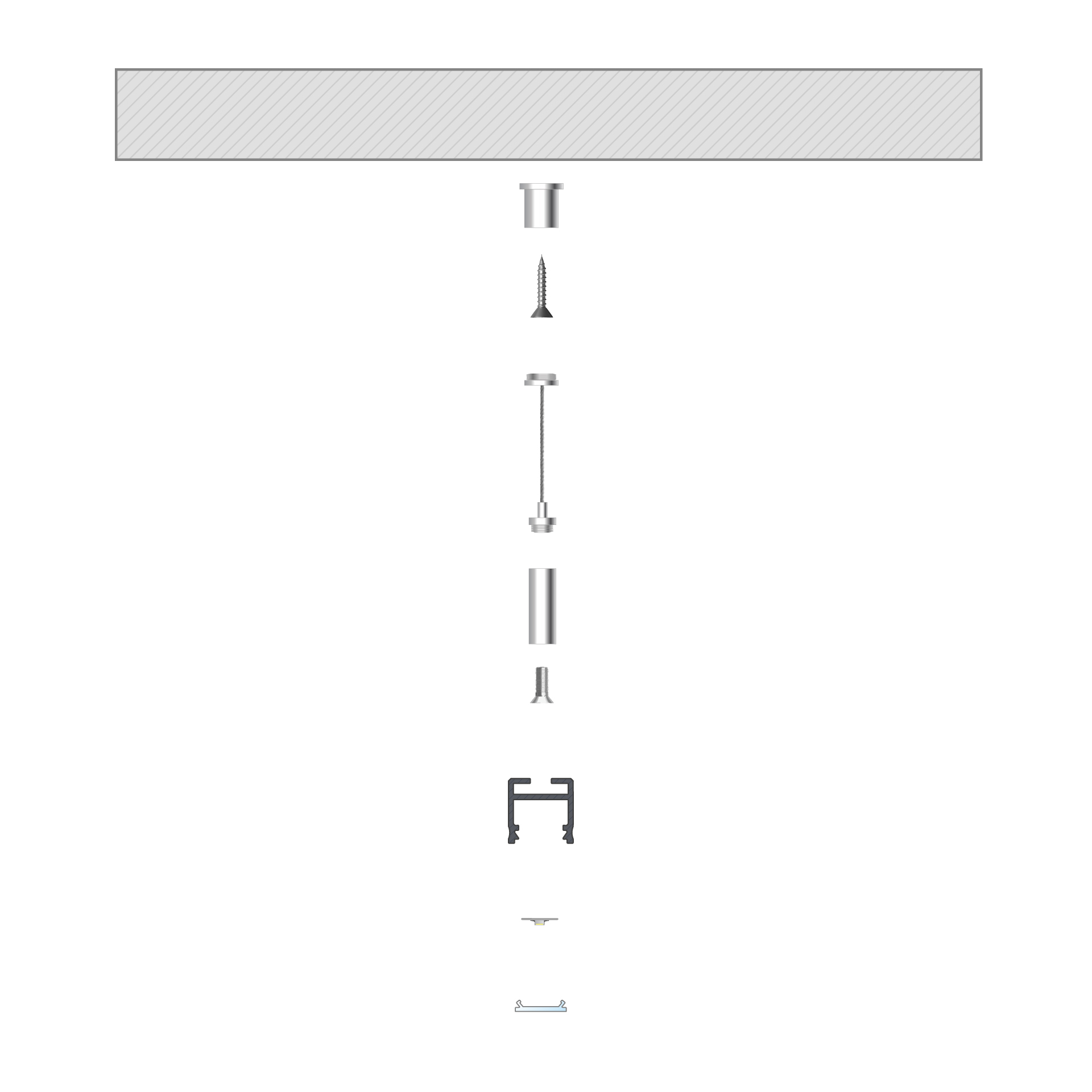

Instructions for installing the FLEXA profile with a BASIC cover using suspensions

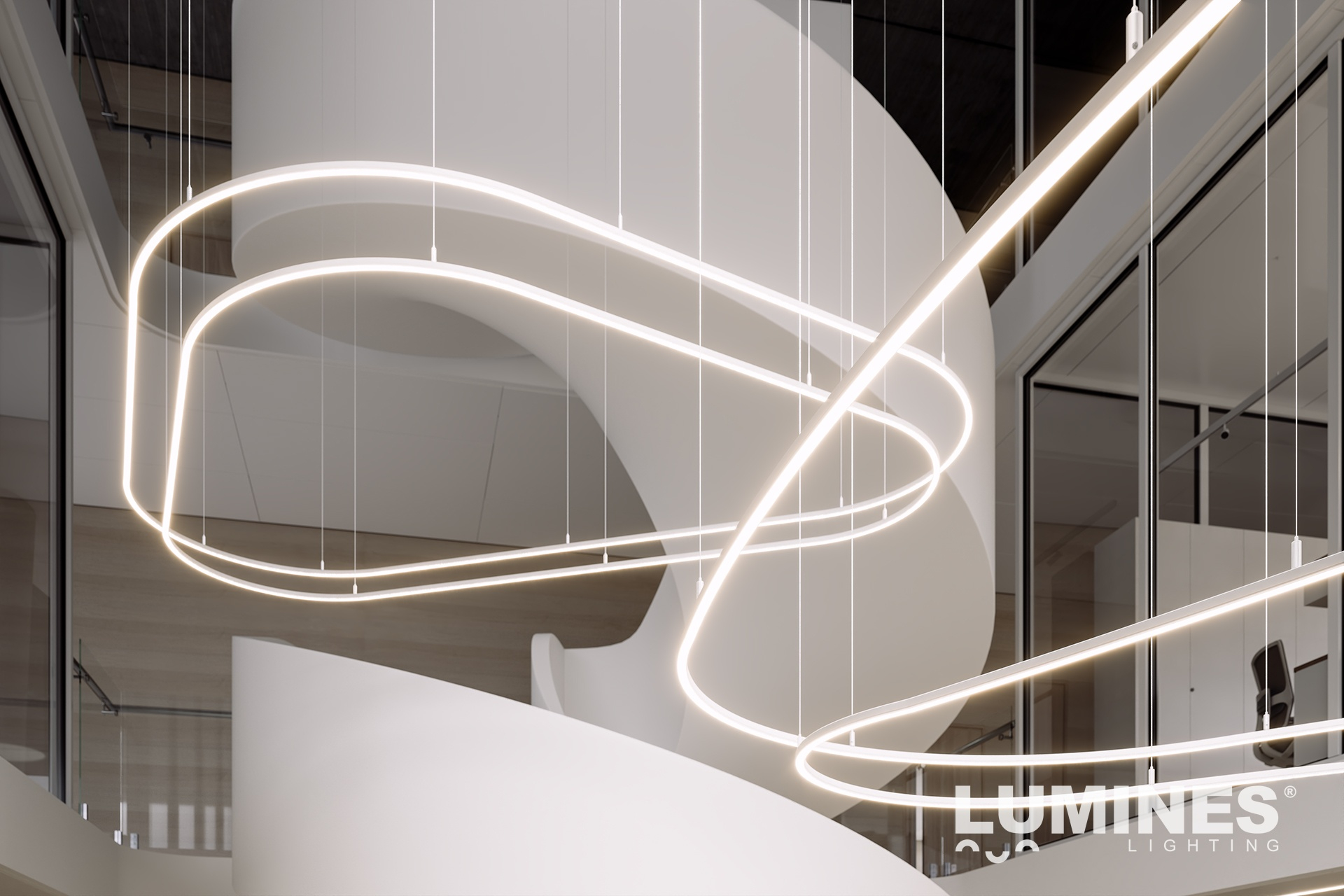

The end result of installing the FLEXA profile with a BASIC cover using suspensions.

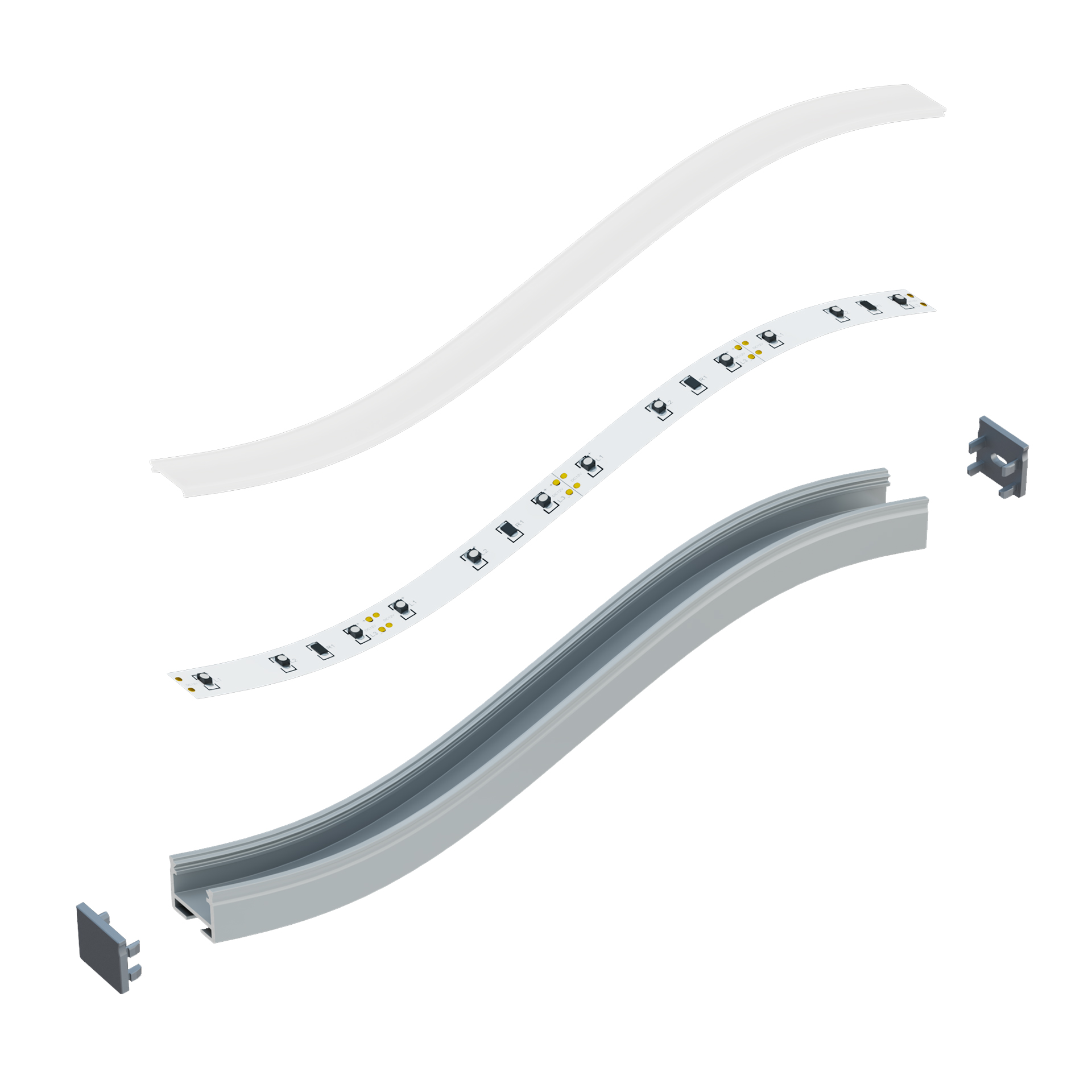

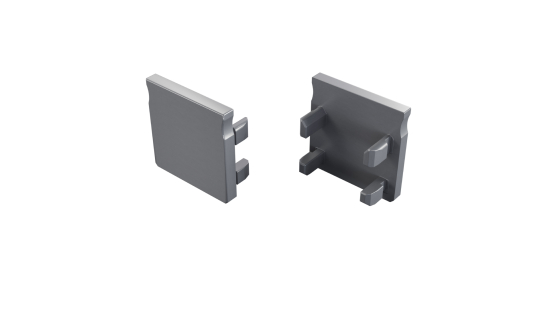

Assembly diagram of the Lighting system elements using the FLEXA profile, BASIC FLEX cover, LED strips and end caps
