10-0172-20
EAN: 5902973362169

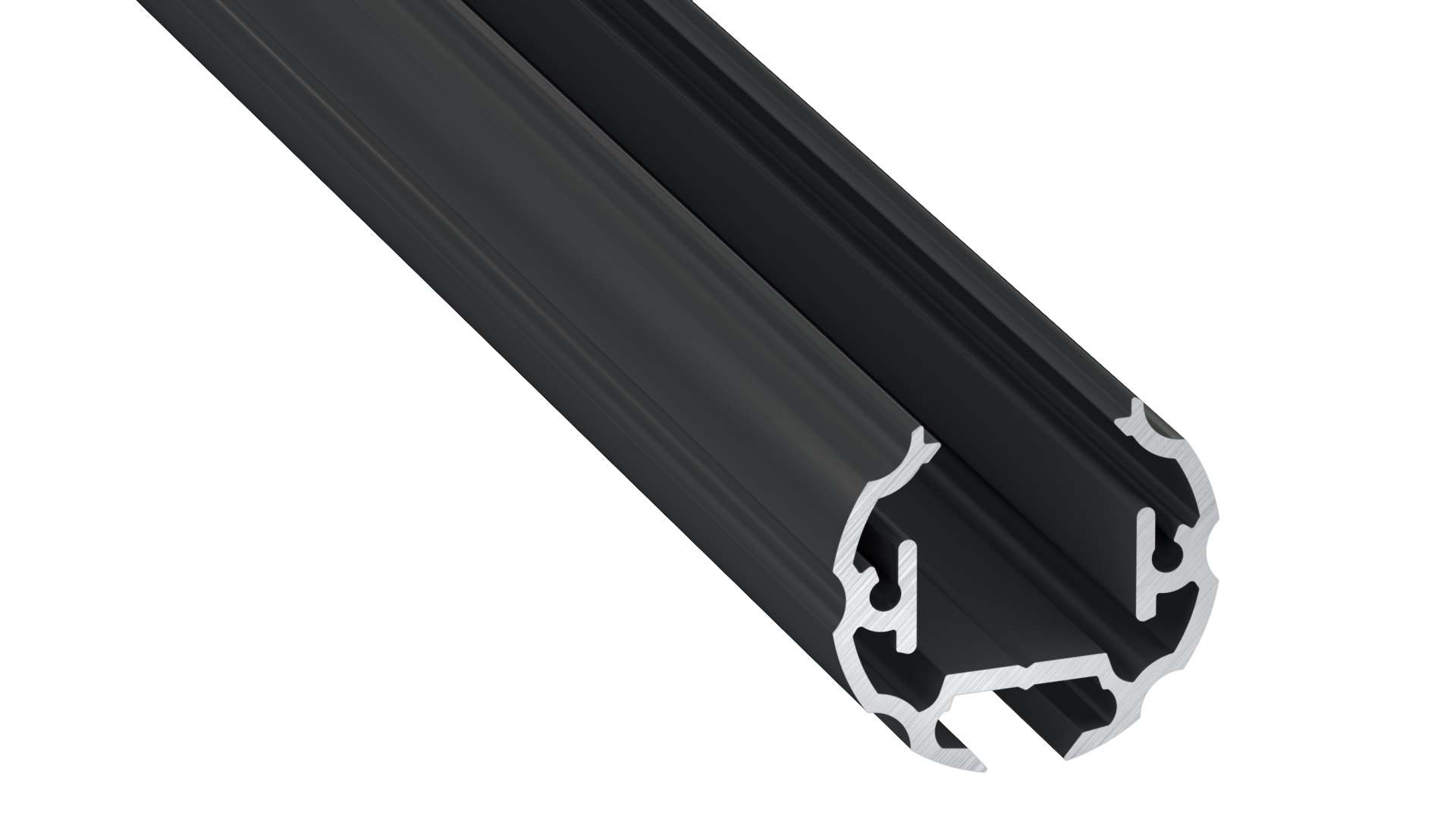

Lumines profile type Cosmo anodized black, 2,02 m
Your price:
Please contact your local distributor
| Stock status: | average |
| Purpose | Furniture |
| Type of assembly | surface |
| Profile length | 2m |
| Color | Black (anodized) |
| System | COSMO |
Lumines profile type COSMO round
Color
Silver (anodized)
Raw
Inox (anodized)
Black (anodized)
White (lacquered)
Available variants:
Purpose
Type of assembly
Profile length
System
Product sold only as a complete set
Product description

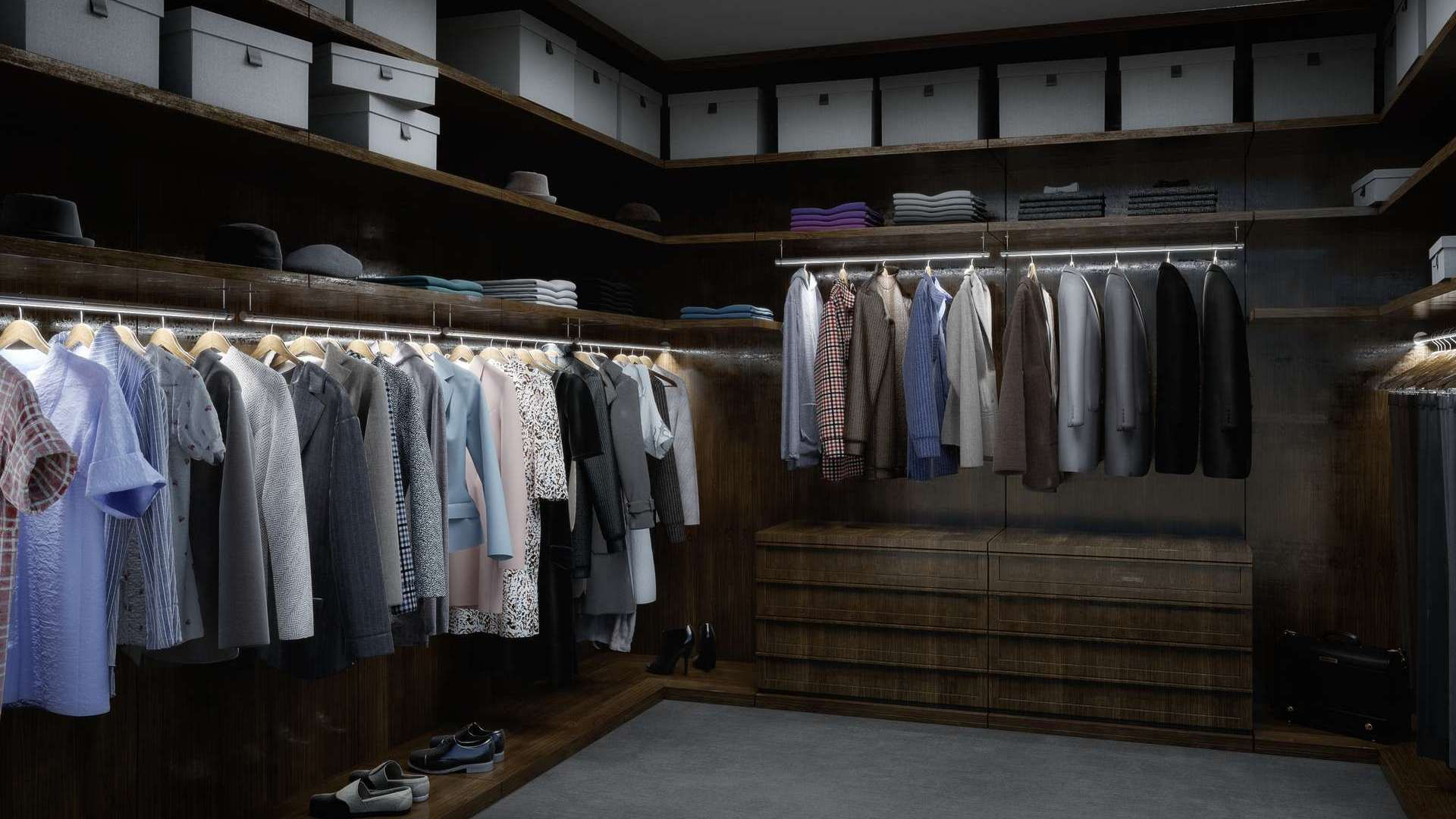

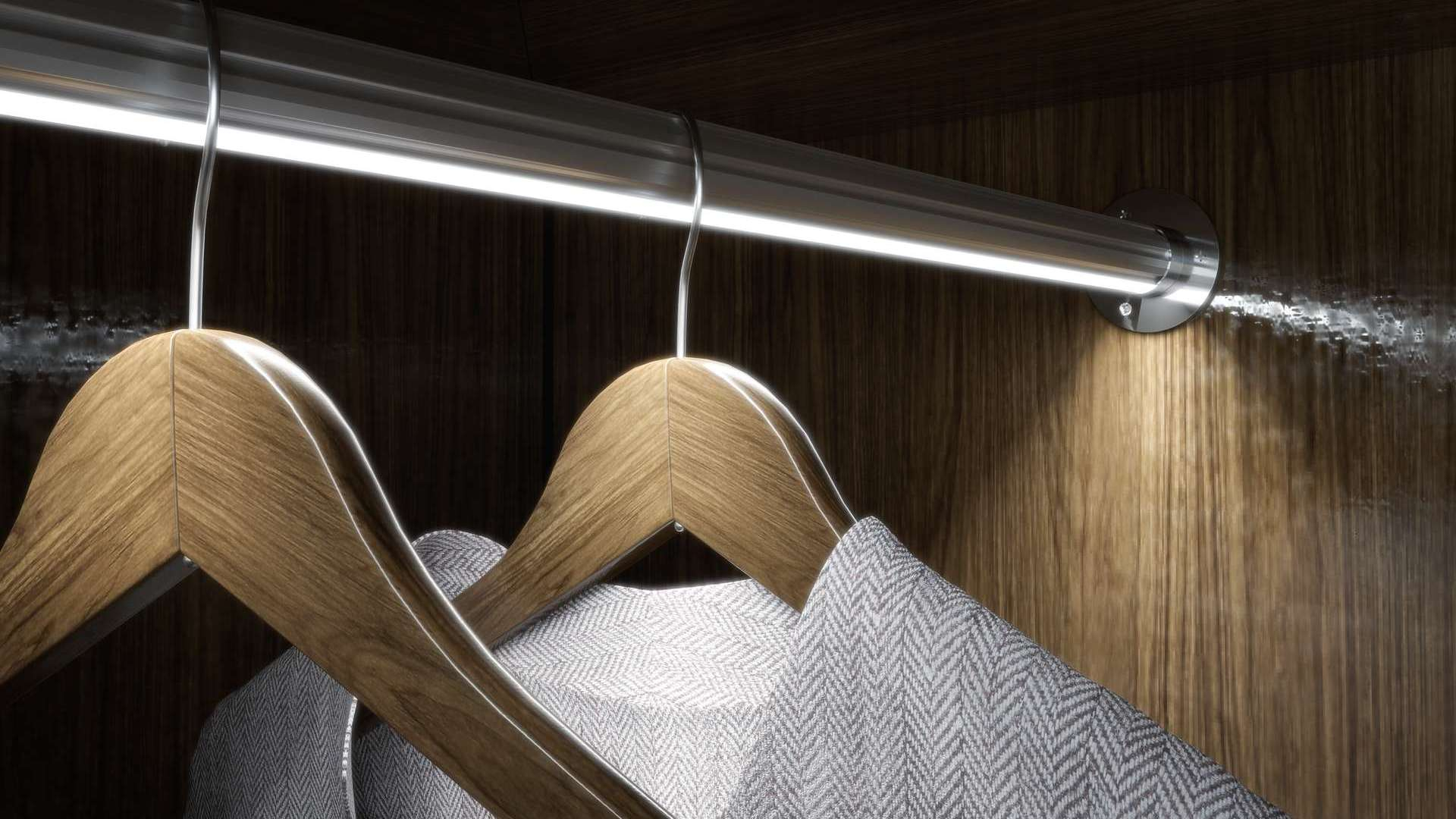

Profile COSMO to round aluminum profile, adjustable, for interior lighting cabinets, replacing the basic construction of the rod. For decorative lighting and spot.
Color variations:
- nonanodized,
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)
Profile is available in standard lengths:
1000 mm, 2020 mm, 3000 mm.
Mounting:
- using the mounting bracket
- using an articulated system
Accessories for Lumines COSMO profile
Diffuser (covers):
- diffuser BASIC PMMA - transparent, frozen, milky, milky frosted, lens 15, lens 30, black
- diffuser BASIC PC - milk, frozen, transparent
(mounted from push-up)
PLUGS:
aluminium caps with or without a hole in 2 color variations (black, silver),
plastic caps with push-hole in 5 colors variations (white, black, inox, silver, gray),
aluminium adjustment caps with or without a hole in 2 color variations (black, silver),
aluminium adjusting ring in 2 color variations (black, silver)
EXTRAS:
hinge joint base,
female hinge joint,
male hinge joint,
hinge,
knurled screw,
basic, high and low collars,
angular connector 120°,
angular connector 90°,
straight connector
Installation Instructions circular profile with COSMO (1) BASIC diffuser (2) BASIC LENS diffuser 30 by the profile of the auxiliary COSMO M1 and the mounting bracket metal COSMO
Example of use of the auxiliary profile COSMO M1 changing viewing angle of LED strip
Example, changes in the position of 45 ° COSMO profile using a metal mounting bracket COSMO
Submission of COSMO profile with diffuser 30 BASIC LENS, handles, plugs and adjusting ring
Scheme assembly elements of the lighting system using the profile of a circular COSMO and (1) lens BASIC LENS 30 (2) LED strip (3) of the profile COSMO M1 (4) plugs adjustment with an opening (4a) plug regulatory without the hole (5 ) rings regulatory (6a) of the female joint (6b) of the male joint (6c) of a knurled screw (7) stands
