Unfortunately, the following products are missing: meters
* LED Strips P65, IP67HS, and IP67 sold in 5m, 20m and 25m rolls
* LED Neon Flex sold in 5m rolls
16-2306-01
EAN: 5904405902264

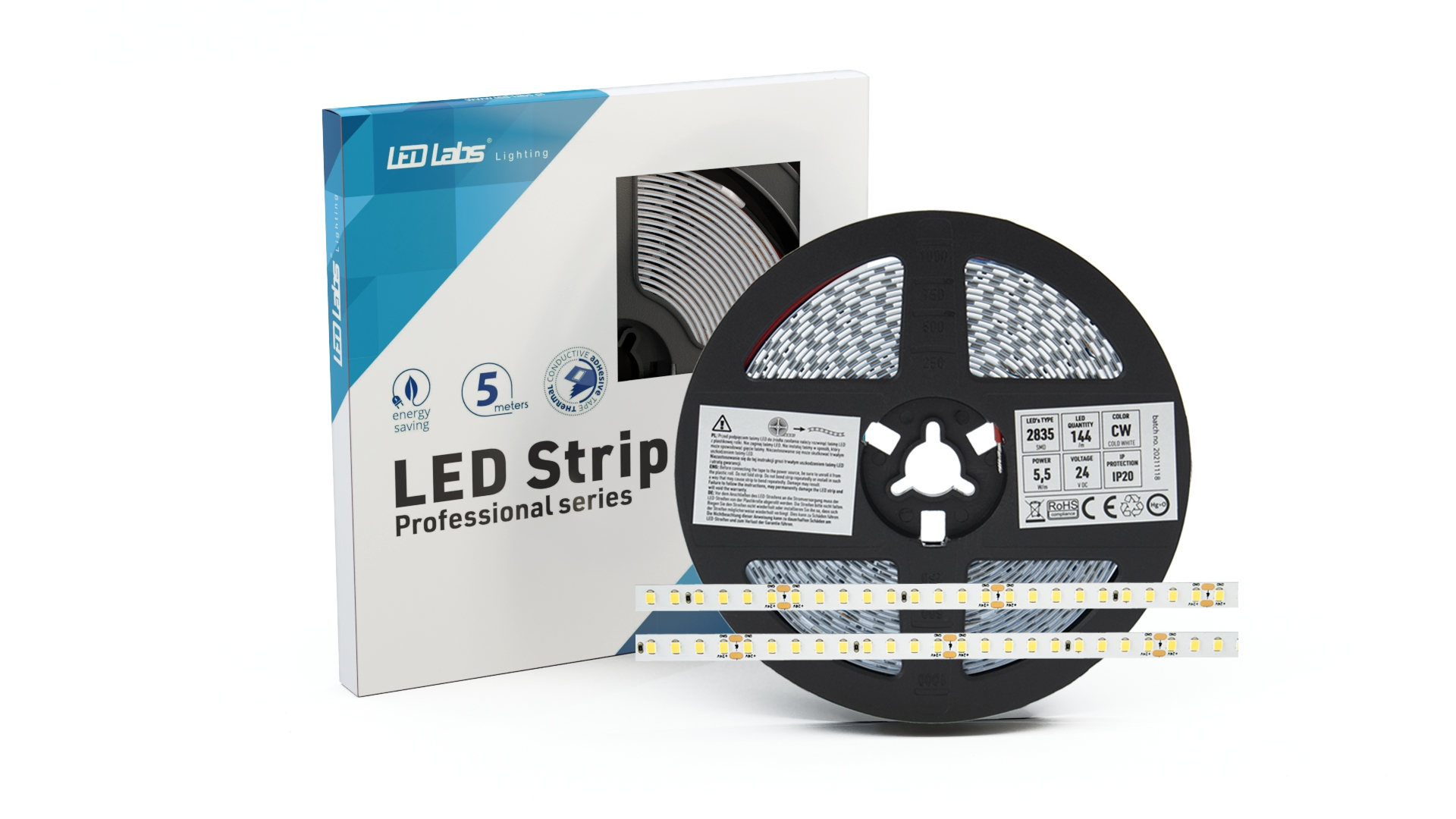

LED Strip PRO 3Y 24V 720 LED 2835 SMD 5.5W CW 180lm/W
Your price:
Please contact your local distributor
Price per 1 metre
| Stock status: | little |
| Degree of protection | IP20 |
| Number of LEDs | 720 LED |
| Type Diodes | SMD 2835 |
| Warranty | 5 years |
| Type of light source | One-color |
| Hue | Cold White |
| Color Temperature | 6500K |
| Voltage | 24V |
| Power | 5,5W/m |
| PCB width | 10mm |
| Cutting section | 62,5mm |
| Lifetime | 35000 |
| Roll length | 5m |
Available variants:
Degree of protection
Number of LEDs
Type Diodes
Warranty
Type of light source
Hue
Color Temperature
Voltage
Power
PCB width
Cutting section
Lifetime
Roll length
Producer: LED Labs S.A., ul. Zakopiańska 2C, 30-418 Kraków, Polska | Contact: info@led-labs.pl
Product sold only as a complete set
Product description
The 3Y series of LED strips are strips with an extended warranty period. For tapes with protection class IP65 and IP65HS, the warranty period is 3 years, for IP20 tapes, it is a 5-year warranty! Additionally, 3Y series tapes are characterized by lower voltage drops thanks to the PCB backing used with 3oz copper. The tapes have double-sided Blue Tape mounting tape.
Cold white
The light of the cold white tape introduces a glow similar to blue. The cold color stimulates the body to work and is a good solution in places where concentration is required. It can be used in doctor's offices, supermarkets or as illuminated advertisements.
IP20 LED strip
LED strips with IP20 protection class are covered with a thin protective layer, which protects them against small pollutants. However, they do not have any additional protection, therefore they are not recommended in applications where increased resistance to moisture is required.
24V LED strips – lower voltage drops
24V LED strips are an increasingly popular choice among professionals designing LED lighting systems. Thanks to the use of increased voltage, the LED strip allows the use of longer sections without the risk of voltage drops, which manifest themselves in asymmetrical light intensity over the entire section of the LED strip. Please remember that the choice of a 24V LED strip is related to the selection of the appropriate LED power supply.
See colors in their natural shades
The color rendering index CRI is a parameter that provides information about how the colors of illuminated objects are perceived. The parameter value ranges from 0 to 100, where the higher the value, the better the real colors of objects are reproduced. A value of 100 means that colors are perceived as if they were illuminated by daylight. Thanks to the high CRI value (80 Ra), food looks more appetizing and items on store shelves have real colors.
Requires installation of a power supply
Installation of an LED lighting system based on LED strips requires the installation of a power supply that allows you to reduce the mains voltage to 12 or 24V depending on the LED strips used. When designing LED lighting, it is worth remembering that the power supply is an integral part of the entire system, the efficient functioning of which is related not only to the selection of a professional LED strip, but also a reliable LED power supply. Power supplies are installed in invisible, often hard-to-reach places, so it is very important that when choosing an LED power supply, you make a choice that allows for many years of operation. The choice of power supply depends on the power of the LED strip, its voltage and installation length. It is also worth paying attention to the shape and size of the power supply to ensure the most convenient installation.
